Table 1

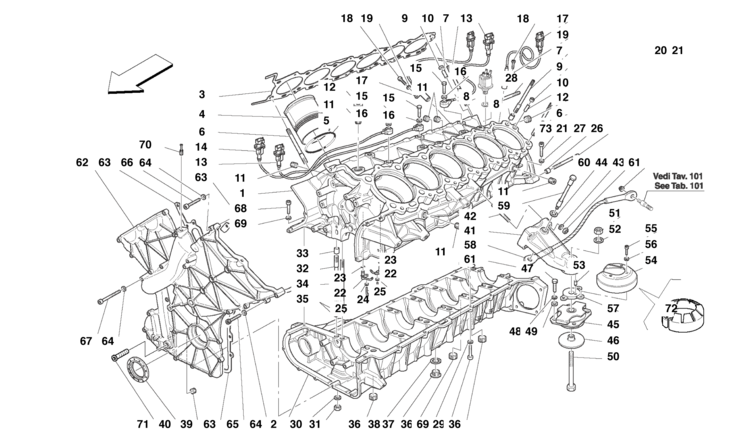

Table 1 - CRANKCASE

Ref.Part#Qty.DescriptionPrice
1980481
COMPLETE CRANKCASE

Part#: 198048 Qty: 1

11813391
ENGINE BASE-PLATE -Not as spare part- -With the complete crankcase-

Part#: 181339 Qty: 1

21866841
COMPLETE UNDERCRANKCASE -Not as spare part- -With the complete crankcase-

Part#: 186684 Qty: 1

31818321
R.H. GASKET

Part#: 181832 Qty: 1

31818331
L.H. GASKET

Part#: 181833 Qty: 1

418780612
CYLINDER LINER

Part#: 187806 Qty: 12

518625136
O.R. GASKET
$3.20

Part#: 186251 Qty: 36$3.20

618613414
STUD

Part#: 186134 Qty: 14

718613314
STUD
$9.30

Part#: 186133 Qty: 14$9.30

81853604
CENTERING DOWEL

Part#: 185360 Qty: 4

91953822
DOWEL

Part#: 195382 Qty: 2

101568622
NONRETURN VALVE
$23.52

Part#: 156862 Qty: 2$23.52

111944907
THREADED PLUG

Part#: 194490 Qty: 7

12102698504
THREADED PLUG
$1.37

Part#: 10269850 Qty: 4$1.37

131822664
SENSOR FOR FIRING -L= 400 mm-

Part#: 182266 Qty: 4

141877402
SENSOR FOR FIRING -L= 650 mm-
$245.00

Part#: 187740 Qty: 2$245.00

15160438346
SCREW
$0.35

Part#: 16043834 Qty: 6$0.35

16111980746
WASHER
$0.39

Part#: 11198074 Qty: 6$0.39

171821942
ANGOLAR SPEED SENSOR
$113.45

Part#: 182194 Qty: 2$113.45

18143057242
SCREW
$0.75

Part#: 14305724 Qty: 2$0.75

19111977742
WASHER
$0.49

Part#: 11197774 Qty: 2$0.49

20143058242
SCREW

Part#: 14305824 Qty: 2

21111977742
WASHER
$0.49

Part#: 11197774 Qty: 2$0.49

2218297312
PISTONS COOLING NOZZLE

Part#: 182973 Qty: 12

2316487712
O.R. GASKET

Part#: 164877 Qty: 12

241430292112
SCREW

Part#: 14302921 Qty: 12

251118147412
WASHER

Part#: 11181474 Qty: 12

26135469342
STUD

Part#: 13546934 Qty: 2

271000522
CENTERING DOWEL

Part#: 100052 Qty: 2

28135467345
STUD

Part#: 13546734 Qty: 5

291430542412
SCREW -L= 25 mm-
$2.17

Part#: 14305424 Qty: 12$2.17

29143053241
SCREW -L= 20 mm-

Part#: 14305324 Qty: 1

3017834828
WASHER

Part#: 178348 Qty: 28

3113398828
NUT

Part#: 133988 Qty: 28

3218508414
STUD

Part#: 185084 Qty: 14

3317642114
CENTERING DOWEL

Part#: 176421 Qty: 14

3419042614
STUD

Part#: 190426 Qty: 14

3513470428
O.R. GASKET
$1.29

Part#: 134704 Qty: 28$1.29

36102698503
THREADED PLUG
$1.37

Part#: 10269850 Qty: 3$1.37

371042801
OIL OUTLET PLUG
$9.25

Part#: 104280 Qty: 1$9.25

38102634601
GASKET -Not as spare part- -Replaced by 10261860-
$1.00

Part#: 10263460 Qty: 1$1.00

38102618601
GASKET
$1.00

Part#: 10261860 Qty: 1$1.00

391944901
THREADED PLUG

Part#: 194490 Qty: 1

401887171
GASKET
$42.18

Part#: 188717 Qty: 1$42.18

411863072
ENGINE FIXING SUPPORT

Part#: 186307 Qty: 2

42135466248
STUD
$0.81

Part#: 13546624 Qty: 8$0.81

431339888
NUT

Part#: 133988 Qty: 8

44111905748
WASHER

Part#: 11190574 Qty: 8

451902552
FLEXIBLE PAD
$336.57

Part#: 190255 Qty: 2$336.57

461821412
RETAINING WASHER -Valid till engine Nr. 77489- -Not as spare part- -Replaced by 204086-
$62.68

Part#: 182141 Qty: 2$62.68

462040862
RETAINING WASHER -Valid from engine Nr. 77490- -Replaces 182141-
$38.52

Part#: 204086 Qty: 2$38.52

47159706348
SCREW
$3.25

Part#: 15970634 Qty: 8$3.25

481274978
WASHER
$0.25

Part#: 127497 Qty: 8$0.25

49135504248
WASHER

Part#: 13550424 Qty: 8

50158643342
SCREW

Part#: 15864334 Qty: 2

511765732
NUT
$2.49

Part#: 176573 Qty: 2$2.49

52126017742
WASHER
$0.98

Part#: 12601774 Qty: 2$0.98

531257162
CENTERING DOWEL

Part#: 125716 Qty: 2

541898192
SHIELD

Part#: 189819 Qty: 2

55143050246
SCREW

Part#: 14305024 Qty: 6

56126042746
WASHER
$0.30

Part#: 12604274 Qty: 6$0.30

571888532
SPACER FOR SHIELD

Part#: 188853 Qty: 2

581914302
ENGINE HOLDING CABLE -Not as spare part now- -Replaced by 201868 and 201869-

Part#: 191430 Qty: 2

582018681
R.H. ENGINE HOLDING CABLE

Part#: 201868 Qty: 1

582018691
L.H. ENGINE HOLDING CABLE

Part#: 201869 Qty: 1

591938492
SCREW

Part#: 193849 Qty: 2

60105232252
WASHER

Part#: 10523225 Qty: 2

611332164
NUT
$10.42

Part#: 133216 Qty: 4$10.42

621904861
FRONT COVER

Part#: 190486 Qty: 1

631904871
FRONT COVER GASKET

Part#: 190487 Qty: 1

641119777433
WASHER
$0.49

Part#: 11197774 Qty: 33$0.49

65143053242
SCREW -L= 20 mm-

Part#: 14305324 Qty: 2

651430542415
SCREW -L= 25 mm-
$2.17

Part#: 14305424 Qty: 15$2.17

66143055243
SCREW -L= 30 mm-
$0.12

Part#: 14305524 Qty: 3$0.12

66143056246
SCREW -L= 35 mm-
$0.50

Part#: 14305624 Qty: 6$0.50

67143058242
SCREW -L= 40 mm-

Part#: 14305824 Qty: 2

67143059241
SCREW -L= 45 mm-

Part#: 14305924 Qty: 1

671568284
SCREW -L= 50 mm-
$2.49

Part#: 156828 Qty: 4$2.49

68143053241
SCREW

Part#: 14305324 Qty: 1

691119777414
WASHER
$0.49

Part#: 11197774 Qty: 14$0.49

701550931
THREADED UNION

Part#: 155093 Qty: 1

711580251
THREADED UNION

Part#: 158025 Qty: 1

722069432
HEAT SHIELD

Part#: 206943 Qty: 2

731988711
STUD

Part#: 198871 Qty: 1
