Ferrari Philadelphia Parts

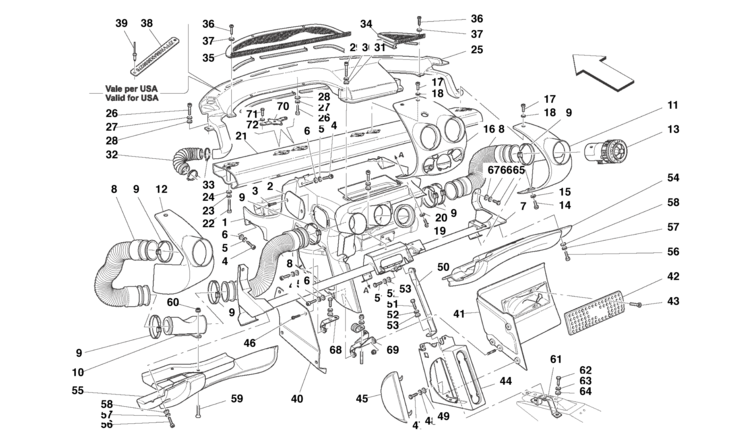

Table 117

Table 117 - DASHBOARD

Ref.Part#Qty.DescriptionPrice
1667561001
HEATER COVER

Part#: 66756100 Qty: 1

2667563001
COVER FOR INSPECTION

Part#: 66756300 Qty: 1

3132994772
SCREW

Part#: 13299477 Qty: 2

4161323245
SCREW

Part#: 16132324 Qty: 5

5126444245
WASHER
$0.50

Part#: 12644424 Qty: 5$0.50

6126204745
WASHER
$0.15

Part#: 12620474 Qty: 5$0.15

7665820001
DASHBOARD FRAMEWORK

Part#: 66582000 Qty: 1

8672084003
AIR OUTLET WRINKLED HOSE

Part#: 67208400 Qty: 3

91966557
CLAMP

Part#: 196655 Qty: 7

10675551001
SLEEVE

Part#: 67555100 Qty: 1

11668497001
R.H. SIDE SHIELD

Part#: 66849700 Qty: 1

12668498001
L.H. SIDE SHIELD

Part#: 66849800 Qty: 1

13673824004
DASHBOARD AIR DIFFUSER

Part#: 67382400 Qty: 4

14629409004
SCREW
$2.50

Part#: 62940900 Qty: 4$2.50

15126437784
WASHER
$0.30

Part#: 12643778 Qty: 4$0.30

16668499001
CENTRAL COVER

Part#: 66849900 Qty: 1

17672549004
SCREW

Part#: 67254900 Qty: 4

18126397244
WASHER
$0.50

Part#: 12639724 Qty: 4$0.50

19629409002
SCREW
$2.50

Part#: 62940900 Qty: 2$2.50

20126437782
WASHER
$0.30

Part#: 12643778 Qty: 2$0.30

21665775001
DASHBOARD CROSS MEMBER

Part#: 66577500 Qty: 1

22143055242
SCREW
$0.12

Part#: 14305524 Qty: 2$0.12

23126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

24126204742
WASHER
$0.15

Part#: 12620474 Qty: 2$0.15

25667520001
AIR DIFFUSER

Part#: 66752000 Qty: 1

26143052243
SCREW
$0.60

Part#: 14305224 Qty: 3$0.60

27126444773
WASHER

Part#: 12644477 Qty: 3

28126204743
WASHER
$0.15

Part#: 12620474 Qty: 3$0.15

29143054242
SCREW
$2.17

Part#: 14305424 Qty: 2$2.17

30126444242
WASHER
$0.50

Part#: 12644424 Qty: 2$0.50

31126204742
WASHER
$0.15

Part#: 12620474 Qty: 2$0.15

32672969002
WRINKLED HOSE

Part#: 67296900 Qty: 2

331055504
CLAMP

Part#: 105550 Qty: 4

34667625001
R.H. NET COVER

Part#: 66762500 Qty: 1

35667626001
L.H. NET COVER

Part#: 66762600 Qty: 1

36633434007
SCREW
$3.90

Part#: 63343400 Qty: 7$3.90

37126428787
WASHER
$0.17

Part#: 12642878 Qty: 7$0.17

38675079001
CAR ID NUMER PLATE -Valid for USA and CDN-

Part#: 67507900 Qty: 1

39146435902
RIVET -Valid for USA and CDN-

Part#: 14643590 Qty: 2

40667562001
ACCELERATOR SIDE COVER

Part#: 66756200 Qty: 1

41669548001
FOOT-REST FOR PASSENGER COVER

Part#: 66954800 Qty: 1

42661222001
COVER

Part#: 66122200 Qty: 1

43658478004
SCREW
$6.12

Part#: 65847800 Qty: 4$6.12

44668060001
CENTRAL CONSOLE

Part#: 66806000 Qty: 1

45667939..1
KNEE PROTECT LINING

Part#: 667939.. Qty: 1

45668092..1
LINING

Part#: 668092.. Qty: 1

46143052874
SCREW
$1.75

Part#: 14305287 Qty: 4$1.75

47109794242
SCREW

Part#: 10979424 Qty: 2

48126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

49126204742
WASHER
$0.15

Part#: 12620474 Qty: 2$0.15

50671982001
REINFORCEMENT PIPE

Part#: 67198200 Qty: 1

51160434242
SCREW
$1.25

Part#: 16043424 Qty: 2$1.25

52144965242
WASHER
$0.17

Part#: 14496524 Qty: 2$0.17

53126013742
WASHER
$0.49

Part#: 12601374 Qty: 2$0.49

54667569..1
PASSENGER SIDE LINING

Part#: 667569.. Qty: 1

54667653..1
LINING

Part#: 667653.. Qty: 1

55667570..1
PILOT SIDE LINING

Part#: 667570.. Qty: 1

55667654..1
LINING

Part#: 667654.. Qty: 1

56143052878
SCREW
$1.75

Part#: 14305287 Qty: 8$1.75

57126444788
WASHER

Part#: 12644478 Qty: 8

58675554008
WASHER

Part#: 67555400 Qty: 8

59652534002
SCREW
$0.91

Part#: 65253400 Qty: 2$0.91

601596012
NUT
$1.00

Part#: 159601 Qty: 2$1.00

61671985001
LOWER BRACKET

Part#: 67198500 Qty: 1

62160434242
SCREW
$1.25

Part#: 16043424 Qty: 2$1.25

63144965242
WASHER
$0.17

Part#: 14496524 Qty: 2$0.17

64126013742
WASHER
$0.49

Part#: 12601374 Qty: 2$0.49

65160434242
SCREW
$1.25

Part#: 16043424 Qty: 2$1.25

66126013742
WASHER
$0.49

Part#: 12601374 Qty: 2$0.49

67144966242
WASHER

Part#: 14496624 Qty: 2

68669284001
LOWER BRACKET

Part#: 66928400 Qty: 1

69669556001
BRACKET

Part#: 66955600 Qty: 1

70669532004
COVERS UPPER FIXING CLIP

Part#: 66953200 Qty: 4

70670560002
INSTRUMENT UPPER FIXING CLIP

Part#: 67056000 Qty: 2

711044462412
SCREW

Part#: 10444624 Qty: 12

721260107412
WASHER
$0.03

Part#: 12601074 Qty: 12$0.03
