Ferrari Philadelphia Parts

Table 2

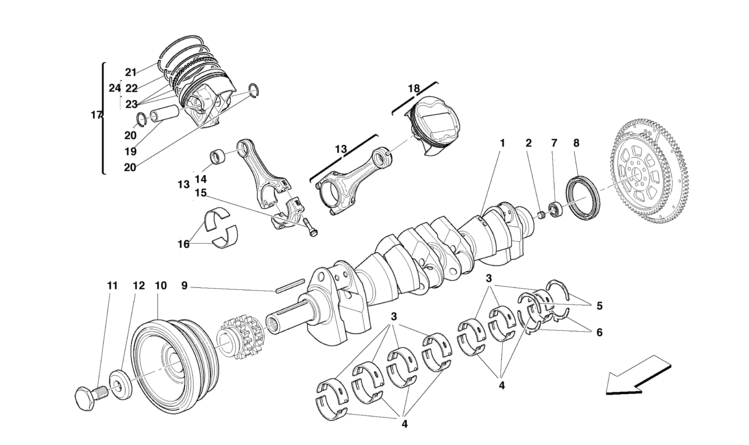

Table 2 - DRIVING SHAFT - CONNECTING RODS AND PISTONS

Ref.Part#Qty.DescriptionPrice
1984401
HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE- -Red-

Part#: 198440 Qty: 1

11869251
CRANKSHAFT

Part#: 186925 Qty: 1

21635281
THREADED PLUG
$4.25

Part#: 163528 Qty: 1$4.25

31747167
UPPER HALF BEARING -Red- -Not as spare part- -With the half-bearings complete series-

Part#: 174716 Qty: 7

41747397
LOWER HALF BEARING -Red- -Not as spare part- -With the half-bearings complete series-

Part#: 174739 Qty: 7

51795392
UPPER SPACER -Standard- -Not as spare part- -With the half-bearings complete series-

Part#: 179539 Qty: 2

61897242
LOWER SPACER -Standard- -Not as spare part- -With the half-bearings complete series-

Part#: 189724 Qty: 2

71038771
BEARING FOR SHAFT
$29.99

Part#: 103877 Qty: 1$29.99

82003231
GASKET -Not as spare part- -Replaced by 200323-
$71.89

Part#: 200323 Qty: 1$71.89

82003231
GASKET
$71.89

Part#: 200323 Qty: 1$71.89

91909811
KEY

Part#: 190981 Qty: 1

101862351
TORSION DAMPER

Part#: 186235 Qty: 1

111409251
SCREW
$95.96

Part#: 140925 Qty: 1$95.96

121409221
WASHER

Part#: 140922 Qty: 1

1318249712
COMPLETE CONNECTING ROD AND CAP

Part#: 182497 Qty: 12

1418381112
BUSHING

Part#: 183811 Qty: 12

1517715924
CONNECTING ROD TIGHTENING SCREW
$40.07

Part#: 177159 Qty: 24$40.07

1617615024
CONNECTING ROD HALF BEARING

Part#: 176150 Qty: 24

1617615124
CONNECTING ROD HALF BEARING -1st oversize mm. 0,254-

Part#: 176151 Qty: 24

1617615224
CONNECTING ROD HALF BEARING -2st oversize mm. 0,508-

Part#: 176152 Qty: 24

1617615324
CONNECTING ROD HALF BEARING -3st oversize mm. 0,762-

Part#: 176153 Qty: 24

1618296524
CONNECTING ROD HALF BEARING -Blue-

Part#: 182965 Qty: 24

1619026524
CONNECTING ROD HALF BEARING -Yellow-

Part#: 190265 Qty: 24

171867726
R.H. PISTON WITH RINGS

Part#: 186772 Qty: 6

181867716
L.H. PISTON WITH RINGS

Part#: 186771 Qty: 6

1917536712
PIN

Part#: 175367 Qty: 12

2017889024
STOP RING

Part#: 178890 Qty: 24

2117561212
AC SEAL RING (1nd groove) -Not as spare part- -With the pistons rings set-

Part#: 175612 Qty: 12

2218720112
AC SEAL RING (2nd groove) -Not as spare part- -With the pistons rings set-

Part#: 187201 Qty: 12

2317561412
ROF OIL SCRAPING RING (3rd groove) -Not as spare part- -With the pistons rings set-

Part#: 175614 Qty: 12

2419802512
PISTONS RINGS SET
$324.02

Part#: 198025 Qty: 12$324.02
