Ferrari Philadelphia Parts

Table 3

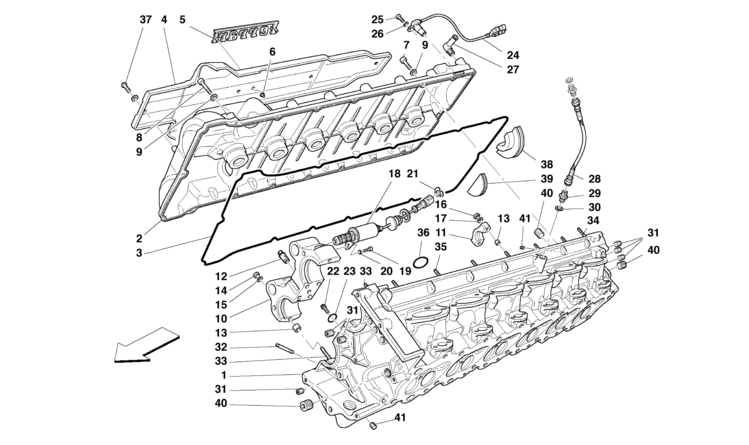

Table 3 - R.H. CYLINDER HEAD

Ref.Part#Qty.DescriptionPrice
1980201
COMPLETE R.H. CYLINDERS HEAD

Part#: 198020 Qty: 1

11864281
R.H. HEAD -Not as spare part- -With the complete cylinders head 198020-

Part#: 186428 Qty: 1

21818341
R.H. CYLINDERS HEAD COVER

Part#: 181834 Qty: 1

31953691
R.H. HEAD COVER GASKET
$278.28

Part#: 195369 Qty: 1$278.28

41924561
CABLES SMALL COVER

Part#: 192456 Qty: 1

5610250001
FERRARI MARK
$126.92

Part#: 61025000 Qty: 1$126.92

6603245062
CLIP
$2.32

Part#: 60324506 Qty: 2$2.32

715721814
SCREW

Part#: 157218 Qty: 14

81568302
SCREW
$2.75

Part#: 156830 Qty: 2$2.75

91119777416
WASHER
$0.49

Part#: 11197774 Qty: 16$0.49

101
FRONT CAP -Not as spare part- -With the complete cylinders head 198020-

Part#: Qty: 1

1114
CAP -Not as spare part- -With the complete cylinders head 198020-

Part#: Qty: 14

121881421
PRESSURE CONTROL VALVE

Part#: 188142 Qty: 1

1310203230
CENTERING DOWEL
$10.75

Part#: 102032 Qty: 30$10.75

14161008142
NUT -Not as spare part- -Replaced by 16100812-
$0.45

Part#: 16100814 Qty: 2$0.45

14161008122
NUT

Part#: 16100812 Qty: 2

15111938742
WASHER
$0.10

Part#: 11193874 Qty: 2$0.10

161589621128
NUT

Part#: 15896211 Qty: 28

171119777428
WASHER
$0.49

Part#: 11197774 Qty: 28$0.49

181865632
VARIATOR CONTROL SOLENOID VALVE

Part#: 186563 Qty: 2

19144331242
SCREW
$0.50

Part#: 14433124 Qty: 2$0.50

20111977742
WASHER
$0.49

Part#: 11197774 Qty: 2$0.49

21110873742
FLEXIBLE RING
$0.70

Part#: 11087374 Qty: 2$0.70

221802661
OIL FILTER

Part#: 180266 Qty: 1

231342331
GASKET
$1.96

Part#: 134233 Qty: 1$1.96

241776732
PHASE SENSOR
$410.99

Part#: 177673 Qty: 2$410.99

25143052242
SCREW
$0.60

Part#: 14305224 Qty: 2$0.60

26111977742
WASHER
$0.49

Part#: 11197774 Qty: 2$0.49

271955101
THREADED UNION

Part#: 195510 Qty: 1

281875351
OIL HOSE FROM HEAD TO SUCTION MANIFOLD

Part#: 187535 Qty: 1

291824261
THREADED UNION

Part#: 182426 Qty: 1

30102610601
GASKET
$0.50

Part#: 10261060 Qty: 1$0.50

311944956
THREADED PLUG -Not as spare part now- -Replaced by 14326001-

Part#: 194495 Qty: 6

31143260016
THREADED PLUG
$0.75

Part#: 14326001 Qty: 6$0.75

321354352412
STUD
$4.36

Part#: 13543524 Qty: 12$4.36

33135438212
STUD
$2.50

Part#: 13543821 Qty: 2$2.50

34115010212
STUD
$0.75

Part#: 11501021 Qty: 2$0.75

351354152126
STUD

Part#: 13541521 Qty: 26

361482256
O.R. GASKET
$1.59

Part#: 148225 Qty: 6$1.59

37653774003
SCREW
$2.55

Part#: 65377400 Qty: 3$2.55

381801091
COVER GASKET
$137.97

Part#: 180109 Qty: 1$137.97

391801101
COVER GASKET
$137.50

Part#: 180110 Qty: 1$137.50

401276359
THREADED PLUG
$3.43

Part#: 127635 Qty: 9$3.43

411944932
THREADED PLUG -Not as spare part now- -Replaced by 141563-

Part#: 194493 Qty: 2

411415632
THREADED PLUG

Part#: 141563 Qty: 2
