Ferrari Philadelphia Parts

Table 108

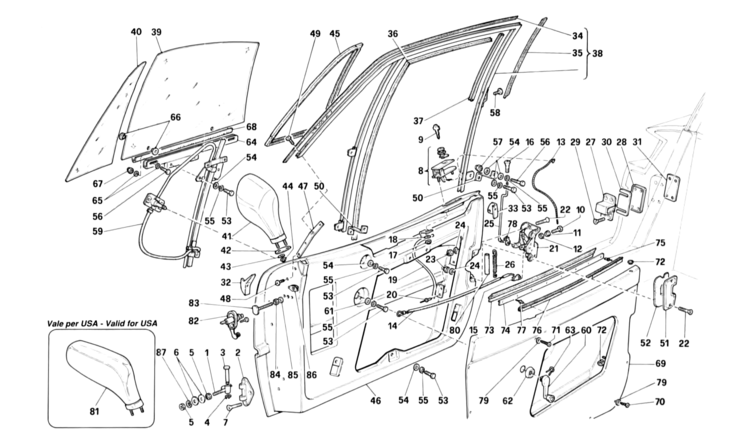

Table 108 - Doors -Descending glass version-

Ref.Part#Qty.DescriptionPrice
1629513004
Fixed hinge -Valid till depletion-

Part#: 62951300 Qty: 4

629513004
Fixed hinge -Valid after depletion of 62537100

Part#: 62951300 Qty: 4

2623950004
Mobile hinge

Part#: 62395000 Qty: 4

3623951004
Pin

Part#: 62395100 Qty: 4

4110876764
Snap ring
$0.35

Part#: 11087676 Qty: 4$0.35

5121647218
Nut M10 -Valid for 62537100
$1.65

Part#: 12164721 Qty: 8$1.65

107913248
Nut M14 -Valid for 62951300
$9.50

Part#: 10791324 Qty: 8$9.50

61080518
Washer -Valid for 62537100
$3.55

Part#: 108051 Qty: 8$3.55

1121268
Washer -Valid for 62951300

Part#: 112126 Qty: 8

72029830312
Screw
$2.97

Part#: 20298303 Qty: 12$2.97

624611001
Set of lock

Part#: 62461100 Qty: 1

8
Handle Not as spare parts With set of lock assy-

Part#:

9954011612
Key blank

Part#: 95401161 Qty: 2

10600887052
Screw
$7.40

Part#: 60088705 Qty: 2$7.40

11200895042
Bushing

Part#: 20089504 Qty: 2

12125754112
Nut

Part#: 12575411 Qty: 2

13624952002
Cable for handle

Part#: 62495200 Qty: 2

14624607002
Cable for door handle

Part#: 62460700 Qty: 2

15400632082
Spring
$5.90

Part#: 40063208 Qty: 2$5.90

16201704032
Knob
$48.41

Part#: 20170403 Qty: 2$48.41

17125741154
Nut

Part#: 12574115 Qty: 4

18126381014
Washer

Part#: 12638101 Qty: 4

19624984001
R.H. tube

Part#: 62498400 Qty: 1

624985001
L.H. tube

Part#: 62498500 Qty: 1

20502093034
Rivet

Part#: 50209303 Qty: 4

21201708091
R.H. lock

Part#: 20170809 Qty: 1

201709181
L.H. lock
$1222.76

Part#: 20170918 Qty: 1$1222.76

22202983038
Screw
$2.97

Part#: 20298303 Qty: 8$2.97

23125742118
Nut

Part#: 12574211 Qty: 8

24126437218
Washer

Part#: 12643721 Qty: 8

25624950001
Control rod R.H.

Part#: 62495000 Qty: 1

624951001
Control rod L.H.

Part#: 62495100 Qty: 1

26625370002
Spring

Part#: 62537000 Qty: 2

27200191051
R.H. lock striker
$643.73

Part#: 20019105 Qty: 1$643.73

200192041
L.H. lock striker
$643.73

Part#: 20019204 Qty: 1$643.73

28606024002
Gasket
$54.19

Part#: 60602400 Qty: 2$54.19

29202875048
Screw
$4.75

Part#: 20287504 Qty: 8$4.75

30601630032
Spacer (Possible mounting)
$15.42

Part#: 60163003 Qty: 2$15.42

31600852062
Plate

Part#: 60085206 Qty: 2

32625006001
R.H. front moulding

Part#: 62500600 Qty: 1

625007001
L.H. front moulding

Part#: 62500700 Qty: 1

33625008001
R.H. rear moulding

Part#: 62500800 Qty: 1

625009001
L.H. rear moulding

Part#: 62500900 Qty: 1

34602785042
Gasket
$135.00

Part#: 60278504 Qty: 2$135.00

35602784052
Rear gasket
$168.16

Part#: 60278405 Qty: 2$168.16

36615098002
Front rail
$188.73

Part#: 61509800 Qty: 2$188.73

37MC3475/22
Rear rail
$18.50

Part#: MC3475/2 Qty: 2$18.50

38625896001
R.H. glass frame

Part#: 62589600 Qty: 1

625897001
L.H. glass frame

Part#: 62589700 Qty: 1

39623956001
R.H. glass

Part#: 62395600 Qty: 1

623957001
L.H. glass

Part#: 62395700 Qty: 1

40623958001
R.H. glass

Part#: 62395800 Qty: 1

623959001
L.H. glass

Part#: 62395900 Qty: 1

41624705001
R.H. mirror -Not for USA

Part#: 62470500 Qty: 1

624706001
L.H. mirror -Not for USA

Part#: 62470600 Qty: 1

42700005482
L.H. and R.H. gasket

Part#: 70000548 Qty: 2

43126467014
Washer

Part#: 12646701 Qty: 4

44161044114
Nut
$0.50

Part#: 16104411 Qty: 4$0.50

45624898002
Rear gasket R.H. and L.H.
$58.09

Part#: 62489800 Qty: 2$58.09

46623932001
R.H. door -Not for USA

Part#: 62393200 Qty: 1

46629094001
R.H. door Valid for USA

Part#: 62909400 Qty: 1

623933001
L.H. door -Not for USA-

Part#: 62393300 Qty: 1

627570001
L.H. door -Valid for USA-

Part#: 62757000 Qty: 1

47623944001
R.H. support

Part#: 62394400 Qty: 1

623945001
L.H. support

Part#: 62394500 Qty: 1

48202976024
Screw
$9.41

Part#: 20297602 Qty: 4$9.41

49202867044
Screw
$2.85

Part#: 20286704 Qty: 4$2.85

50624914004
Bracket

Part#: 62491400 Qty: 4

51627621001
R.H. lock moulding

Part#: 62762100 Qty: 1

627620001
L.H. lock moulding

Part#: 62762000 Qty: 1

52627623001
R.H. gasket moulding

Part#: 62762300 Qty: 1

627622001
L.H. gasket moulding

Part#: 62762200 Qty: 1

531090211120
Screw

Part#: 10902111 Qty: 20

541264372124
Washer

Part#: 12643721 Qty: 24

5512749424
Washer
$0.65

Part#: 127494 Qty: 24$0.65

56109024218
Screw

Part#: 10902421 Qty: 8

57158962214
Nut

Part#: 15896221 Qty: 4

58202976022
Screw
$9.41

Part#: 20297602 Qty: 2$9.41

59624993001
R.H. window lifter

Part#: 62499300 Qty: 1

624995001
L.H. window lifter

Part#: 62499500 Qty: 1

60616133002
Knob

Part#: 61613300 Qty: 2

61144964014
Washer

Part#: 14496401 Qty: 4

62625845002
Ring

Part#: 62584500 Qty: 2

63625846002
Spring

Part#: 62584600 Qty: 2

64624996001
Base for R.H. glass

Part#: 62499600 Qty: 1

624997001
Base for L.H. glass

Part#: 62499700 Qty: 1

65126437018
Washer

Part#: 12643701 Qty: 8

66500869098
Bushing

Part#: 50086909 Qty: 8

67125754114
Nut

Part#: 12575411 Qty: 4

68625640002
Gasket

Part#: 62564000 Qty: 2

69624998001
R.H. panel

Part#: 62499800 Qty: 1

624999001
L.H. panel

Part#: 62499900 Qty: 1

701590847822
Screw

Part#: 15908478 Qty: 22

71159085064
Screw

Part#: 15908506 Qty: 4

72616175004
Bushing

Part#: 61617500 Qty: 4

73625622002
Gasket
$19.77

Part#: 62562200 Qty: 2$19.77

74625632002
Spacer

Part#: 62563200 Qty: 2

756255630016
Rivet

Part#: 62556300 Qty: 16

76625634002
Gasket

Part#: 62563400 Qty: 2

776175590010
Rivet

Part#: 61755900 Qty: 10

78608135002
Spring

Part#: 60813500 Qty: 2

791333620726
Washer

Part#: 13336207 Qty: 26

80627614002
Pipe

Part#: 62761400 Qty: 2

81628212001
R.H. exterior mirror -Valid for USA

Part#: 62821200 Qty: 1

628211001
L.H. exterior mirror Valid for USA

Part#: 62821100 Qty: 1

821418943
Switch -Valid for USA
$49.50

Part#: 141894 Qty: 3$49.50

83629031003
Adjuster control switch Valid for USA

Part#: 62903100 Qty: 3

84158962113
Nut -Valid for USA-

Part#: 15896211 Qty: 3

85144993013
Washer -Valid for USA

Part#: 14499301 Qty: 3

86624712003
Bracket -Valid for USA-
$25.82

Part#: 62471200 Qty: 3$25.82

871274998
Washer -Valid for fixed hinge 62951300 (part. 1)-

Part#: 127499 Qty: 8
