Table 18

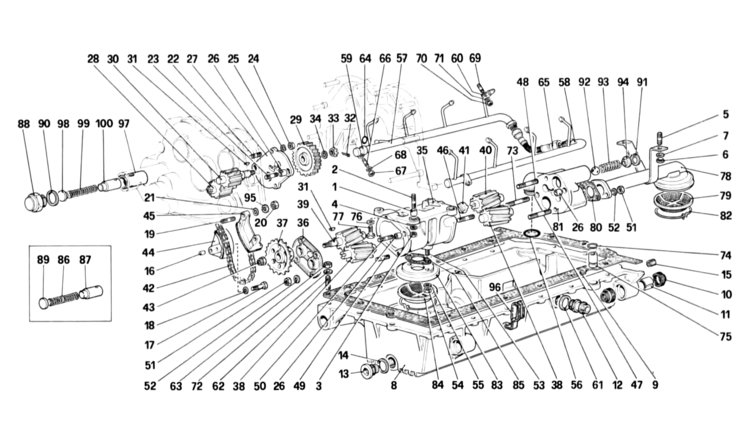

Table 18 - Lubrication - Pumps

Ref.Part#Qty.DescriptionPrice
11219062
Dowel

Part#: 121906 Qty: 2

2135436212
Stud

Part#: 13543621 Qty: 2

3161008212
Nut

Part#: 16100821 Qty: 2

4126013792
Washer
$0.49

Part#: 12601379 Qty: 2$0.49

5135164212
Stud

Part#: 13516421 Qty: 2

6161008112
Nut

Part#: 16100811 Qty: 2

71068522
Washer

Part#: 106852 Qty: 2

1349991
Oil sump complete -Cars without A.C.-

Part#: 134999 Qty: 1

81349981
Oil sump -With assembly 136132-

Part#: 134998 Qty: 1

1349991
Oil sump complete -Cars with A.C.-

Part#: 134999 Qty: 1

81349361
Oil sump -With assembly 13499

Part#: 134936 Qty: 1

91442541
Gasket
$36.66

Part#: 144254 Qty: 1$36.66

101219294
Ring
$11.36

Part#: 121929 Qty: 4$11.36

111244672
Bush

Part#: 124467 Qty: 2

121349302
Fitting

Part#: 134930 Qty: 2

131042801
Plug
$9.25

Part#: 104280 Qty: 1$9.25

14102634601
Gasket
$1.00

Part#: 10263460 Qty: 1$1.00

151229763
Heli-coil

Part#: 122976 Qty: 3

161257161
Dowel

Part#: 125716 Qty: 1

17109024211
Screw

Part#: 10902421 Qty: 1

18111977791
Washer

Part#: 11197779 Qty: 1

19115003212
Stud

Part#: 11500321 Qty: 2

20158962112
Nut

Part#: 15896211 Qty: 2

21111977792
Washer

Part#: 11197779 Qty: 2

22135408202
Short stud
$2.78

Part#: 13540820 Qty: 2$2.78

23135411212
Long stud

Part#: 13541121 Qty: 2

24158962114
Nut

Part#: 15896211 Qty: 4

25111977794
Washer

Part#: 11197779 Qty: 4

261027256
Dowel
$2.25

Part#: 102725 Qty: 6$2.25

271241111
Cover for oil pump

Part#: 124111 Qty: 1

281347661
Driven gear

Part#: 134766 Qty: 1

291249241
Control gear

Part#: 124924 Qty: 1

301347671
Driving gear

Part#: 134767 Qty: 1

31102056202
Key

Part#: 10205620 Qty: 2

32107343011
Split pin

Part#: 10734301 Qty: 1

331029001
Nut

Part#: 102900 Qty: 1

34111985701
Washer

Part#: 11198570 Qty: 1

1220511
Scavenge pump body complete

Part#: 122051 Qty: 1

351220511
Scavenge pump body -With assembly 122051-

Part#: 122051 Qty: 1

361093011
Front cover for pump

Part#: 109301 Qty: 1

371250751
External gear

Part#: 125075 Qty: 1

381347442
Driven gear

Part#: 134744 Qty: 2

391347451
Front driving gear

Part#: 134745 Qty: 1

401347461
Rear driving gear

Part#: 134746 Qty: 1

411093091
Coupling

Part#: 109309 Qty: 1

421093261
Chain

Part#: 109326 Qty: 1

431040111
Self locking nut
$14.50

Part#: 104011 Qty: 1$14.50

441361961
Right tension pad

Part#: 136196 Qty: 1

451361951
Left tension pad

Part#: 136195 Qty: 1

46115014211
Stud

Part#: 11501421 Qty: 1

47115018211
Stud

Part#: 11501821 Qty: 1

48115017211
Stud

Part#: 11501721 Qty: 1

49115003212
Stud

Part#: 11500321 Qty: 2

50115005212
Stud

Part#: 11500521 Qty: 2

51158962118
Nut

Part#: 15896211 Qty: 8

52111977798
Washer

Part#: 11197779 Qty: 8

53115000212
Stud

Part#: 11500021 Qty: 2

54158962112
Nut

Part#: 15896211 Qty: 2

55126012792
Washer
$0.07

Part#: 12601279 Qty: 2$0.07

561042131
Sealing ring
$1.25

Part#: 104213 Qty: 1$1.25

571372651
Oil delivery pipe right

Part#: 137265 Qty: 1

581372641
Oil delivery pipe left
$299.26

Part#: 137264 Qty: 1$299.26

591231714
Clamp

Part#: 123171 Qty: 4

601231708
Clamp

Part#: 123170 Qty: 8

61102634602
Gasket
$1.00

Part#: 10263460 Qty: 2$1.00

62123545211
Stud

Part#: 12354521 Qty: 1

63161008111
Nut

Part#: 16100811 Qty: 1

641236221
Sealing ring
$1.90

Part#: 123622 Qty: 1$1.90

651231921
Pipe

Part#: 123192 Qty: 1

66115000214
Nut

Part#: 11500021 Qty: 4

67136798114
Washer

Part#: 13679811 Qty: 4

68144964214
Washer

Part#: 14496421 Qty: 4

69135390248
Nut
$1.37

Part#: 13539024 Qty: 8$1.37

701399518
Nut

Part#: 139951 Qty: 8

71144963018
Washer
$0.30

Part#: 14496301 Qty: 8$0.30

72126013791
Washer
$0.49

Part#: 12601379 Qty: 1$0.49

73115019211
Stud

Part#: 11501921 Qty: 1

741038392
Ring

Part#: 103839 Qty: 2

751038382
Dowel

Part#: 103838 Qty: 2

76111980791
Washer

Part#: 11198079 Qty: 1

77160438211
Screw

Part#: 16043821 Qty: 1

781219471
Suction pipe rear

Part#: 121947 Qty: 1

791003321
Filter
$18.24

Part#: 100332 Qty: 1$18.24

801442511
Gasket

Part#: 144251 Qty: 1

811219531
Rear cover pump

Part#: 121953 Qty: 1

821039442
Sealing ring

Part#: 103944 Qty: 2

831224281
Suction pipe front

Part#: 122428 Qty: 1

841224291
Filter
$16.99

Part#: 122429 Qty: 1$16.99

851442511
Gasket

Part#: 144251 Qty: 1

861069001
Spring Valid till engine n. 13507Not for engine no. 13493-

Part#: 106900 Qty: 1

871062361
Piston Valid till engine no. 13507Not for engine no. 13493-
$24.78

Part#: 106236 Qty: 1$24.78

881062371
Plug

Part#: 106237 Qty: 1

891062381
Spacer -Valid till engine n. 13507Not for engine no. 13493-
$3.36

Part#: 106238 Qty: 1$3.36

90102646601
Gasket
$4.30

Part#: 10264660 Qty: 1$4.30

91110580761
Seeger

Part#: 11058076 Qty: 1

921213061
Ball

Part#: 121306 Qty: 1

931219811
Spring

Part#: 121981 Qty: 1

941219721
Washer

Part#: 121972 Qty: 1

95126444012
Washer

Part#: 12644401 Qty: 2

961372331
Bracket For cars with catalyst Q.ty 2

Part#: 137233 Qty: 1

971253211
Bushing -Valid from engine no.13508 and for engine no. 13493

Part#: 125321 Qty: 1

981356791
Spacer -Valid from engine no.13508 and for engine no. 13493

Part#: 135679 Qty: 1

991335501
Spring -Valid from engine no.13508 and for engine no. 13493
$99.11

Part#: 133550 Qty: 1$99.11

1001258851
Piston -Valid from engine no.13508 and for engine no. 13493

Part#: 125885 Qty: 1
