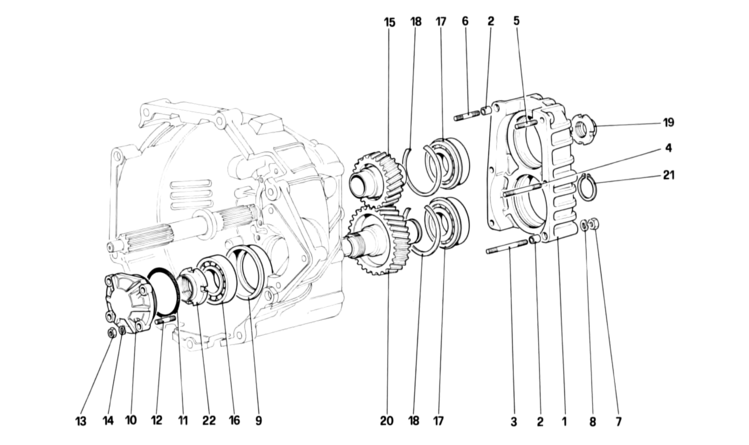

Table 23 - Gearbox transmission
Ref. | Part# | Qty. | Description | Price |
---|
1 | 121716 | 1 | Rear cover | | | |
Part#: 121716 Qty: 1 |
2 | 102704 | 2 | Dowel | $3.29 | | |
Part#: 102704 Qty: 2$3.29 |
3 | 13544321 | 1 | Stud | | | |
Part#: 13544321 Qty: 1 |
4 | 13544221 | 3 | Stud | | | |
Part#: 13544221 Qty: 3 |
5 | 13543421 | 1 | Stud | | | |
Part#: 13543421 Qty: 1 |
6 | 13543721 | 1 | Stud | $0.75 | | |
Part#: 13543721 Qty: 1$0.75 |
7 | 16100811 | 6 | Nut | | | |
Part#: 16100811 Qty: 6 |
8 | 12601379 | 6 | Washer | $0.49 | | |
Part#: 12601379 Qty: 6$0.49 |
9 | 121797 | 1 | Bush for bearing | | | |
Part#: 121797 Qty: 1 |
10 | 121750 | 1 | Cover | | | |
Part#: 121750 Qty: 1 |
11 | 121814 | 1 | Sealing ring | $14.50 | | |
Part#: 121814 Qty: 1$14.50 |
12 | 13517121 | 4 | Stud | | | |
Part#: 13517121 Qty: 4 |
13 | 16100811 | 4 | Nut | | | |
Part#: 16100811 Qty: 4 |
14 | 12601379 | 4 | Washer | $0.49 | | |
Part#: 12601379 Qty: 4$0.49 |
15 | 121878 | 1 | Driving gear | | | |
Part#: 121878 Qty: 1 |
16 | 126223 | 1 | Bearing | $1205.77 | | |
Part#: 126223 Qty: 1$1205.77 |
17 | 121820 | 2 | Bearing | $404.55 | | |
Part#: 121820 Qty: 2$404.55 |
18 | 122112 | 2 | Stop ring | | | |
Part#: 122112 Qty: 2 |
19 | 125480 | 1 | Ring nut | $138.00 | | |
Part#: 125480 Qty: 1$138.00 |
20 | 121878 | 1 | Stop ring | | | |
Part#: 121878 Qty: 1 |
21 | 11068376 | 1 | Stop ring | $0.66 | | |
Part#: 11068376 Qty: 1$0.66 |
22 | 100729 | 1 | Ring nut | | | |
Part#: 100729 Qty: 1 |
