Table 7

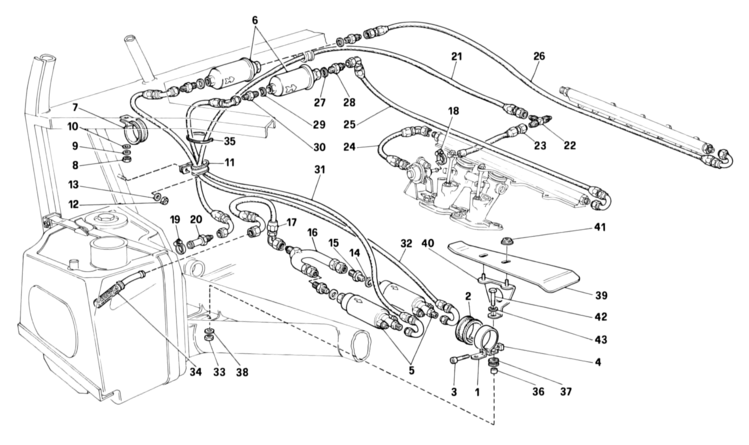

Table 7 - Pump and fuel piping Not for USA

Ref.Part#Qty.DescriptionPrice
11343792
Clip -Valid till depletion-

Part#: 134379 Qty: 2

1476172
Clip -Valid after depletion of 134379-

Part#: 147617 Qty: 2

21238482
Insert

Part#: 123848 Qty: 2

3143055212
Screw -For clamp 134379

Part#: 14305521 Qty: 2

143056212
Screw -For clamp 147617-

Part#: 14305621 Qty: 2

4140893112
Nut

Part#: 14089311 Qty: 2

51996182
Fuel pump

Part#: 199618 Qty: 2

61344702
Fuel filter
$132.93

Part#: 134470 Qty: 2$132.93

71372432
Bracket

Part#: 137243 Qty: 2

8158962112
Nut

Part#: 15896211 Qty: 2

9111977792
Washer

Part#: 11197779 Qty: 2

10126437012
Washer

Part#: 12643701 Qty: 2

11617125001
Bracket
$2.50

Part#: 61712500 Qty: 1$2.50

12125742111
Nut

Part#: 12574211 Qty: 1

13126437011
Washer

Part#: 12643701 Qty: 1

14102570602
Gasket
$1.00

Part#: 10257060 Qty: 2$1.00

151368452
Union
$45.25

Part#: 136845 Qty: 2$45.25

161369351
Union

Part#: 136935 Qty: 1

171360891
Fuel pipe from tank to 3-way pumps

Part#: 136089 Qty: 1

18121794902
Clamp

Part#: 12179490 Qty: 2

19121795901
Clamp

Part#: 12179590 Qty: 1

201361071
Union

Part#: 136107 Qty: 1

211368461
Fuel pipe from 3-way flutes to L.H. tank

Part#: 136846 Qty: 1

221361091
Union

Part#: 136109 Qty: 1

231463582
Fuel pipe from pressure adjuster to 3-way union -Valid till depletion-

Part#: 146358 Qty: 2

1463582
Fuel pipe from pressure adjuster to 3-way union -Valid after depletion of 136849

Part#: 146358 Qty: 2

241368472
Pipe from flute to pressure adjuster

Part#: 136847 Qty: 2

251368481
Fuel pipe from L.H. filter to L.H. flute

Part#: 136848 Qty: 1

261368521
Fuel pipe from R.H. filter to R.H. flute

Part#: 136852 Qty: 1

27102984602
Gasket
$1.00

Part#: 10298460 Qty: 2$1.00

281360772
Union

Part#: 136077 Qty: 2

29112702602
Gasket
$0.75

Part#: 11270260 Qty: 2$0.75

301360992
Union

Part#: 136099 Qty: 2

311368511
Fuel pipe from L.H. pump to L.H. filter
$738.42

Part#: 136851 Qty: 1$738.42

321368501
Fuel pipe from R.H. pump to R.H. filter
$724.65

Part#: 136850 Qty: 1$724.65

33125754114
Nut

Part#: 12575411 Qty: 4

341371071
Filter

Part#: 137107 Qty: 1

35145601871
Clamp

Part#: 14560187 Qty: 1

361035504
Spacer bush -Only for clamp 147617-
$3.25

Part#: 103550 Qty: 4$3.25

371035494
Cable guide -Only for clamp 147617-
$1.80

Part#: 103549 Qty: 4$1.80

38144993014
Washer

Part#: 14499301 Qty: 4

391490831
Shield

Part#: 149083 Qty: 1

401490891
Bracket

Part#: 149089 Qty: 1

41138321012
Nut
$0.55

Part#: 13832101 Qty: 2$0.55

42109026211
Screw
$0.21

Part#: 10902621 Qty: 1$0.21

43126437011
Washer

Part#: 12643701 Qty: 1
