Table 29

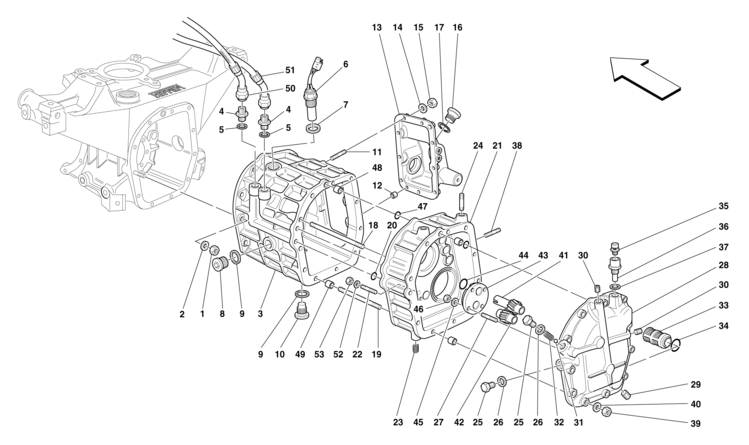

Table 29 - REAR PART GEARBOXES HOUSING - COVERS AND LUBRICATION

Ref.Part#Qty.DescriptionPrice
1567871
GEARBOXES ASSEMBLY

Part#: 156787 Qty: 1

11610081111
NUT

Part#: 16100811 Qty: 11

21260137411
WASHER
$0.49

Part#: 12601374 Qty: 11$0.49

31553971
GEARBOX -Not as spare part- -With the assembly 156787-

Part#: 155397 Qty: 1

41349882
UNION

Part#: 134988 Qty: 2

51451922
GASKET

Part#: 145192 Qty: 2

61508301
PULSE SENSOR
$332.79

Part#: 150830 Qty: 1$332.79

71448102
GASKET
$27.42

Part#: 144810 Qty: 2$27.42

8102750111
THREADED PLUG
$3.90

Part#: 10275011 Qty: 1$3.90

91448102
GASKET
$27.42

Part#: 144810 Qty: 2$27.42

101042801
MAGNETIC PLUG
$9.25

Part#: 104280 Qty: 1$9.25

11115004249
STUD
$0.60

Part#: 11500424 Qty: 9$0.60

121257172
CENTERING DOWEL

Part#: 125717 Qty: 2

131556201
COVER FOR GEARBOX CONTROL ROD INLET

Part#: 155620 Qty: 1

14126012749
WASHER
$1.00

Part#: 12601274 Qty: 9$1.00

15158962149
NUT
$0.75

Part#: 15896214 Qty: 9$0.75

16102750111
THREADED PLUG
$3.90

Part#: 10275011 Qty: 1$3.90

171448101
GASKET
$27.42

Part#: 144810 Qty: 1$27.42

18139706248
STUD

Part#: 13970624 Qty: 8

19139707243
STUD

Part#: 13970724 Qty: 3

201342324
GASKET
$1.19

Part#: 134232 Qty: 4$1.19

211552831
REVERSE GEARBOX HOUSING -Not as spare part- -With the assembly 156787-

Part#: 155283 Qty: 1

22115001241
STUD
$0.50

Part#: 11500124 Qty: 1$0.50

23135821712
THREADED INSERT

Part#: 13582171 Qty: 2

24135438242
STUD
$2.63

Part#: 13543824 Qty: 2$2.63

251451482
PLUG

Part#: 145148 Qty: 2

261451922
GASKET

Part#: 145192 Qty: 2

27115001244
STUD
$0.50

Part#: 11500124 Qty: 4$0.50

281546421
REAR GEARBOX COVER

Part#: 154642 Qty: 1

29102694501
THREADED PLUG
$24.43

Part#: 10269450 Qty: 1$24.43

30143260502
THREADED PLUG
$2.67

Part#: 14326050 Qty: 2$2.67

311357701
BALL
$0.81

Part#: 135770 Qty: 1$0.81

321357711
SPRING
$6.83

Part#: 135771 Qty: 1$6.83

331155381
FILTER FOR GEAR BOX OIL PUMP
$10.76

Part#: 115538 Qty: 1$10.76

341010341
GASKET
$2.60

Part#: 101034 Qty: 1$2.60

35134119901
OIL BREATHER
$3.50

Part#: 13411990 Qty: 1$3.50

361509541
UNION

Part#: 150954 Qty: 1

371451921
GASKET

Part#: 145192 Qty: 1

38115001244
STUD
$0.50

Part#: 11500124 Qty: 4$0.50

391610081411
NUT
$0.45

Part#: 16100814 Qty: 11$0.45

401260137411
WASHER
$0.49

Part#: 12601374 Qty: 11$0.49

411097221
GEARBOX OIL PUMP DRIVING GEAR

Part#: 109722 Qty: 1

421097231
GEARBOX OIL PUMP DRIVEN GEAR

Part#: 109723 Qty: 1

431219621
SMALL COVER

Part#: 121962 Qty: 1

441097241
GASKET
$1.90

Part#: 109724 Qty: 1$1.90

45126012744
WASHER
$1.00

Part#: 12601274 Qty: 4$1.00

46158962144
NUT
$0.75

Part#: 15896214 Qty: 4$0.75

471325361
GASKET

Part#: 132536 Qty: 1

481509571
BUSHING

Part#: 150957 Qty: 1

491509612
CENTERING DOWEL

Part#: 150961 Qty: 2

501
OIL DELIVRY TUBE -See Table 23 Pos. 38-

Part#: Qty: 1

511
OIL RETURN TUBE -See Table 23 Pos. 37-

Part#: Qty: 1

521068501
WASHER
$0.65

Part#: 106850 Qty: 1$0.65

53158962141
NUT
$0.75

Part#: 15896214 Qty: 1$0.75
