Table 41

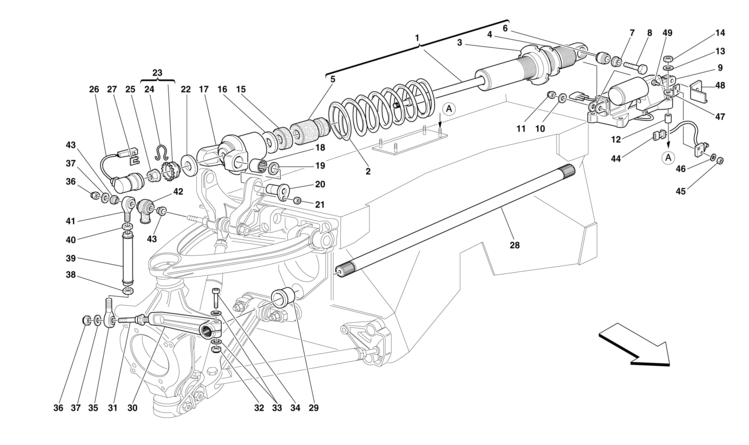

Table 41 - FRONT SUSPENSION - SHOCK ABSORBER AND STABILIZER BAR

Ref.Part#Qty.DescriptionPrice
11658462
FRONT SHOCK ABSORBER

Part#: 165846 Qty: 2

21656192
SUSPENSION SPRING

Part#: 165619 Qty: 2

31504322
SPACER

Part#: 150432 Qty: 2

41418602
RING NUT
$282.35

Part#: 141860 Qty: 2$282.35

51659912
SHOCK ABSORBER PAD

Part#: 165991 Qty: 2

61493542
BALL JOINT

Part#: 149354 Qty: 2

71533214
BUSHING

Part#: 153321 Qty: 4

81533202
PIN

Part#: 153320 Qty: 2

91641021
HOISTER -Not as spare part now- -Replaced by 171104-

Part#: 164102 Qty: 1

91711041
HOISTER -Replaces 164102-

Part#: 171104 Qty: 1

10107305142
WASHER
$0.89

Part#: 10730514 Qty: 2$0.89

111332162
NUT
$10.42

Part#: 133216 Qty: 2$10.42

111027422
NUT -As an alternative-
$3.25

Part#: 102742 Qty: 2$3.25

121509612
CENTERING DOWEL

Part#: 150961 Qty: 2

13126385244
WASHER

Part#: 12638524 Qty: 4

141332154
NUT

Part#: 133215 Qty: 4

141011394
NUT -As an alternative-
$1.90

Part#: 101139 Qty: 4$1.90

151546952
SPACER

Part#: 154695 Qty: 2

161506132
WASHER

Part#: 150613 Qty: 2

171470042
HYPERBLOCK

Part#: 147004 Qty: 2

181501604
BEARING

Part#: 150160 Qty: 4

191501154
WASHER -Th. mm. 2,5-

Part#: 150115 Qty: 4

191501664
WASHER -Th. mm. 2,4- -As an alternative-

Part#: 150166 Qty: 4

191501674
WASHER -Th. mm. 2,3- -As an alternative-

Part#: 150167 Qty: 4

191501684
WASHER -Th. mm. 2,2- -As an alternative-

Part#: 150168 Qty: 4

191501694
WASHER -Th. mm. 2,6- -As an alternative-

Part#: 150169 Qty: 4

191501704
WASHER -Th. mm. 2,7- -As an alternative-

Part#: 150170 Qty: 4

191501714
WASHER -Th. mm. 2,8- -As an alternative-

Part#: 150171 Qty: 4

201501144
PIN

Part#: 150114 Qty: 4

211136474
NUT
$0.21

Part#: 113647 Qty: 4$0.21

221506122
WASHER

Part#: 150612 Qty: 2

231378242
ACTUATOR SUPPORT
$59.29

Part#: 137824 Qty: 2$59.29

241420792
CLIP
$46.50

Part#: 142079 Qty: 2$46.50

251378262
NUT
$4.25

Part#: 137826 Qty: 2$4.25

261587322
SHOCK ABSORBER ACTUATOR

Part#: 158732 Qty: 2

271557512
CLIP
$4.95

Part#: 155751 Qty: 2$4.95

281656021
ANTI-ROLL BAR -Not as spare part now- -Replaced by 168442-

Part#: 165602 Qty: 1

281684421
ANTI-ROLL BAR

Part#: 168442 Qty: 1

291516422
BUSHING

Part#: 151642 Qty: 2

301516622
ARM FOR ROD

Part#: 151662 Qty: 2

311516632
PIN

Part#: 151663 Qty: 2

321332152
NUT

Part#: 133215 Qty: 2

321011392
NUT -As an alternative-
$1.90

Part#: 101139 Qty: 2$1.90

33126385244
WASHER

Part#: 12638524 Qty: 4

341499392
SCREW

Part#: 149939 Qty: 2

351293932
LOWER BALL JOINT -Valid till car N

Part#: 129393 Qty: 2

351693112
LOWER BALL JOINT -Valid from car N

Part#: 169311 Qty: 2

361332154
NUT

Part#: 133215 Qty: 4

37126385244
WASHER

Part#: 12638524 Qty: 4

38161029142
L.H. THREADED NUT -Valid till car N

Part#: 16102914 Qty: 2

38116909112
L.H. THREADED NUT -Valid from car N

Part#: 11690911 Qty: 2

391528772
SHACKLE FOR STABILISER BAR -Valid till car N

Part#: 152877 Qty: 2

391693052
SHACKLE FOR STABILISER BAR -Valid from car N

Part#: 169305 Qty: 2

40161023142
NUT -Valid till car N
$1.29

Part#: 16102314 Qty: 2$1.29

40107887112
NUT -Valid from car N

Part#: 10788711 Qty: 2

411293822
BALL JOINT -Valid till car N

Part#: 129382 Qty: 2

411693102
BALL JOINT -Valid from car N

Part#: 169310 Qty: 2

421246224
BALL JOINT PROTECTION -Valid till car N

Part#: 124622 Qty: 4

421487724
BALL JOINT PROTECTION -Valid from car N
$17.96

Part#: 148772 Qty: 4$17.96

431293834
SPACER -Valid till car N

Part#: 129383 Qty: 4

431693094
SPACER -Valid from car N

Part#: 169309 Qty: 4

441547621
MICRO-SWITCH
$101.17

Part#: 154762 Qty: 1$101.17

45610022002
NUT

Part#: 61002200 Qty: 2

46144961782
WASHER

Part#: 14496178 Qty: 2

471693351
SMALL PLATE

Part#: 169335 Qty: 1

481693361
BRACKET

Part#: 169336 Qty: 1

49132710142
SCREW

Part#: 13271014 Qty: 2
