Ferrari Philadelphia Parts

Table 42

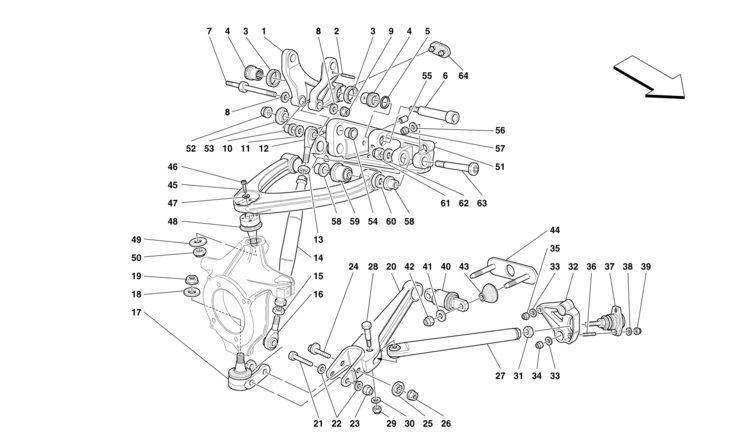

Table 42 - FRONT SUSPENSION - WISHBONES

Ref.Part#Qty.DescriptionPrice
11509322
SHOCK ABSORBER CONTROL ROCKER ARM

Part#: 150932 Qty: 2

2135391244
STUD

Part#: 13539124 Qty: 4

31501534
SEAL RING

Part#: 150153 Qty: 4

41501524
BEARING

Part#: 150152 Qty: 4

51520222
SPACER

Part#: 152022 Qty: 2

61519832
FULCRUM PIN

Part#: 151983 Qty: 2

71533222
PIN

Part#: 153322 Qty: 2

8107325314
WASHER

Part#: 10732531 Qty: 4

91328762
NUT
$28.95

Part#: 132876 Qty: 2$28.95

9125757252
NUT -As an alternative-

Part#: 12575725 Qty: 2

101500824
BUSHING

Part#: 150082 Qty: 4

111562602
WASHER Th. mm. 0,2
$3.38

Part#: 156260 Qty: 2$3.38

111562612
WASHER Th. mm. 0,3 -As an alternative-
$2.95

Part#: 156261 Qty: 2$2.95

111562622
WASHER Th. mm. 0,5 -As an alternative-
$2.10

Part#: 156262 Qty: 2$2.10

111562632
WASHER Th. mm. 0,6 -As an alternative-
$3.10

Part#: 156263 Qty: 2$3.10

111562642
WASHER Th. mm. 0,7 -As an alternative-
$1.50

Part#: 156264 Qty: 2$1.50

111562652
WASHER Th. mm. 0,8 -As an alternative-
$2.95

Part#: 156265 Qty: 2$2.95

111562662
WASHER Th. mm. 1,0 -As an alternative-
$2.10

Part#: 156266 Qty: 2$2.10

121491252
BALL JOINT

Part#: 149125 Qty: 2

13107174782
NUT -Not as spare part now- -Replaced by 10717477-

Part#: 10717478 Qty: 2

13107174772
NUT

Part#: 10717477 Qty: 2

141656562
SHOCK ABSORBER CONTROL ROD

Part#: 165656 Qty: 2

151491242
L.H. THREADED NUT

Part#: 149124 Qty: 2

161491262
BALL JOINT

Part#: 149126 Qty: 2

171469992
BALL JOINT FOR LOWER LEVER

Part#: 146999 Qty: 2

181550022
WASHER

Part#: 155002 Qty: 2

191498072
NUT
$2.50

Part#: 149807 Qty: 2$2.50

201526782
LOWER LEVER

Part#: 152678 Qty: 2

211528192
SCREW

Part#: 152819 Qty: 2

221664484
WASHER

Part#: 166448 Qty: 4

22107305144
WASHER -As an alternative-
$0.89

Part#: 10730514 Qty: 4$0.89

231332162
NUT
$10.42

Part#: 133216 Qty: 2$10.42

231027422
NUT -As an alternative-
$3.25

Part#: 102742 Qty: 2$3.25

241528172
SCREW WITH ECCENTRIC

Part#: 152817 Qty: 2

251528182
ECCENTRIC WASHER

Part#: 152818 Qty: 2

261328762
NUT
$28.95

Part#: 132876 Qty: 2$28.95

26125757252
NUT -As an alternative-

Part#: 12575725 Qty: 2

271526232
LOWER LEVER TIE ROD

Part#: 152623 Qty: 2

281526932
PIN

Part#: 152693 Qty: 2

291328762
NUT
$28.95

Part#: 132876 Qty: 2$28.95

29125757252
NUT -As an alternative- -Not as spare part now- -Replaced by 169183-

Part#: 12575725 Qty: 2

291328762
NUT -As an alternative-
$28.95

Part#: 132876 Qty: 2$28.95

301292212
WASHER

Part#: 129221 Qty: 2

31107174782
NUT -Not as spare part now- -Replaced by 10717477-

Part#: 10717478 Qty: 2

31107174772
NUT

Part#: 10717477 Qty: 2

321526602
BRACKET FOR LOWER LEVER FIXING

Part#: 152660 Qty: 2

33107305144
WASHER
$0.89

Part#: 10730514 Qty: 4$0.89

341332164
NUT
$10.42

Part#: 133216 Qty: 4$10.42

351332152
NUT

Part#: 133215 Qty: 2

36124293244
STUD

Part#: 12429324 Qty: 4

371526262
BALL JOINT

Part#: 152626 Qty: 2

38107303144
WASHER

Part#: 10730314 Qty: 4

391332154
NUT

Part#: 133215 Qty: 4

391011394
NUT -As an alternative-
$1.90

Part#: 101139 Qty: 4$1.90

401537462
BALL JOINT

Part#: 153746 Qty: 2

41126386014
WASHER
$1.00

Part#: 12638601 Qty: 4$1.00

421332164
NUT
$10.42

Part#: 133216 Qty: 4$10.42

421027424
NUT As an alternative-
$3.25

Part#: 102742 Qty: 4$3.25

431507864
SPACER

Part#: 150786 Qty: 4

441512292
BRACKET FOR LOWER LEVER

Part#: 151229 Qty: 2

451512901
R.H. UPPER LEVER

Part#: 151290 Qty: 1

451711141
L.H. UPPER LEVER

Part#: 171114 Qty: 1

46143051248
SCREW

Part#: 14305124 Qty: 8

47105692798
WASHER
$0.25

Part#: 10569279 Qty: 8$0.25

481302022
BALL JOINT FOR UPPER LEVER

Part#: 130202 Qty: 2

491501432
WASHER

Part#: 150143 Qty: 2

501691932
NUT

Part#: 169193 Qty: 2

511518121
R.H. UPPER LEVER SUPPORT

Part#: 151812 Qty: 1

511518111
L.H. UPPER LEVER SUPPORT

Part#: 151811 Qty: 1

521027422
NUT
$3.25

Part#: 102742 Qty: 2$3.25

521332162
NUT -As an alternative-
$10.42

Part#: 133216 Qty: 2$10.42

531520212
WASHER

Part#: 152021 Qty: 2

541519822
BUSHING

Part#: 151982 Qty: 2

551509614
CENTERING DOWEL

Part#: 150961 Qty: 4

561263852410
WASHER
$0.12

Part#: 12638524 Qty: 10$0.12

5713321510
NUT

Part#: 133215 Qty: 10

581520204
BUSHING

Part#: 152020 Qty: 4

591639184
BALL JOINT
$183.60

Part#: 163918 Qty: 4$183.60

601520324
WASHER Th. mm. 0,2

Part#: 152032 Qty: 4

601520334
WASHER Th. mm. 0,3 -As an alternative-

Part#: 152033 Qty: 4

601520344
WASHER Th. mm. 0,5 -As an alternative-
$8.50

Part#: 152034 Qty: 4$8.50

601520354
WASHER Th. mm. 0,6 -As an alternative-

Part#: 152035 Qty: 4

601520364
WASHER Th. mm. 0,7 -As an alternative-

Part#: 152036 Qty: 4

601520374
WASHER Th. mm. 0,8 -As an alternative-

Part#: 152037 Qty: 4

601520384
WASHER Th. mm. 1,0 -As an alternative-

Part#: 152038 Qty: 4

611328764
NUT
$28.95

Part#: 132876 Qty: 4$28.95

621520314
WASHER

Part#: 152031 Qty: 4

631520234
UPPER LEVER PIN

Part#: 152023 Qty: 4

641526152
END OF STROKE PAD

Part#: 152615 Qty: 2
