Ferrari Philadelphia Parts

Table 25

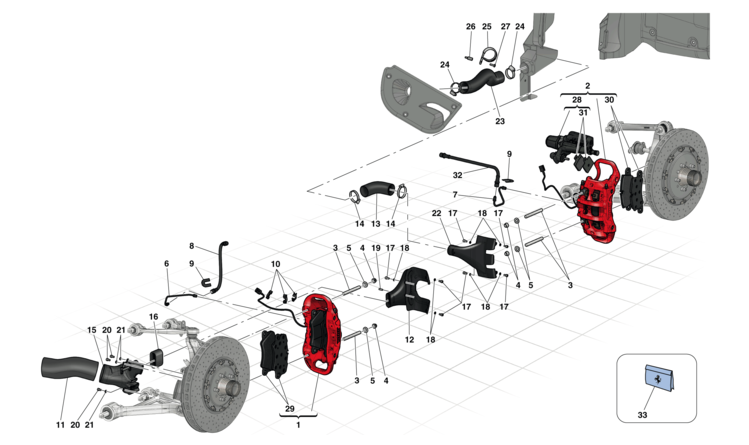

Table 25 - FRONT AND REAR BRAKE CALIPERS

Ref.Part#Qty.DescriptionPrice
13062641
LH FRONT CALIPER -Gloss black-

Part#: 306264 Qty: 1

13062661
RH FRONT CALIPER -Gloss black-

Part#: 306266 Qty: 1

13062671
LH FRONT CALIPER -Scuderia Red-

Part#: 306267 Qty: 1

13062711
RH FRONT CALIPER -Scuderia Red-

Part#: 306271 Qty: 1

13062721
LH FRONT CALIPER -Gold-

Part#: 306272 Qty: 1

13062731
RH FRONT CALIPER -Gold-

Part#: 306273 Qty: 1

13062741
LH FRONT CALIPER -Blue-

Part#: 306274 Qty: 1

13062751
RH FRONT CALIPER -Blue-

Part#: 306275 Qty: 1

13062771
LH FRONT CALIPER -Silverstone grey-

Part#: 306277 Qty: 1

13062781
RH FRONT CALIPER -Silverstone grey-

Part#: 306278 Qty: 1

13062791
LH FRONT CALIPER -Aluminium-

Part#: 306279 Qty: 1

13062801
RH FRONT CALIPER -Aluminium-

Part#: 306280 Qty: 1

13062811
LH FRONT CALIPER -Corsa red-

Part#: 306281 Qty: 1

13062821
RH FRONT CALIPER -Corsa red-

Part#: 306282 Qty: 1

13062831
LH FRONT CALIPER -Yellow-

Part#: 306283 Qty: 1

13062841
RH FRONT CALIPER -Yellow-

Part#: 306284 Qty: 1

13062611
LH FRONT CALIPER -Anodised black-

Part#: 306261 Qty: 1

13062621
RH FRONT CALIPER -Anodised black-

Part#: 306262 Qty: 1

23056861
LH REAR CALIPER -Gloss black-

Part#: 305686 Qty: 1

23056871
RH REAR CALIPER -Gloss black-

Part#: 305687 Qty: 1

23056881
LH REAR CALIPER -Scuderia Red-

Part#: 305688 Qty: 1

23056891
RH REAR CALIPER -Scuderia Red-

Part#: 305689 Qty: 1

23056901
LH REAR CALIPER -Gold-

Part#: 305690 Qty: 1

23056911
RH REAR CALIPER -Gold-

Part#: 305691 Qty: 1

23056921
LH REAR CALIPER -Blue-

Part#: 305692 Qty: 1

23056931
RH REAR CALIPER -Blue-

Part#: 305693 Qty: 1

23056941
LH REAR CALIPER -Silverstone grey-

Part#: 305694 Qty: 1

23056951
RH REAR CALIPER -Silverstone grey-

Part#: 305695 Qty: 1

23056961
LH REAR CALIPER -Aluminium-

Part#: 305696 Qty: 1

23056971
RH REAR CALIPER -Aluminium-

Part#: 305697 Qty: 1

23056981
LH REAR CALIPER -Corsa red-

Part#: 305698 Qty: 1

23056991
RH REAR CALIPER -Corsa red-

Part#: 305699 Qty: 1

23057001
LH REAR CALIPER -Yellow-

Part#: 305700 Qty: 1

23057021
RH REAR CALIPER -Yellow-

Part#: 305702 Qty: 1

23056841
LH REAR CALIPER -Anodised black-

Part#: 305684 Qty: 1

23056851
RH REAR CALIPER -Anodised black-

Part#: 305685 Qty: 1

32919208
CALIPER FASTENER STUD -No longer supplied-

Part#: 291920 Qty: 8

41832438
CALIPER FASTENER NUT

Part#: 183243 Qty: 8

52919218
CALIPER FASTENER WASHER

Part#: 291921 Qty: 8

62924731
FRONT BRAKE PIPE FROM CALIPER TO LH HOSE

Part#: 292473 Qty: 1

62924741
FRONT BRAKE PIPE FROM CALIPER TO RH HOSE

Part#: 292474 Qty: 1

72995531
REAR BRAKE PIPE FROM CALIPER TO LH HOSE

Part#: 299553 Qty: 1

72995551
REAR BRAKE PIPE FROM CALIPER TO RH HOSE

Part#: 299555 Qty: 1

83073822
RUBBER PIPE

Part#: 307382 Qty: 2

91163748
CLIP
$3.92

Part#: 116374 Qty: 8$3.92

102517446
CLIP

Part#: 251744 Qty: 6

112881362
FRONT AIR DELIVERY PIPE
$189.22

Part#: 288136 Qty: 2$189.22

123060041
FRONT LH CALIPER HOUSING COVER

Part#: 306004 Qty: 1

123060051
RH FRONT CALIPER HOUSING COVER

Part#: 306005 Qty: 1

132813492
REAR AIR DELIVERY PIPE

Part#: 281349 Qty: 2

142623384
COLLAR -No longer supplied- -Replaced by 296782-

Part#: 262338 Qty: 4

142967824
COLLAR
$16.26

Part#: 296782 Qty: 4$16.26

153062091
AIR OUTLET ON LH HUB CARRIER

Part#: 306209 Qty: 1

153062101
AIR OUTLET ON RH HUB CARRIER

Part#: 306210 Qty: 1

162909122
CONNECTOR PIPE

Part#: 290912 Qty: 2

171430518714
SCREW

Part#: 14305187 Qty: 14

181264827814
WASHER

Part#: 12648278 Qty: 14

19114999242
STUD BOLT
$15.42

Part#: 11499924 Qty: 2$15.42

20143051878
SCREW

Part#: 14305187 Qty: 8

21144993248
WASHER

Part#: 14499324 Qty: 8

222965452
REAR CALIPER HOUSING COVER

Part#: 296545 Qty: 2

23855766001
REAR LH BRAKE COOLING PIPE

Part#: 85576600 Qty: 1

23855771001
REAR RH BRAKE COOLING PIPE

Part#: 85577100 Qty: 1

24130006904
SCREW COLLAR
$2.50

Part#: 13000690 Qty: 4$2.50

252876863
BRACKET WITH SHEATH

Part#: 287686 Qty: 3

262125191
STUD BOLT
$10.63

Part#: 212519 Qty: 1$10.63

27856293003
SCREW -M6 X 20-

Part#: 85629300 Qty: 3

282893141
COMPL. LH PARKING BRAKE CALIPER -No longer supplied-

Part#: 289314 Qty: 1

282893151
COMPL. RH PARKING BRAKE CALIPER -No longer supplied-

Part#: 289315 Qty: 1

29700031891
FRONT PAD SET WITH SPRING

Part#: 70003189 Qty: 1

30700031901
REAR PAD SET WITH SPRING

Part#: 70003190 Qty: 1

31700031911
SET OF EPB PADS
$1152.74

Part#: 70003191 Qty: 1$1152.74

322717112
RUBBER PIPE
$54.49

Part#: 271711 Qty: 2$54.49

33700034921
FRONT DUST GAITER KIT
$168.90

Part#: 70003492 Qty: 1$168.90

33700034931
REAR DUST GAITER KIT
$139.38

Part#: 70003493 Qty: 1$139.38
