Ferrari Philadelphia Parts

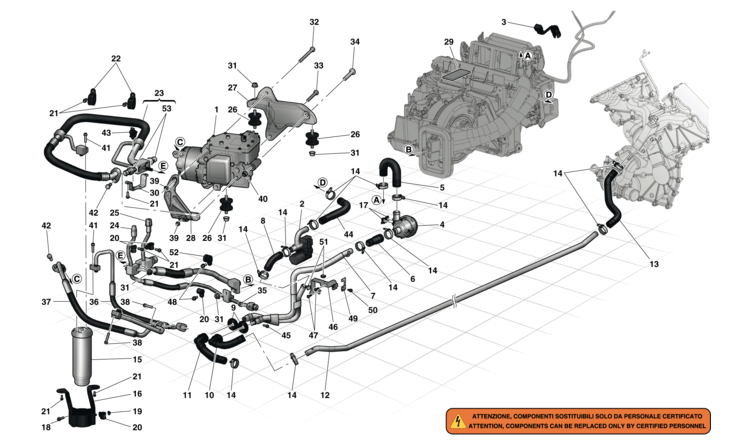

Table 41

Table 41 - AC SYSTEM

Ref.Part#Qty.DescriptionPrice
13046751
AIR CONDITIONING COMPRESSOR

Part#: 304675 Qty: 1

2676359001
RH CYLINDER BANK TGK VALVE
$307.25

Part#: 67635900 Qty: 1$307.25

32368471
TEMPERATURE SENSOR
$106.63

Part#: 236847 Qty: 1$106.63

42913491
IDLE WATER RECIRCULATION PUMP

Part#: 291349 Qty: 1

53028051
U-PIPE FROM PUMP TO AC UNIT

Part#: 302805 Qty: 1

62913321
IDLE PUMP INLET CONNECTOR PIPE

Part#: 291332 Qty: 1

73028131
WATER PIPE FROM TGK TO IDLE PUMP

Part#: 302813 Qty: 1

82407291
CONNECTOR PIPE

Part#: 240729 Qty: 1

9818959002
GASKET

Part#: 81895900 Qty: 2

102848001
AC HEATING PIPE CONNECTOR ELBOW ON CHASSIS BULKHEAD -Applicable until depletion-

Part#: 284800 Qty: 1

103082911
AC HEATING PIPE CONNECTOR ELBOW ON CHASSIS BULKHEAD -Applicable after depletion of 284800-

Part#: 308291 Qty: 1

112848111
CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE

Part#: 284811 Qty: 1

122847811
UNDERBODY WATER PIPE FOR AC HEATING

Part#: 284781 Qty: 1

132916711
FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY

Part#: 291671 Qty: 1

1426211012
COLLAR CLAMP -Applicable until depletion-

Part#: 262110 Qty: 12

1426210912
COLLAR CLAMP -Applicable after depletion of 262110-
$1.00

Part#: 262109 Qty: 12$1.00

15670851001
GAS FILTER
$71.89

Part#: 67085100 Qty: 1$71.89

162949241
DEHYDRATOR FILTER BRACKET

Part#: 294924 Qty: 1

17822686002
CLIP

Part#: 82268600 Qty: 2

183026551
ERGAL SCREW -M6 X 20-

Part#: 302655 Qty: 1

19130460141
NUT
$0.31

Part#: 13046014 Qty: 1$0.31

203023944
BRACKET WITH SHEATH

Part#: 302394 Qty: 4

213025748
ERGAL SCREW -M6 X 15-

Part#: 302574 Qty: 8

223029792
BRACKET WITH SHEATH -No longer supplied- -Replaced by 307048-

Part#: 302979 Qty: 2

223070482
BRACKET WITH SHEATH

Part#: 307048 Qty: 2

233011371
COMPL. GAS PIPE

Part#: 301137 Qty: 1

243049041
GAS DELIVERY PIPE

Part#: 304904 Qty: 1

253034791
GAS RETURN PIPE

Part#: 303479 Qty: 1

263036923
PLUG

Part#: 303692 Qty: 3

272986591
MOUNTING SHELL WITH 3 HOLES

Part#: 298659 Qty: 1

282986601
MOUNTING SHELL WITH 2 HOLES

Part#: 298660 Qty: 1

292952791
PLUG

Part#: 295279 Qty: 1

302966421
BRACKET FASTENING PIPES TO FRONT STRUT

Part#: 296642 Qty: 1

31140407115
NUT
$0.39

Part#: 14040711 Qty: 5$0.39

322986241
TITANIUM SCREW -M8 X 120-

Part#: 298624 Qty: 1

332986261
TITANIUM SCREW -M8 X 80-

Part#: 298626 Qty: 1

342986271
TITANIUM SCREW -M10 X 75-

Part#: 298627 Qty: 1

351940311
NUT
$1.00

Part#: 194031 Qty: 1$1.00

363040401
GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER

Part#: 304040 Qty: 1

373040391
GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR

Part#: 304039 Qty: 1

383026572
ERGAL SCREW -M6 X 30-

Part#: 302657 Qty: 2

391777782
NUT
$2.00

Part#: 177778 Qty: 2$2.00

401332161
NUT
$10.42

Part#: 133216 Qty: 1$10.42

413026562
ERGAL SCREW -M6 X 25-

Part#: 302656 Qty: 2

42160436242
SCREW -M8 X 25-
$0.90

Part#: 16043624 Qty: 2$0.90

432503181
CLIP

Part#: 250318 Qty: 1

443028121
CONNECTOR PIPE

Part#: 302812 Qty: 1

453027231
SCREW -M5 X 15-

Part#: 302723 Qty: 1

462948181
TGK VALVE FASTENER BRACKET

Part#: 294818 Qty: 1

47683919002
SCREW

Part#: 68391900 Qty: 2

482483342
SCREW

Part#: 248334 Qty: 2

491626061
CLIP
$1.47

Part#: 162606 Qty: 1$1.47

503026591
ERGAL SCREW -M5 X 10-

Part#: 302659 Qty: 1

51823292002
ANTI-VIBRATION RUBBER BLOCK

Part#: 82329200 Qty: 2

523031221
BRACKET WITH SHEATH

Part#: 303122 Qty: 1

53805524001
HIGH PRESSURE TRANSDUCER
$103.28

Part#: 80552400 Qty: 1$103.28

53862493001
LOW PRESSURE TRANSDUCER

Part#: 86249300 Qty: 1
