Ferrari Philadelphia Parts

Table 110

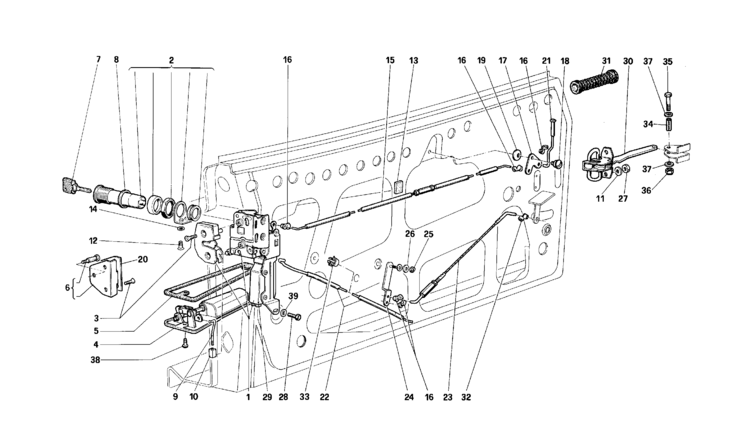

Table 110 - Door - Locking device

Ref.Part#Qty.DescriptionPrice
615453001
Locks set completed with steering lock and key -Not for USA, CDN, SA, J-

Part#: 61545300 Qty: 1

1642830
Locks set completed with steering lock and key -Valid for USA, CDN, SA, J-

Part#: 164283

1630949001
Lock for L.H. door complete
$831.45

Part#: 63094900 Qty: 1$831.45

1630948001
Lock for R.H. door complete

Part#: 63094800 Qty: 1

22
Lock -Not as spare part- -With the assembly 61545300 and 61545400-

Part#: Qty: 2

3627646008
Screw

Part#: 62764600 Qty: 8

4615067001
Outer handle for L.H. door

Part#: 61506700 Qty: 1

4615066001
Outer handle for R.H. door

Part#: 61506600 Qty: 1

5615069001
Gasket for L.H. handle

Part#: 61506900 Qty: 1

5615068001
Gasket for R.H. handle

Part#: 61506800 Qty: 1

6615065002
Lock striker complete
$87.82

Part#: 61506500 Qty: 2$87.82

7954011520
Blank key
$12.50

Part#: 95401152$12.50

8615072002
Lock gasket
$2.00

Part#: 61507200 Qty: 2$2.00

9615073002
Rod
$10.39

Part#: 61507300 Qty: 2$10.39

10615074002
Sleeve
$1.15

Part#: 61507400 Qty: 2$1.15

11126241014
Washer
$0.07

Part#: 12624101 Qty: 4$0.07

12132718114
Screw

Part#: 13271811 Qty: 4

13627828001
Sponge

Part#: 62782800 Qty: 1

14106152744
Washer
$0.15

Part#: 10615274 Qty: 4$0.15

15615076002
Rod
$4.67

Part#: 61507600 Qty: 2$4.67

161457828310
Clip
$0.75

Part#: 14578283 Qty: 10$0.75

17615077002
Lever

Part#: 61507700 Qty: 2

18627645002
Special screw

Part#: 62764500 Qty: 2

19125418742
Washer

Part#: 12541874 Qty: 2

20615078002
Striker protection
$10.50

Part#: 61507800 Qty: 2$10.50

21634025002
Security rod for door

Part#: 63402500 Qty: 2

22631016001
L.H. rod

Part#: 63101600 Qty: 1

22630947001
R.H. rod

Part#: 63094700 Qty: 1

23630935002
Rod

Part#: 63093500 Qty: 2

24615081002
Lever

Part#: 61508100 Qty: 2

25140842112
Nut
$0.66

Part#: 14084211 Qty: 2$0.66

26126437012
Washer

Part#: 12643701 Qty: 2

27125741154
Nut

Part#: 12574115 Qty: 4

28109778212
Screw

Part#: 10977821 Qty: 2

291500402
Locking device

Part#: 150040 Qty: 2

30615085002
Stop tie-rod for door
$318.40

Part#: 61508500 Qty: 2$318.40

311486542
Belows for electric cables

Part#: 148654 Qty: 2

32627739002
Spring

Part#: 62773900 Qty: 2

33145696802
Clip
$0.50

Part#: 14569680 Qty: 2$0.50

34607302002
Rod pin

Part#: 60730200 Qty: 2

35152104802
Screw

Part#: 15210480 Qty: 2

36627903002
Nut
$0.24

Part#: 62790300 Qty: 2$0.24

37636779004
Washer

Part#: 63677900 Qty: 4

38133129702
Screw

Part#: 13312970 Qty: 2

39135777012
Washer

Part#: 13577701 Qty: 2
