Table 118

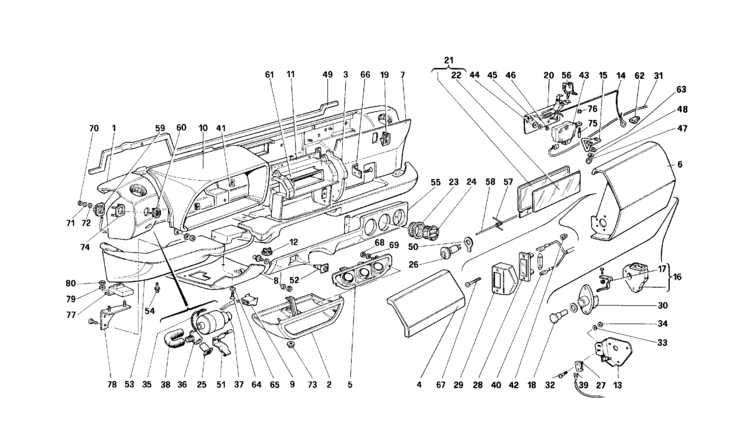

Table 118 - Dashboard

Ref.Part#Qty.DescriptionPrice
634584..1
Dash board assembly (with instrument seat) -Not for GD-

Part#: 634584.. Qty: 1

634655..1
Dash board assembly (with instrument seat) -Valid for GD-

Part#: 634655.. Qty: 1

634585..1
Dash board assembly (without instrument seat) -Not for GD-

Part#: 634585.. Qty: 1

654798..1
Dash board assembly (without instrument seat) -Valid for GD-

Part#: 654798.. Qty: 1

1630791..1
Dash board frame -Not for GD-

Part#: 630791.. Qty: 1

1631089..1
Dash board frame -Vale for GD-

Part#: 631089.. Qty: 1

2634546..1
Instruments panel -Valid till car Ass. Nr. 14459-

Part#: 634546.. Qty: 1

2636996..1
Instruments panel -Valid from car Ass. Nr. 14460-

Part#: 636996.. Qty: 1

3630853..1
R.H. side panel -Not for GD-

Part#: 630853.. Qty: 1

3631070..1
L.H. side panel -Valid for GD-

Part#: 631070.. Qty: 1

4630787..1
Radio box panel -Not for GD-

Part#: 630787.. Qty: 1

4631071..1
Radio box panel -Valid for GD-

Part#: 631071.. Qty: 1

5631163001
Instruments plate -Valid till car Ass. Nr. 14459- -Not for GD-

Part#: 63116300 Qty: 1

5639241001
Instruments plate -Valid from car Ass. Nr. 14460- -Not for GD-
$49.38

Part#: 63924100 Qty: 1$49.38

5634627001
Instruments plate -Valid for GD-

Part#: 63462700 Qty: 1

6634552..1
Glove box

Part#: 634552.. Qty: 1

7634548..1
Rear cover for glove box

Part#: 634548.. Qty: 1

8634130..1
Steering column cover -Valid till car Ass. Nr. 14459- -Not for USA-

Part#: 634130.. Qty: 1

8639247..1
Steering column cover -Valid from car Ass. Nr. 14460- -Not for USA-

Part#: 639247.. Qty: 1

8634103..1
Steering column cover -Valid for USA-

Part#: 634103.. Qty: 1

91194301
Sensor cable for internal temperature

Part#: 119430 Qty: 1

10630793..1
Housing instruments

Part#: 630793.. Qty: 1

11630792001
Air vent frame work -Not for GD-

Part#: 63079200 Qty: 1

11631067001
Air vent frame work -Vale for GD-

Part#: 63106700 Qty: 1

12615036002
Frame -For GD Q.ty 1-

Part#: 61503600 Qty: 2

13615545001
Bracket -Not for GD-

Part#: 61554500 Qty: 1

13615346001
Bracket -Valid for GD-

Part#: 61534600 Qty: 1

14615544001
Safety cable

Part#: 61554400 Qty: 1

15615546001
Lock striker

Part#: 61554600 Qty: 1

16615224001
R.H. dashboard box hinge

Part#: 61522400 Qty: 1

16615225001
L.H. dashboard box hinge

Part#: 61522500 Qty: 1

17615220002
Spring
$2.74

Part#: 61522000 Qty: 2$2.74

18615228002
Pin

Part#: 61522800 Qty: 2

19615547001
Frame

Part#: 61554700 Qty: 1

20615458001
Lock braket -Not for GD-
$175.20

Part#: 61545800 Qty: 1$175.20

20615457001
Lock braket -Valid for GD-

Part#: 61545700 Qty: 1

21615774..1
Mirror, complete

Part#: 615774.. Qty: 1

22615232001
Courtesy mirror
$48.81

Part#: 61523200 Qty: 1$48.81

23615285003
Air seat

Part#: 61528500 Qty: 3

24615286003
Air vent
$34.90

Part#: 61528600 Qty: 3$34.90

25610791001
Sensor for internal temperature

Part#: 61079100 Qty: 1

26615236001
Socket

Part#: 61523600 Qty: 1

27615237001
Switch

Part#: 61523700 Qty: 1

28616472002
Dash board box lamp

Part#: 61647200 Qty: 2

29615238002
Dash board box lamp frame

Part#: 61523800 Qty: 2

30615226001
R.H. mobile hinge

Part#: 61522600 Qty: 1

30634035001
L.H. mobile hinge

Part#: 63403500 Qty: 1

311244101
Socket cables

Part#: 124410 Qty: 1

32615241002
Screw

Part#: 61524100 Qty: 2

33615242002
Washer

Part#: 61524200 Qty: 2

34615243002
Nut

Part#: 61524300 Qty: 2

351200651
O-ring
$2.25

Part#: 120065 Qty: 1$2.25

36610792001
Box sensor

Part#: 61079200 Qty: 1

37610793001
Suction fan for sensor

Part#: 61079300 Qty: 1

381240391
Pipe from suction fan to sensor

Part#: 124039 Qty: 1

391244091
Switch cables

Part#: 124409 Qty: 1

401244111
Lamp cables

Part#: 124411 Qty: 1

41140841114
Nut

Part#: 14084111 Qty: 4

42141156804
Nut screw

Part#: 14115680 Qty: 4

43615231001
Lock magnet

Part#: 61523100 Qty: 1

44126437012
Washer

Part#: 12643701 Qty: 2

45105194012
Washer

Part#: 10519401 Qty: 2

46158962112
Nut

Part#: 15896211 Qty: 2

47140518492
Nut
$0.10

Part#: 14051849 Qty: 2$0.10

481610112
Washer

Part#: 161011 Qty: 2

49615543001
Dashboard support structure -Not for GD-

Part#: 61554300 Qty: 1

49631086001
Dashboard support structure -Valid for GD-

Part#: 63108600 Qty: 1

50607014001
Negative terminal

Part#: 60701400 Qty: 1

51610895001
Bracket

Part#: 61089500 Qty: 1

521497631
Parking lights switch -Not for cars with ABS-
$495.04

Part#: 149763 Qty: 1$495.04

521530411
ABS cut out push -Not for USA, CDN and AUS-
$52.90

Part#: 153041 Qty: 1$52.90

53634525..1
Knee protection -Valid till car Ass. Nr. 14459- -Not for USA and GD-

Part#: 634525.. Qty: 1

53636998..1
Knee protection -Valid from car Ass. Nr. 14460- -Not for USA and GD-

Part#: 636998.. Qty: 1

53634102..1
Knee protection -Valid for USA-

Part#: 634102.. Qty: 1

53634127..1
Knee protection -Valid for GD-

Part#: 634127.. Qty: 1

54600844071
Button
$11.90

Part#: 60084407 Qty: 1$11.90

55630790..1
Lower cover -Not for cars with ABS- -Not for GD-

Part#: 630790.. Qty: 1

55634603..1
Lower cover -Valid for cars with ABS- -Not for USA and CDN- -Not for GD-

Part#: 634603.. Qty: 1

55634604..1
Lower cover -Valid for USA and CDN-

Part#: 634604.. Qty: 1

55631068..1
Lower cover -Not for cars with ABS- -Valid for GD-

Part#: 631068.. Qty: 1

55634605..1
Lower cover -Valid for GD with ABS- -Not for AUS-

Part#: 634605.. Qty: 1

55634606..1
Lower cover -Valid for AUS with ABS-

Part#: 634606.. Qty: 1

56615456001
Glove box lock

Part#: 61545600 Qty: 1

57615775001
Clip

Part#: 61577500 Qty: 1

58615776001
Pin

Part#: 61577600 Qty: 1

591462162
Tweeter loudspeaker

Part#: 146216 Qty: 2

60630328002
Tweeter grill protection
$26.25

Part#: 63032800 Qty: 2$26.25

61615416001
Radio holder

Part#: 61541600 Qty: 1

62634350001
Hook

Part#: 63435000 Qty: 1

63126428072
Washer

Part#: 12642807 Qty: 2

64156907784
Screw

Part#: 15690778 Qty: 4

65627653004
Washer

Part#: 62765300 Qty: 4

66634226001
Bracket arrester box

Part#: 63422600 Qty: 1

67159086782
Screw
$1.12

Part#: 15908678 Qty: 2$1.12

68140841112
Nut

Part#: 14084111 Qty: 2

69126241012
Washer
$0.07

Part#: 12624101 Qty: 2$0.07

70161017118
Nut
$0.75

Part#: 16101711 Qty: 8$0.75

71106151708
Washer

Part#: 10615170 Qty: 8

72126394018
Washer

Part#: 12639401 Qty: 8

73140397148
Nut

Part#: 14039714 Qty: 8

74634227002
Plate

Part#: 63422700 Qty: 2

75634225001
Pin

Part#: 63422500 Qty: 1

76140840111
Nut
$0.03

Part#: 14084011 Qty: 1$0.03

771560861
ABS cut out central unit
$527.29

Part#: 156086 Qty: 1$527.29

781539831
Bracket

Part#: 153983 Qty: 1

79144962772
Washer
$0.84

Part#: 14496277 Qty: 2$0.84

80107940112
Nut
$0.03

Part#: 10794011 Qty: 2$0.03
