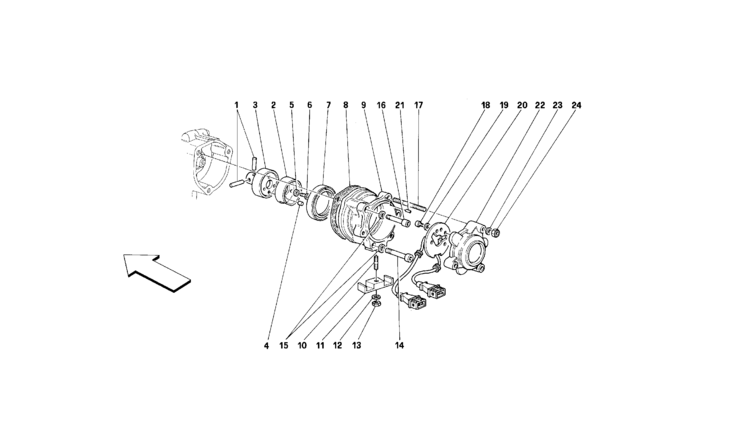

Table 12 - Engine ignition
Ref. | Part# | Qty. | Description | Price |
---|
1 | 132355 | 2 | Pin | $102.85 | | |
Part#: 132355 Qty: 2$102.85 |
2 | | 1 | Timer -Not as spare parts- -With complete phase sensor 146233- | | | |
Part#: Qty: 1 |
3 | 142864 | 1 | Camshaft joint | | | |
Part#: 142864 Qty: 1 |
4 | 10486110 | 1 | Pin | $25.29 | | |
Part#: 10486110 Qty: 1$25.29 |
5 | 12604070 | 3 | Washer | | | |
Part#: 12604070 Qty: 3 |
6 | 10374721 | 3 | Screw | | | |
Part#: 10374721 Qty: 3 |
7 | 149917 | 1 | Ring | $41.31 | | |
Part#: 149917 Qty: 1$41.31 |
8 | 150198 | 1 | Gasket | $26.25 | | |
Part#: 150198 Qty: 1$26.25 |
9 | 148790 | 1 | Phase sensor support | | | |
Part#: 148790 Qty: 1 |
10 | 11001224 | 1 | Stud bolt | | | |
Part#: 11001224 Qty: 1 |
11 | 146654 | 1 | Support | | | |
Part#: 146654 Qty: 1 |
12 | 11199279 | 1 | Washer | | | |
Part#: 11199279 Qty: 1 |
13 | 15896470 | 1 | Nut | $2.27 | | |
Part#: 15896470 Qty: 1$2.27 |
14 | 14305621 | 2 | Screw | | | |
Part#: 14305621 Qty: 2 |
15 | 12604279 | 3 | Washer | | | |
Part#: 12604279 Qty: 3 |
16 | 14305521 | 1 | Screw | | | |
Part#: 14305521 Qty: 1 |
17 | 13539824 | 3 | Stud bolt | | | |
Part#: 13539824 Qty: 3 |
18 | 14418131 | 2 | Screw | | | |
Part#: 14418131 Qty: 2 |
19 | 12600479 | 2 | Washer | | | |
Part#: 12600479 Qty: 2 |
20 | 146233 | 1 | Complete phase sensor | $1235.14 | | |
Part#: 146233 Qty: 1$1235.14 |
21 | 10331010 | 1 | Pin | | | |
Part#: 10331010 Qty: 1 |
22 | 146232 | 1 | Cover | | | |
Part#: 146232 Qty: 1 |
23 | 10519377 | 3 | Washer | | | |
Part#: 10519377 Qty: 3 |
24 | 12577811 | 3 | Nut | | | |
Part#: 12577811 Qty: 3 |
