Ferrari Philadelphia Parts

Table 2

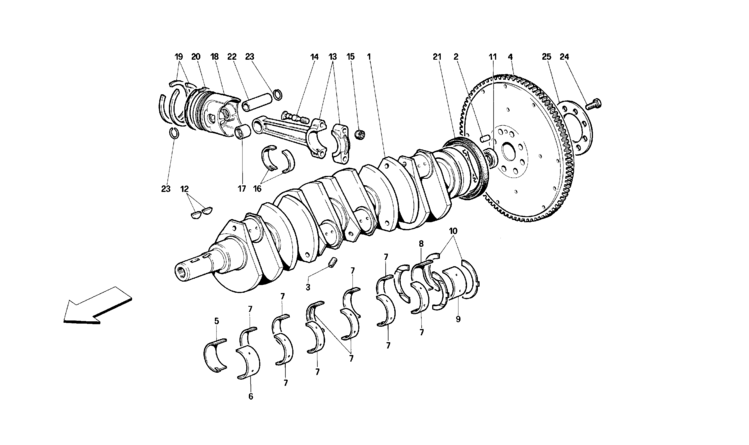

Table 2 - Crankshaft - Connecting rods and pistons

Ref.Part#Qty.DescriptionPrice
1086031
Half bearing set -Standard-

Part#: 108603 Qty: 1

1086041
Half bearing set -1st undersize 0.254 mm-

Part#: 108604 Qty: 1

1086051
Half bearing set -2nd undersize 0.508 mm-

Part#: 108605 Qty: 1

10973812
Connecting rod, complete
$842.62

Part#: 109738 Qty: 12$842.62

12153112
Set of segments
$245.85

Part#: 121531 Qty: 12$245.85

11209021
Crankshaft

Part#: 120902 Qty: 1

21001851
Dowel
$28.53

Part#: 100185 Qty: 1$28.53

31432615012
Plug
$1.25

Part#: 14326150 Qty: 12$1.25

41389001
Flywheel compl.
$4901.77

Part#: 138900 Qty: 1$4901.77

51
Right front half bearing -With complete series-

Part#: Qty: 1

61
Left front half bearing -With complete series-

Part#: Qty: 1

710
Right and left interm. half bearing -With complete series-

Part#: Qty: 10

81
Right rear half bearing -With complete series-

Part#: Qty: 1

91
Left rear half bearing -With complete series-

Part#: Qty: 1

101001462
Shim for rear support
$35.13

Part#: 100146 Qty: 2$35.13

101139840
1st oversize 0.127 mm
$17.00

Part#: 113984$17.00

101001470
2nd oversize 0.250 mm
$19.79

Part#: 100147$19.79

111038771
Bearing for clutch shaft support
$29.99

Part#: 103877 Qty: 1$29.99

12102065202
Feather key on crankshaft
$5.41

Part#: 10206520 Qty: 2$5.41

1310968812
Connecting rod, and cap -Not as spare part- -With assembly 109738-

Part#: 109688 Qty: 12

1410015624
Connecting rod tightening screw
$26.20

Part#: 100156 Qty: 24$26.20

1510401124
Nut for connecting rod tightening screw
$14.50

Part#: 104011 Qty: 24$14.50

1610015024
Connecting rod half bearing

Part#: 100150 Qty: 24

161001510
1st undersize 0.254 mm. on D.
$90.59

Part#: 100151$90.59

161001520
2nd undersize 0.508 mm. on D.

Part#: 100152

1710710012
Bush for gudgeon pin
$38.50

Part#: 107100 Qty: 12$38.50

1813964912
Piston, complete
$475.00

Part#: 139649 Qty: 12$475.00

1911985024
AC seal ring (1st and 2nd groove) -Not as spare part- -With set 121531-

Part#: 119850 Qty: 24

2011985112
ROF scraper ring (3rd groove) -Not as spare part- -With set 121531-

Part#: 119851 Qty: 12

211383911
Sealing ring
$98.03

Part#: 138391 Qty: 1$98.03

2211953712
Gudgeon pin
$215.00

Part#: 119537 Qty: 12$215.00

2310017424
Ring for gudgeon pin
$8.50

Part#: 100174 Qty: 24$8.50

241038758
Flywheel securing screw

Part#: 103875 Qty: 8

251086621
Safety plate
$34.29

Part#: 108662 Qty: 1$34.29
