Ferrari Philadelphia Parts

Table 11

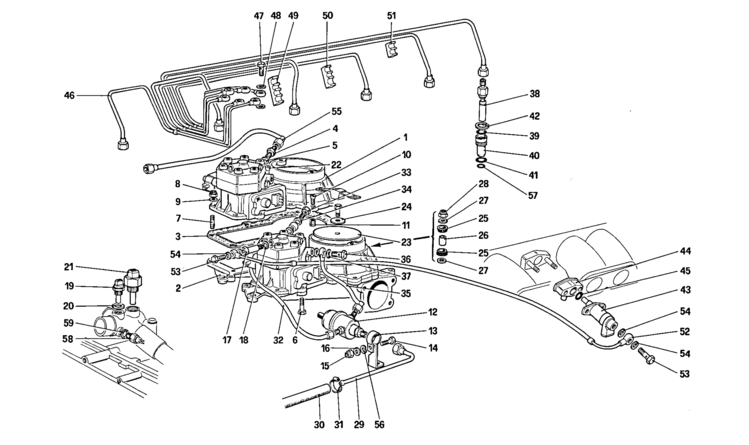

Table 11 - Fuel distributors lines KE-Jetronic system

Ref.Part#Qty.DescriptionPrice
1700006422
Metering device

Part#: 70000642 Qty: 2

1216941
Support for metering devices, compl.

Part#: 121694 Qty: 1

21230681
Support for metering devices With assembly no. 121694

Part#: 123068 Qty: 1

31349461
Gasket - With Amianthus
$34.88

Part#: 134946 Qty: 1$34.88

31349461
Gasket - Without Amianthus
$34.88

Part#: 134946 Qty: 1$34.88

41154982
Union with filter

Part#: 115498 Qty: 2

5112701602
Gasket
$1.80

Part#: 11270160 Qty: 2$1.80

6109025214
Bolt

Part#: 10902521 Qty: 4

7135409218
Stud
$0.48

Part#: 13540921 Qty: 8$0.48

810274112
Selflocking nut
$0.75

Part#: 102741 Qty: 12$0.75

91260127112
Washer

Part#: 12601271 Qty: 12

10202983038
Screw
$2.97

Part#: 20298303 Qty: 8$2.97

11135254708
Heli-coil
$2.50

Part#: 13525470 Qty: 8$2.50

121251362
Pressure regulator
$1003.49

Part#: 125136 Qty: 2$1003.49

131257702
Pressure regulator support

Part#: 125770 Qty: 2

14109024242
Bolt
$1.00

Part#: 10902424 Qty: 2$1.00

15125742212
Selflocking nut
$2.02

Part#: 12574221 Qty: 2$2.02

16126042712
Washer

Part#: 12604271 Qty: 2

171136602
Fitting

Part#: 113660 Qty: 2

18143302602
Washer
$0.89

Part#: 14330260 Qty: 2$0.89

191217201
Water temperature sensor
$260.23

Part#: 121720 Qty: 1$260.23

20102984601
Gasket
$1.00

Part#: 10298460 Qty: 1$1.00

211187901
Thermo time switch
$485.39

Part#: 118790 Qty: 1$485.39

221215712
Cap for idling adjusting screw
$27.65

Part#: 121571 Qty: 2$27.65

231244082
Air sensor plate

Part#: 124408 Qty: 2

241208092
Supporting washer
$60.41

Part#: 120809 Qty: 2$60.41

251231348
Pad
$22.65

Part#: 123134 Qty: 8$22.65

261231354
Distance tube

Part#: 123135 Qty: 4

271067448
Washer
$8.64

Part#: 106744 Qty: 8$8.64

28125742114
Nut

Part#: 12574211 Qty: 4

291258461
L.H. return pipe

Part#: 125846 Qty: 1

1258761
R.H. return pipe

Part#: 125876 Qty: 1

301167701
R.H. pipe
$33.38

Part#: 116770 Qty: 1$33.38

1167691
L.H. pipe

Part#: 116769 Qty: 1

31121794904
Clamp

Part#: 12179490 Qty: 4

321257751
Delivery pipe
$278.89

Part#: 125775 Qty: 1$278.89

1257741
Delivery pipe
$69.37

Part#: 125774 Qty: 1$69.37

331116442
Fitting
$27.50

Part#: 111644 Qty: 2$27.50

34102961604
Gasket

Part#: 10296160 Qty: 4

351258301
Return pipe

Part#: 125830 Qty: 1

1258291
Return pipe

Part#: 125829 Qty: 1

361136702
Fitting

Part#: 113670 Qty: 2

37102601604
Gasket
$0.90

Part#: 10260160 Qty: 4$0.90

3811397512
Injector
$89.85

Part#: 113975 Qty: 12$89.85

3911357012
Seal ring
$7.10

Part#: 113570 Qty: 12$7.10

4012333612
Injector holding bush

Part#: 123336 Qty: 12

4110103112
Garter ring
$4.56

Part#: 101031 Qty: 12$4.56

4210332612
Stop ring
$0.21

Part#: 103326 Qty: 12$0.21

431139792
Cold start injector

Part#: 113979 Qty: 2

441210562
Injector connecting union

Part#: 121056 Qty: 2

451030392
Seal ring
$1.45

Part#: 103039 Qty: 2$1.45

461257881
Shaped fuel from metering device to injector of no. 1 cylinder

Part#: 125788 Qty: 1

1257891
Shaped fuel from metering device to injector of no. 2 cylinder

Part#: 125789 Qty: 1

1257901
Shaped fuel from metering device to injector of no. 3 cylinder
$222.36

Part#: 125790 Qty: 1$222.36

1257911
Shaped fuel from metering device to injector of no. 4 cylinder

Part#: 125791 Qty: 1

1257921
Shaped fuel from metering device to injector of no. 5 cylinder

Part#: 125792 Qty: 1

1257931
Shaped fuel from metering device to injector of no. 6 cylinder

Part#: 125793 Qty: 1

1257941
Shaped fuel from metering device to injector of no. 7 cylinder
$270.39

Part#: 125794 Qty: 1$270.39

1257951
Shaped fuel from metering device to injector of no. 8 cylinder

Part#: 125795 Qty: 1

1257961
Shaped fuel from metering device to injector of no. 9 cylinder

Part#: 125796 Qty: 1

1257971
Shaped fuel from metering device to injector of no. 10 cylinder

Part#: 125797 Qty: 1

1257981
Shaped fuel from metering device to injector of no. 11 cylinder
$249.83

Part#: 125798 Qty: 1$249.83

1257991
Shaped fuel from metering device to injector of no. 12 cylinder

Part#: 125799 Qty: 1

4711367012
Union

Part#: 113670 Qty: 12

481026016024
Copper washer
$0.90

Part#: 10260160 Qty: 24$0.90

491138962
4-way pipe supporting clamp
$9.25

Part#: 113896 Qty: 2$9.25

5011389611
3-way pipe supporting clamp
$9.25

Part#: 113896 Qty: 11$9.25

511138962
2-way pipe supporting clamp
$9.25

Part#: 113896 Qty: 2$9.25

521258841
Shaped fuel pipe for L.H. cold start injector

Part#: 125884 Qty: 1

1258791
Shaped fuel pipe for R.H. cold start injector

Part#: 125879 Qty: 1

531136644
Union
$29.04

Part#: 113664 Qty: 4$29.04

54143302608
Gasket
$0.89

Part#: 14330260 Qty: 8$0.89

551365971
Pipe connecting filter to right metering
$2498.48

Part#: 136597 Qty: 1$2498.48

1284991
Pipe connecting filter to left metering

Part#: 128499 Qty: 1

56126013712
Washer

Part#: 12601371 Qty: 2

10103012
Garter ring

Part#: 101030 Qty: 12

581258781
Bimetallic thermoswitch

Part#: 125878 Qty: 1

59102600601
Gasket
$1.82

Part#: 10260060 Qty: 1$1.82
