Ferrari Philadelphia Parts

Table 114

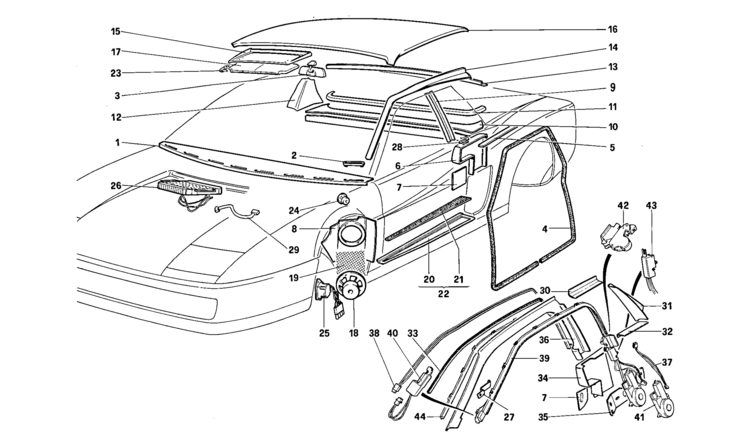

Table 114 - Accessories and trims

Ref.Part#Qty.DescriptionPrice
1615121001
Windshield lower trim

Part#: 61512100 Qty: 1

2615122007
Air outlet

Part#: 61512200 Qty: 7

3628501001
Inner rear view mirror

Part#: 62850100 Qty: 1

43610003652
Door gasket
$19.25

Part#: 361000365 Qty: 2$19.25

5615125001
Left side trim -Not for US

Part#: 61512500 Qty: 1

615124001
Right side trim -Not for US

Part#: 61512400 Qty: 1

6615127001
Left side rear panel -Not for US

Part#: 61512700 Qty: 1

615126001
Right side rear panel -Not for US

Part#: 61512600 Qty: 1

7615129001
Left side panel -Not for US

Part#: 61512900 Qty: 1

615128001
Right side panel -Not for US

Part#: 61512800 Qty: 1

7615587001
Left side panel - For US

Part#: 61558700 Qty: 1

615586001
Right side panel - For US

Part#: 61558600 Qty: 1

8615131001
Left side front panel LHD -Not for US

Part#: 61513100 Qty: 1

615130001
Right side front panel LHD -Not for US

Part#: 61513000 Qty: 1

615507001
L.H. side front panel - For US

Part#: 61550700 Qty: 1

615506001
R.H. side front panel For US

Part#: 61550600 Qty: 1

615342001
Left side front panel RHD

Part#: 61534200 Qty: 1

615343001
Right side front panel RHD

Part#: 61534300 Qty: 1

9615133001
Trim for left central fender -Not for US

Part#: 61513300 Qty: 1

615132001
Trim for right central fender -Not for US

Part#: 61513200 Qty: 1

9615566001
Trim for left central fender - For US

Part#: 61556600 Qty: 1

615565001
Trim for right central fender - For US

Part#: 61556500 Qty: 1

10615134001
Rear window plane

Part#: 61513400 Qty: 1

11615135001
Rear window lower trim

Part#: 61513500 Qty: 1

12615137001
Trim for rear left fender -Not for US

Part#: 61513700 Qty: 1

615136001
Trim for rear right fender -Not for US

Part#: 61513600 Qty: 1

13615138001
Rear window upper trim -Not for US

Part#: 61513800 Qty: 1

615567001
Rear window upper trim - For US

Part#: 61556700 Qty: 1

14615140001
Trim for roof left side -Not for US

Part#: 61514000 Qty: 1

615139001
Trim for roof right side -Not for US

Part#: 61513900 Qty: 1

15615143001
Right windshield upper trim

Part#: 61514300 Qty: 1

615144001
Left windshield upper trim

Part#: 61514400 Qty: 1

16615145001
Inner roof

Part#: 61514500 Qty: 1

17615146001
Right sun visor

Part#: 61514600 Qty: 1

615147001
Left sun visor

Part#: 61514700 Qty: 1

18624330002
Loudspeaker - Until exhaustion

Part#: 62433000 Qty: 2

624330002
Loudspeaker (After exhaustion PN 61643800) - Until car no. 85011

Part#: 62433000 Qty: 2

1462172
Loudspeaker - From car no. 85012

Part#: 146217 Qty: 2

19615148002
Loudspeaker grill

Part#: 61514800 Qty: 2

20615150001
Frame for left underdoor moulding
$145.90

Part#: 61515000 Qty: 1$145.90

615149001
Frame for right underdoor moulding

Part#: 61514900 Qty: 1

21615152001
Rubber insert for left underdoor moulding
$185.36

Part#: 61515200 Qty: 1$185.36

615151001
Rubber insert for right underdoor moulding
$175.20

Part#: 61515100 Qty: 1$175.20

22630741001
Left underdoor moulding, complete

Part#: 63074100 Qty: 1

630074001
Right underdoor moulding, complete

Part#: 63007400 Qty: 1

23615155002
Right sun visor support
$44.15

Part#: 61515500 Qty: 2$44.15

615156002
Left sun visor support
$44.15

Part#: 61515600 Qty: 2$44.15

24624627002
Tweeter - Until exhaustion

Part#: 62462700 Qty: 2

624627002
Tweeter (Alter exhaustion PN 61643900) - Until car no. B5011

Part#: 62462700 Qty: 2

1462162
Tweeter - From car no. 85012

Part#: 146216 Qty: 2

25616440002
Loudspeaker inter - Until car no. 85011

Part#: 61644000 Qty: 2

26625156002
Amplifier (Not for US - SA - J - CH)

Part#: 62515600 Qty: 2

623680002
Amplifier (For SA - CH)

Part#: 62368000 Qty: 2

27615711003
Clip for R.H. moulding - US

Part#: 61571100 Qty: 3

615712003
Clip for L.H. moulding - US

Part#: 61571200 Qty: 3

28615472002
Seat belts frame

Part#: 61547200 Qty: 2

29623681001
Radio - amplifier cable

Part#: 62368100 Qty: 1

30615564001
L.H. moulding for US

Part#: 61556400 Qty: 1

615563001
R.H. moulding for US

Part#: 61556300 Qty: 1

31615517001
L.H. moulding for US

Part#: 61551700 Qty: 1

615516001
R.H. moulding for US

Part#: 61551600 Qty: 1

32615511001
L.H. moulding for US

Part#: 61551100 Qty: 1

615510001
R.H. moulding for US

Part#: 61551000 Qty: 1

33615611002
Upper gasket - For US

Part#: 61561100 Qty: 2

615612002
Lower gasket - For US

Part#: 61561200 Qty: 2

34615509001
L.H. moulding for US

Part#: 61550900 Qty: 1

615508001
R.H. moulding for US

Part#: 61550800 Qty: 1

35615571001
L.H. bracket for US

Part#: 61557100 Qty: 1

615570001
R.H. bracket for US

Part#: 61557000 Qty: 1

36615515001
L.H. bracket for US

Part#: 61551500 Qty: 1

615514001
R.H. bracket for US

Part#: 61551400 Qty: 1

37615629002
Cables for motor for US

Part#: 61562900 Qty: 2

38615630002
Cables for guide for US

Part#: 61563000 Qty: 2

615690001
Passive belts, assy.

Part#: 61569000 Qty: 1

39657792001
R.H. passive belt, complete
$950.00

Part#: 65779200 Qty: 1$950.00

657793001
L.H. passive belt, complete

Part#: 65779300 Qty: 1

40615605002
''A'' station for US
$230.55

Part#: 61560500 Qty: 2$230.55

41657792001
R.H. drive motor for US
$950.00

Part#: 65779200 Qty: 1$950.00

657793001
L.H. drive motor for US

Part#: 65779300 Qty: 1

42615613002
Slider for US
$373.76

Part#: 61561300 Qty: 2$373.76

43NLA2
''8'' station for US

Part#: NLA Qty: 2

44615609001
R.H. guide for passive belt for US

Part#: 61560900 Qty: 1

615610001
L.H. guide for passive belt for US

Part#: 61561000 Qty: 1
