Ferrari Philadelphia Parts

Table 43

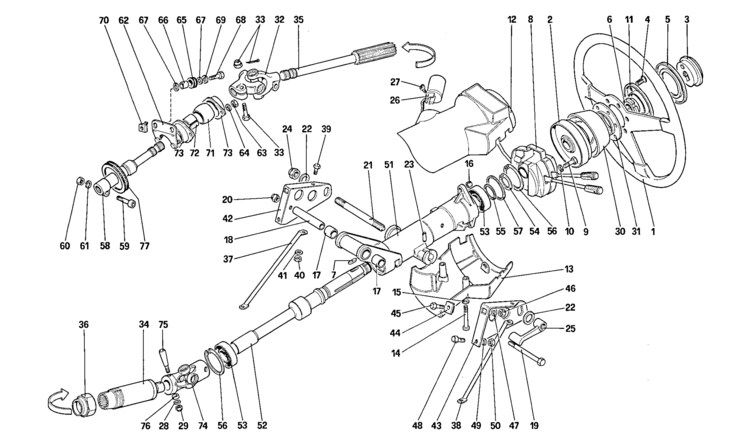

Table 43 - Steering column - Starting from car no. 75997 to car no. 80422

Ref.Part#Qty.DescriptionPrice
11190361
Steering wheel

Part#: 119036 Qty: 1

21222441
Steering wheel hub

Part#: 122244 Qty: 1

31308991
Horn push button with holder
$200.00

Part#: 130899 Qty: 1$200.00

41111896
Screw
$5.88

Part#: 111189 Qty: 6$5.88

51190401
Ring nut to cover screw

Part#: 119040 Qty: 1

61016481
Ring nut
$4.55

Part#: 101648 Qty: 1$4.55

71011061
Key
$1.00

Part#: 101106 Qty: 1$1.00

81215611
Main switching unit

Part#: 121561 Qty: 1

9103902112
Screw

Part#: 10390211 Qty: 2

10126012712
Washer

Part#: 12601271 Qty: 2

111365072
Ring nut for push

Part#: 136507 Qty: 2

121215801
Upper steering column cover

Part#: 121580 Qty: 1

131215811
Lower steering column cover

Part#: 121581 Qty: 1

14132752172
Screw

Part#: 13275217 Qty: 2

15126011742
Washer
$0.26

Part#: 12601174 Qty: 2$0.26

16135251702
Heli coil

Part#: 13525170 Qty: 2

171215882
Bush

Part#: 121588 Qty: 2

181215891
Pipe for steering wheel adjusting pivot

Part#: 121589 Qty: 1

19160450241
Screw
$2.53

Part#: 16045024 Qty: 1$2.53

20161044211
Selflocking nut

Part#: 16104421 Qty: 1

211209881
Spindle for lever

Part#: 120988 Qty: 1

221148652
Washer

Part#: 114865 Qty: 2

23141638701
Pin

Part#: 14163870 Qty: 1

24161051211
Selflocking nut

Part#: 16105121 Qty: 1

251215901
Shaft locking lever

Part#: 121590 Qty: 1

261291161
Anti-theft device -Not for US and SA

Part#: 129116 Qty: 1

261642831
Anti-theft device -Not for US and SA

Part#: 164283 Qty: 1

271216111
Screw

Part#: 121611 Qty: 1

28105194012
Washer

Part#: 10519401 Qty: 2

29125742212
Dado autobloccante
$2.02

Part#: 12574221 Qty: 2$2.02

301230981
Hub cover

Part#: 123098 Qty: 1

311230991
Horn retaining plate

Part#: 123099 Qty: 1

321033431
Lower joint In alternative use no 108362

Part#: 103343 Qty: 1

331050321
Assembly for lower joint

Part#: 105032 Qty: 1

341164841
Guide pipe

Part#: 116484 Qty: 1

351085571
Lower steering shaft

Part#: 108557 Qty: 1

351068701
Adjusting nut
$22.37

Part#: 106870 Qty: 1$22.37

371233821
Right tie rod

Part#: 123382 Qty: 1

381233831
Left tie rod

Part#: 123383 Qty: 1

39109021214
Screw

Part#: 10902121 Qty: 4

40158962114
Nut

Part#: 15896211 Qty: 4

411068504
Washer

Part#: 106850 Qty: 4

421209901
Right bracket

Part#: 120990 Qty: 1

431209911
Left bracket

Part#: 120991 Qty: 1

441248262
Safety plate

Part#: 124826 Qty: 2

45109021212
Screw

Part#: 10902121 Qty: 2

46158962112
Nut

Part#: 15896211 Qty: 2

471068502
Washer

Part#: 106850 Qty: 2

48160432212
Screw
$0.10

Part#: 16043221 Qty: 2$0.10

49161003112
Nut

Part#: 16100311 Qty: 2

501068522
Washer

Part#: 106852 Qty: 2

511360241
Steering column support

Part#: 136024 Qty: 1

521360281
Upper steering shaft After exhaustion use no. 136028

Part#: 136028 Qty: 1

531340612
Bearing
$20.85

Part#: 134061 Qty: 2$20.85

54110668761
Seeger ring
$0.35

Part#: 11066876 Qty: 1$0.35

551340701
Shim 1 mm. Possible mounting

Part#: 134070 Qty: 1

1340711
Ditto thickness 1,1 mm.

Part#: 134071 Qty: 1

1340721
Ditto thickness 1,2 mm.

Part#: 134072 Qty: 1

1340731
Ditto thickness 1,3 mm.

Part#: 134073 Qty: 1

1340741
Ditto thickness 1,4 mm.

Part#: 134074 Qty: 1

56110660752
Seeger ring

Part#: 11066075 Qty: 2

571340651
Shim thickness 1 mm. Possible mounting

Part#: 134065 Qty: 1

1340661
Ditto thickness 1,1 mm.

Part#: 134066 Qty: 1

1340671
Ditto thickness 1.2 mm.

Part#: 134067 Qty: 1

1340681
Ditto thickness 1,3 mm.

Part#: 134068 Qty: 1

1340691
Ditto thickness 1,4 mm.

Part#: 134069 Qty: 1

581235171
Steering box extension

Part#: 123517 Qty: 1

591255181
Screw

Part#: 125518 Qty: 1

601255191
Nut
$1.70

Part#: 125519 Qty: 1$1.70

61126012792
Washer
$0.07

Part#: 12601279 Qty: 2$0.07

621235161
Extension support

Part#: 123516 Qty: 1

63125742112
Nut

Part#: 12574211 Qty: 2

64105194012
Washer

Part#: 10519401 Qty: 2

651035492
Pad
$1.80

Part#: 103549 Qty: 2$1.80

661035502
Bushing
$3.25

Part#: 103550 Qty: 2$3.25

67126406014
Washer

Part#: 12640601 Qty: 4

68109027212
Screw

Part#: 10902721 Qty: 2

691068502
Washer

Part#: 106850 Qty: 2

70607586002
Caged nut
$1.55

Part#: 60758600 Qty: 2$1.55

711032971
Ball

Part#: 103297 Qty: 1

721033701
Bush

Part#: 103370 Qty: 1

731032922
Flange
$21.22

Part#: 103292 Qty: 2$21.22

741125721
Upper joint

Part#: 112572 Qty: 1

751125731
Taper pin
$69.25

Part#: 112573 Qty: 1$69.25

761125711
Spacer

Part#: 112571 Qty: 1

771124661
Fair-lead

Part#: 112466 Qty: 1
