Ferrari Philadelphia Parts

Table 55

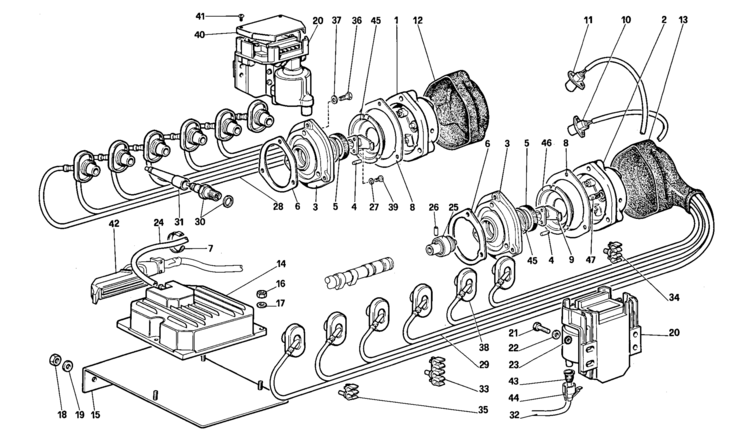

Table 55 - Engine ignition

Ref.Part#Qty.DescriptionPrice
11446381
R.H. distributor cap After exhaustion and for CAT. use no. 144637
$986.96

Part#: 144638 Qty: 1$986.96

21446381
L.H. distributor cap After exhaustion and for CAT. use no. 144638
$986.96

Part#: 144638 Qty: 1$986.96

31331002
Distributor cap support Until exhaustion
$276.51

Part#: 133100 Qty: 2$276.51

1333461
R.H. distributor cap support After exhaustion no. 126115

Part#: 133346 Qty: 1

1333471
L.H. distributor cap support After exhaustion no. 126115

Part#: 133347 Qty: 1

4103311112
Dowel
$0.75

Part#: 10331111 Qty: 2$0.75

51324522
Oil seal ring
$40.00

Part#: 132452 Qty: 2$40.00

61501982
Gasket - With Amianthus
$26.25

Part#: 150198 Qty: 2$26.25

61501982
Gasket - Without Amianthus
$26.25

Part#: 150198 Qty: 2$26.25

71103813
Clamp

Part#: 110381 Qty: 3

81194092
Gasket
$9.05

Part#: 119409 Qty: 2$9.05

91261392
Rotor arm
$132.42

Part#: 126139 Qty: 2$132.42

101190521
Angular speed sensor
$185.00

Part#: 119052 Qty: 1$185.00

111242411
Dead center pick-up sensor
$108.79

Part#: 124241 Qty: 1$108.79

121395401
R.H. distributor cap boot After exhaustion and for CAT. use no. 139540
$352.55

Part#: 139540 Qty: 1$352.55

131395411
L.H. distributor cap boot After exhaustion and for CAT. use no. 139541
$309.57

Part#: 139541 Qty: 1$309.57

141258281
Ignition module - For C7 After exhaustion and for CAT. use no. 144242

Part#: 125828 Qty: 1

151243911
Ignition module securing plate

Part#: 124391 Qty: 1

15125742113
Nut

Part#: 12574211 Qty: 3

17126397013
Washer

Part#: 12639701 Qty: 3

18125742112
Nut

Part#: 12574211 Qty: 2

19126397012
Washer

Part#: 12639701 Qty: 2

201242732
Power module with coil Not for CAT.
$950.00

Part#: 124273 Qty: 2$950.00

201434132
Power module with coil For CAT.
$1025.97

Part#: 143413 Qty: 2$1025.97

21109023274
Screw

Part#: 10902327 Qty: 4

22126437014
Washer

Part#: 12643701 Qty: 4

23106154714
Tab washer
$0.35

Part#: 10615471 Qty: 4$0.35

241227621
Ignition module depression hose

Part#: 122762 Qty: 1

251330632
Coupling on camshaft

Part#: 133063 Qty: 2

261323552
Spring pin
$102.85

Part#: 132355 Qty: 2$102.85

27125440716
Washer
$0.02

Part#: 12544071 Qty: 6$0.02

231241711
Set of R.H. ignition cables

Part#: 124171 Qty: 1

291241721
Set of L.H. ignition cables

Part#: 124172 Qty: 1

3015018012
Spark plug CHAMPION A-6G After exhaustion and for CAT. use no. 131922
$30.57

Part#: 150180 Qty: 12$30.57

3013942512
Spark plug Bosch X R4CS In alternative
$9.85

Part#: 139425 Qty: 12$9.85

3112479212
Extension for spark plugs cables
$25.00

Part#: 124792 Qty: 12$25.00

321211752
Cable from coil to distributor cap
$48.20

Part#: 121175 Qty: 2$48.20

331217882
4 - cable support clip
$6.50

Part#: 121788 Qty: 2$6.50

341217898
3 - cable support clip
$7.50

Part#: 121789 Qty: 8$7.50

351217904
2 - cables support clip
$14.50

Part#: 121790 Qty: 4$14.50

36109023242
Screw
$0.50

Part#: 10902324 Qty: 2$0.50

37111977742
Washer
$0.49

Part#: 11197774 Qty: 2$0.49

3812152712
Spark plug cap
$68.50

Part#: 121527 Qty: 12$68.50

39104445216
Screw
$0.50

Part#: 10444521 Qty: 6$0.50

401281692
Protection for power module

Part#: 128169 Qty: 2

41159218074
Screw

Part#: 15921807 Qty: 4

42619169001
25 way connector

Part#: 61916900 Qty: 1

431229702
Cap

Part#: 122970 Qty: 2

441296202
Protection
$25.68

Part#: 129620 Qty: 2$25.68

451330662
Spacer For distributor cap support no. 126115
$47.94

Part#: 133066 Qty: 2$47.94

461329072
Cover - Starting from engine no. 15098 - 15269 US

Part#: 132907 Qty: 2

471405672
Solid carbon with spring - For distributor cap no. 121552 and 124575
$35.75

Part#: 140567 Qty: 2$35.75

471405672
Solid carbon with spring - For distributor cap no. 144637 and 144638
$35.75

Part#: 140567 Qty: 2$35.75
