Table 6

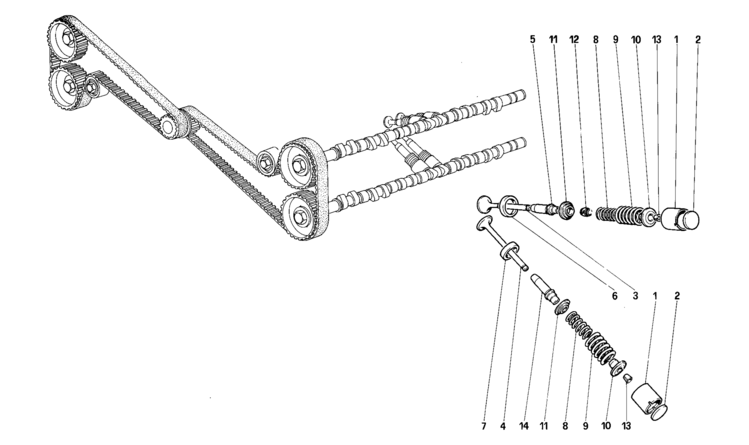

Table 6 - Timing system - Valves

Ref.Part#Qty.DescriptionPrice
111756248
Tappet for valve control

Part#: 117562 Qty: 48

211756948
Shim for valve adjustment thickness 3.25 mm.
$21.11

Part#: 117569 Qty: 48$21.11

117570-
Ditto, thickness 3,30 mm.
$18.18

Part#: 117570 Qty: -$18.18

117571-
Ditto, thickness 3,35 mm.
$19.65

Part#: 117571 Qty: -$19.65

117572-
Ditto, thickness 3,40 mm.
$9.50

Part#: 117572 Qty: -$9.50

117573-
Ditto, thickness 3,45 mm.
$9.65

Part#: 117573 Qty: -$9.65

117574
Ditto, thickness 3,50 mm.
$23.59

Part#: 117574$23.59

117575
Ditto, thickness 3,55 mm.
$37.92

Part#: 117575$37.92

117576NULL
Ditto, thickness 3,60 mm.
$61.99

Part#: 117576 Qty: NULL$61.99

117577
Ditto, thickness 3,65 mm.
$61.97

Part#: 117577$61.97

117578-
Ditto, thickness 3.70 mm.
$57.95

Part#: 117578 Qty: -$57.95

117579-
Ditto, thickness 3,75 mm.
$45.45

Part#: 117579 Qty: -$45.45

117580-
Ditto, thickness 3,80 mm.
$45.45

Part#: 117580 Qty: -$45.45

117581-
Ditto, thickness 3,85 mm.
$45.45

Part#: 117581 Qty: -$45.45

117582-
Ditto, thickness 3,90 mm.
$45.45

Part#: 117582 Qty: -$45.45

117583-
Ditto, thickness 3,95 mm.
$38.68

Part#: 117583 Qty: -$38.68

117584-
Ditto, thickness 4,00 mm.
$45.45

Part#: 117584 Qty: -$45.45

117585-
Ditto, thickness 4.05 mm.
$37.92

Part#: 117585 Qty: -$37.92

117586-
Ditto, thickness 4,10 mm.
$45.45

Part#: 117586 Qty: -$45.45

117587-
Ditto, thickness 4,15 mm.
$68.17

Part#: 117587 Qty: -$68.17

117588-
Ditto, thickness 4,20 mm.
$34.65

Part#: 117588 Qty: -$34.65

117589-
Ditto, thickness 4,25 mm
$35.34

Part#: 117589 Qty: -$35.34

117590
Ditto, thickness 4,30 mm.
$51.99

Part#: 117590$51.99

117591
Ditto, thickness 4,35 mm.
$29.80

Part#: 117591$29.80

117592
Ditto, thickness 3,40 mm.
$19.75

Part#: 117592$19.75

117593
Ditto, thickness 4,45 mm.
$9.75

Part#: 117593$9.75

117594
Ditto, thickness 4.35 mm.
$18.95

Part#: 117594$18.95

117595
Ditto, thickness 3,40 mm.
$21.53

Part#: 117595$21.53

117596
Ditto, thickness 4,45 mm.
$21.53

Part#: 117596$21.53

312047624
Intake valve

Part#: 120476 Qty: 24

412047724
Exhaust valve
$128.00

Part#: 120477 Qty: 24$128.00

511756524
Intake valve guide
$196.35

Part#: 117565 Qty: 24$196.35

11756624
Intake valve guide oversized by 0.2 mm.
$119.92

Part#: 117566 Qty: 24$119.92

612621224
Intake valve seat

Part#: 126212 Qty: 24

712047924
Exhaust valve seat

Part#: 120479 Qty: 24

811755848
Valve return inner spring

Part#: 117558 Qty: 48

911755948
Valve return outer spring
$32.44

Part#: 117559 Qty: 48$32.44

1011756748
Spring retaining upper cup
$96.73

Part#: 117567 Qty: 48$96.73

1111756848
Spring retaining lower cup

Part#: 117568 Qty: 48

1214156548
Oil seal for valves guide
$10.50

Part#: 141565 Qty: 48$10.50

1311728396
Cotter for valve spring cup
$2.90

Part#: 117283 Qty: 96$2.90

1411756524
Exhaust valve guide
$196.35

Part#: 117565 Qty: 24$196.35

11756624
Exhaust valve guide oversized by 0.2 mm.
$119.92

Part#: 117566 Qty: 24$119.92
