Ferrari Philadelphia Parts

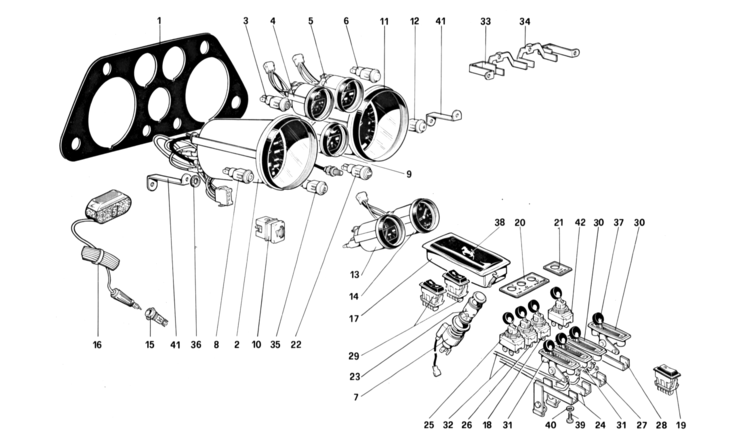

Table 113

Table 113 - Instruments and accessories

Ref.Part#Qty.DescriptionPrice
1614213001
Instrument plate

Part#: 61421300 Qty: 1

21189841
Mileage counter with zero adjuster (U.S. version)

Part#: 118984 Qty: 1

1189851
Speedometer with zero adjuster (Canadian version)

Part#: 118985 Qty: 1

3614145001
Warning light
$38.25

Part#: 61414500 Qty: 1$38.25

41169581
Fuel level gauge
$292.70

Part#: 116958 Qty: 1$292.70

51130491
Water temperature gauge

Part#: 113049 Qty: 1

6614146001
Warning light
$34.17

Part#: 61414600 Qty: 1$34.17

7611076001
Body for cigarette lighter

Part#: 61107600 Qty: 1

8607714001
Red warning light, emergency
$90.69

Part#: 60771400 Qty: 1$90.69

91169571
Oil pressure gauge

Part#: 116957 Qty: 1

10623670001
Rheostat for instrument light

Part#: 62367000 Qty: 1

111189861
Electronic rev, counter

Part#: 118986 Qty: 1

1260771300
Generator warning light, G

Part#: 60771300

131169561
Oil temperature gauge

Part#: 116956 Qty: 1

141130471
Clock

Part#: 113047 Qty: 1

15401793011
Current socket

Part#: 40179301 Qty: 1

16401792021
Aid lamp
$138.00

Part#: 40179202 Qty: 1$138.00

17607813001
Ash - tray

Part#: 60781300 Qty: 1

18600631041
Speed control with windshield wiper
$91.70

Part#: 60063104 Qty: 1$91.70

191146341
Aerial switch
$103.24

Part#: 114634 Qty: 1$103.24

2060770800
Identification plate switches
$136.30

Part#: 60770800$136.30

21614150001
Label for thermic rear window
$45.52

Part#: 61415000 Qty: 1$45.52

22614147001
Warning light exhaust system temperature
$30.00

Part#: 61414700 Qty: 1$30.00

23611075001
Cigarette lighter

Part#: 61107500 Qty: 1

24602587042
Connection, lever - cock

Part#: 60258704 Qty: 2

25503220071
Switch, heating fans
$105.00

Part#: 50322007 Qty: 1$105.00

26600536001
Emergency switch
$175.50

Part#: 60053600 Qty: 1$175.50

27401369051
Connection, lever - L.H. defroster

Part#: 40136905 Qty: 1

28500734021
Connection, lever R.H. defroster

Part#: 50073402 Qty: 1

291146332
Window control switch

Part#: 114633 Qty: 2

30607709002
Lever, defroster

Part#: 60770900 Qty: 2

31605482002
Lever, heating system valve

Part#: 60548200 Qty: 2

32601262082
Sheath for cable

Part#: 60126208 Qty: 2

33600779061
Upper bracket, L.H.

Part#: 60077906 Qty: 1

34600778071
Upper bracket, R.H.

Part#: 60077807 Qty: 1

35614148001
Buzzer safety belts
$38.35

Part#: 61414800 Qty: 1$38.35

36601608012
Shim

Part#: 60160801 Qty: 2

3750017201
Knob
$62.77

Part#: 50017201$62.77

38600361001
Ferrari horse
$95.41

Part#: 60036100 Qty: 1$95.41

39176712018
Screw

Part#: 17671201 Qty: 8

40126381018
Washer

Part#: 12638101 Qty: 8

41600780032
Lower bracket
$29.04

Part#: 60078003 Qty: 2$29.04

42600537091
Switch, thermic rear window
$162.98

Part#: 60053709 Qty: 1$162.98
