Table 12

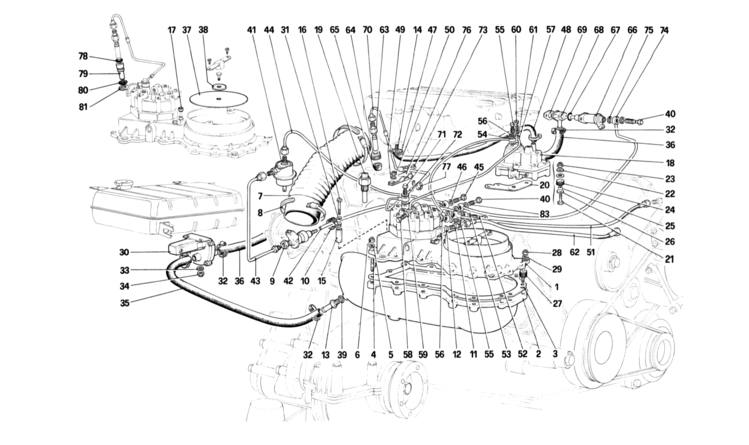

Table 12 - Fuel injection system - Fuel distributors, lines

Ref.Part#Qty.DescriptionPrice
11217451
Metering device

Part#: 121745 Qty: 1

121734
Support for metering device, complete

Part#: 121734

21217351
Support for metering device With unit no. 121734

Part#: 121735 Qty: 1

31150111
Gasket

Part#: 115011 Qty: 1

41354112115
Stud

Part#: 13541121 Qty: 15

51260127115
Washer

Part#: 12601271 Qty: 15

61257421115
Nut

Part#: 12574211 Qty: 15

71183101
Pipe from support to throttle valve body
$424.50

Part#: 118310 Qty: 1$424.50

8121749902
Clamp
$7.50

Part#: 12174990 Qty: 2$7.50

91215131
Frequency valve

Part#: 121513 Qty: 1

101218341
Clamp
$17.00

Part#: 121834 Qty: 1$17.00

111154981
Union with filter

Part#: 115498 Qty: 1

12112701601
Washer
$1.80

Part#: 11270160 Qty: 1$1.80

131157511
Threaded union

Part#: 115751 Qty: 1

141136371
Threaded union

Part#: 113637 Qty: 1

151218361
Spacer

Part#: 121836 Qty: 1

16109794211
Screw

Part#: 10979421 Qty: 1

171156501
Inviolability cap

Part#: 115650 Qty: 1

181217431
Warm - up regulator

Part#: 121743 Qty: 1

191217781
Time thermal switch

Part#: 121778 Qty: 1

201182911
Support
$7.51

Part#: 118291 Qty: 1$7.51

21143055212
Screw

Part#: 14305521 Qty: 2

22126042712
Washer

Part#: 12604271 Qty: 2

23125742112
Nut

Part#: 12574211 Qty: 2

241035492
Rubber small block
$1.80

Part#: 103549 Qty: 2$1.80

251035502
Spacer
$3.25

Part#: 103550 Qty: 2$3.25

26126437014
Washer

Part#: 12643701 Qty: 4

271029473
Vibration damping support
$20.91

Part#: 102947 Qty: 3$20.91

28125754113
Nut

Part#: 12575411 Qty: 3

29126012713
Washer

Part#: 12601271 Qty: 3

126006011
Washer

Part#: 12600601 Qty: 1

301217441
Additional air valve
$1436.65

Part#: 121744 Qty: 1$1436.65

311068501
Washer
$0.65

Part#: 106850 Qty: 1$0.65

32101692904
Clamp
$21.58

Part#: 10169290 Qty: 4$21.58

33126012712
Washer

Part#: 12601271 Qty: 2

34158962112
Nut

Part#: 15896211 Qty: 2

351116271
Pipe

Part#: 111627 Qty: 1

361218241
Pipe

Part#: 121824 Qty: 1

371208121
Air sensor plate

Part#: 120812 Qty: 1

381208091
Washer
$60.41

Part#: 120809 Qty: 1$60.41

39102599601
Gasket
$1.00

Part#: 10259960 Qty: 1$1.00

401136642
Pipe union
$29.04

Part#: 113664 Qty: 2$29.04

411215141
Damper for frequency valve
$200.00

Part#: 121514 Qty: 1$200.00

421217531
Pipe from frequency valve to metering unit

Part#: 121753 Qty: 1

431217551
Pipe from damper to frequency valve
$150.00

Part#: 121755 Qty: 1$150.00

441217571
Pipe from metering unit to damper
$145.00

Part#: 121757 Qty: 1$145.00

451136641
Pipe union
$29.04

Part#: 113664 Qty: 1$29.04

46143302601
Gasket
$0.89

Part#: 14330260 Qty: 1$0.89

47121791902
Clamp

Part#: 12179190 Qty: 2

481182931
Pipe
$47.44

Part#: 118293 Qty: 1$47.44

49111977711
Washer

Part#: 11197771 Qty: 1

501027411
Nut
$0.75

Part#: 102741 Qty: 1$0.75

511177871
Return pipe

Part#: 117787 Qty: 1

521217521
Union

Part#: 121752 Qty: 1

531139103
Gasket
$1.45

Part#: 113910 Qty: 3$1.45

541183981
Return pipe from regulator

Part#: 118398 Qty: 1

551136642
Union
$29.04

Part#: 113664 Qty: 2$29.04

56143302604
Gasket
$0.89

Part#: 14330260 Qty: 4$0.89

571155071
Delivery pipe to regulator
$200.00

Part#: 115507 Qty: 1$200.00

581136641
Union
$29.04

Part#: 113664 Qty: 1$29.04

59143302602
Gasket
$0.89

Part#: 14330260 Qty: 2$0.89

601136701
Union

Part#: 113670 Qty: 1

61102601602
Gasket
$0.90

Part#: 10260160 Qty: 2$0.90

621178851
Pipe from fuel tank

Part#: 117885 Qty: 1

631139758
Injector
$89.85

Part#: 113975 Qty: 8$89.85

641146608
Bush
$98.75

Part#: 114660 Qty: 8$98.75

651146618
Grommet
$18.65

Part#: 114661 Qty: 8$18.65

661154741
Auxiliary starting assembly

Part#: 115474 Qty: 1

671030391
Sealing ring
$1.45

Part#: 103039 Qty: 1$1.45

681150041
Union

Part#: 115004 Qty: 1

691150051
Gasket

Part#: 115005 Qty: 1

701185921
Pipe from metering device to cylinder 3

Part#: 118592 Qty: 1

1185901
Pipe from metering device to cylinder 1
$95.00

Part#: 118590 Qty: 1$95.00

1185911
Pipe from metering device to cylinder 2
$150.00

Part#: 118591 Qty: 1$150.00

1185931
Pipe from metering device to cylinder 4
$100.00

Part#: 118593 Qty: 1$100.00

1185941
Pipe from metering device to cylinder 5
$100.00

Part#: 118594 Qty: 1$100.00

1185951
Pipe from metering device to cylinder 6
$100.00

Part#: 118595 Qty: 1$100.00

1185961
Pipe from metering device to cylinder 7
$140.00

Part#: 118596 Qty: 1$140.00

1185971
Pipe from metering device to cylinder 8
$100.00

Part#: 118597 Qty: 1$100.00

711136708
Pipe union

Part#: 113670 Qty: 8

721026016016
Gasket
$0.90

Part#: 10260160 Qty: 16$0.90

731155951
Support clamp (4 pipes)

Part#: 115595 Qty: 1

1138961
Support clamp (3 pipes)
$9.25

Part#: 113896 Qty: 1$9.25

1154181
Support clamp (4 pipes)

Part#: 115418 Qty: 1

1172792
Support clamp

Part#: 117279 Qty: 2

741157351
Pipe metering device to auxiliary starting assembly

Part#: 115735 Qty: 1

75143302604
Copper washer
$0.89

Part#: 14330260 Qty: 4$0.89

761154171
Bracket for clamp

Part#: 115417 Qty: 1

771103812
Clamp

Part#: 110381 Qty: 2

401354022
Clamp

Part#: 40135402 Qty: 2

781135708
Sealing ring
$7.10

Part#: 113570 Qty: 8$7.10

791133098
Bushing
$135.00

Part#: 113309 Qty: 8$135.00

801010318
Sealing ring
$4.56

Part#: 101031 Qty: 8$4.56

811033268
Seeger
$0.21

Part#: 103326 Qty: 8$0.21
