Table 22

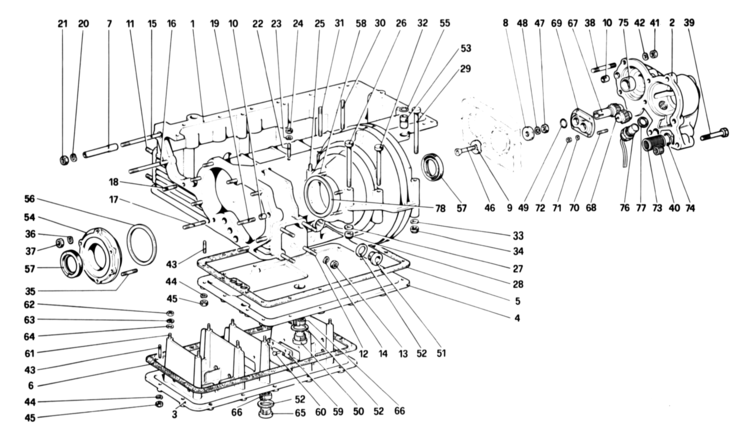

Table 22 - Gearbox - Differential housing and oil sump

Ref.Part#Qty.DescriptionPrice
37161041116
Nut

Part#: 16104111 Qty: 6

38135172215
Stud

Part#: 13517221 Qty: 5

39160441212
Screw
$1.00

Part#: 16044121 Qty: 2$1.00

160442211
Screw for cover and propelling unit earth
$1.06

Part#: 16044221 Qty: 1$1.06

40135257703
Heli-coil
$3.67

Part#: 13525770 Qty: 3$3.67

41161008115
Nut

Part#: 16100811 Qty: 5

42111980718
Washer

Part#: 11198071 Qty: 8

431354112130
Stud

Part#: 13541121 Qty: 30

441119777130
Washer

Part#: 11197771 Qty: 30

451589621130
Nut

Part#: 15896211 Qty: 30

461042181
Screw
$1.55

Part#: 104218 Qty: 1$1.55

47161008111
Nut

Part#: 16100811 Qty: 1

481068521
Washer

Part#: 106852 Qty: 1

491010321
Sealing ring
$1.00

Part#: 101032 Qty: 1$1.00

501042801
Plug
$9.25

Part#: 104280 Qty: 1$9.25

51102750011
Plug

Part#: 10275001 Qty: 1

52102634603
Gasket
$1.00

Part#: 10263460 Qty: 3$1.00

531038381
Dowel

Part#: 103838 Qty: 1

541082261
Differential side code With assembly no. 115179

Part#: 108226 Qty: 1

55103839
Ring
$15.87

Part#: 103839$15.87

561034221
Spacer for L.H. bearing, thickness mm. 2,4 (eventual use)

Part#: 103422 Qty: 1

1034231
Ditto, thickness mm. 2,60

Part#: 103423 Qty: 1

1034241
Ditto, thickness mm. 2,80

Part#: 103424 Qty: 1

1034251
Ditto, thickness mm. 3,00
$40.37

Part#: 103425 Qty: 1$40.37

1034261
Ditto, thickness mm. 3,20
$30.85

Part#: 103426 Qty: 1$30.85

1091451
Ditto, thickness mm. 4,3

Part#: 109145 Qty: 1

57108157
Sealing ring

Part#: 108157

58135434211
Stud

Part#: 13543421 Qty: 1

591075892
Vertical protection
$6.85

Part#: 107589 Qty: 2$6.85

601000334
Rivet

Part#: 100033 Qty: 4

61135390218
Stud for lower

Part#: 13539021 Qty: 8

62158964118
Nut

Part#: 15896411 Qty: 8

631068498
Spring washer

Part#: 106849 Qty: 8

64126381018
Washer

Part#: 12638101 Qty: 8

65102750401
Plug

Part#: 10275040 Qty: 1

661122542
Heli-coil
$6.90

Part#: 112254 Qty: 2$6.90

671169531
Oil pump drive gear

Part#: 116953 Qty: 1

681130821
Oil pump driven gear

Part#: 113082 Qty: 1

691130861
Oil pump cover

Part#: 113086 Qty: 1

70110009214
Stud

Part#: 11000921 Qty: 4

71126011714
Washer

Part#: 12601171 Qty: 4

72158964114
Nut

Part#: 15896411 Qty: 4

731155381
Oil pump filter
$10.76

Part#: 115538 Qty: 1$10.76

741010341
Sealing ring
$2.60

Part#: 101034 Qty: 1$2.60

751130881
Seat

Part#: 113088 Qty: 1

761169871
Pulse generator
$541.67

Part#: 116987 Qty: 1$541.67

77102634601
Gasket
$1.00

Part#: 10263460 Qty: 1$1.00

781034241
Space for R.H. bearing

Part#: 103424 Qty: 1

120562
Transmission complete with gears, differential and supports

Part#: 120562

115179
Complete gearbox

Part#: 115179

11183411
Gearbox differential and oil sump With assembly n. 115179

Part#: 118341 Qty: 1

21130731
Rear cover With assembly n. 115179

Part#: 113073 Qty: 1

1078751
Oil sump cover, complete

Part#: 107875 Qty: 1

31041921
Oil sump cover With assembly n. 107875

Part#: 104192 Qty: 1

41153531
Lower cover
$546.00

Part#: 115353 Qty: 1$546.00

51041961
Gasket

Part#: 104196 Qty: 1

61041971
Gasket

Part#: 104197 Qty: 1

71040331
Centering dowel

Part#: 104033 Qty: 1

81041981
Washer
$18.97

Part#: 104198 Qty: 1$18.97

91041991
Washer
$1.15

Part#: 104199 Qty: 1$1.15

101027042
Centering dowel
$3.29

Part#: 102704 Qty: 2$3.29

11134493218
Stud for front pads

Part#: 13449321 Qty: 8

12134500218
Stud for rear pads
$3.16

Part#: 13450021 Qty: 8$3.16

131216471116
Nut

Part#: 12164711 Qty: 16

1410685316
Washer

Part#: 106853 Qty: 16

15139528211
Stud

Part#: 13952821 Qty: 1

16139526211
Stud

Part#: 13952621 Qty: 1

17135174211
Stud
$36.85

Part#: 13517421 Qty: 1$36.85

18135172218
Stud

Part#: 13517221 Qty: 8

19135173211
Stud

Part#: 13517321 Qty: 1

201119407112
Washer
$0.36

Part#: 11194071 Qty: 12$0.36

211610081112
Nut

Part#: 16100811 Qty: 12

221089664
Stud for crankcase

Part#: 108966 Qty: 4

23111940714
Washer
$0.36

Part#: 11194071 Qty: 4$0.36

24161008114
Nut

Part#: 16100811 Qty: 4

25134504212
Stud
$0.60

Part#: 13450421 Qty: 2$0.60

26159720212
Bolt

Part#: 15972021 Qty: 2

27126386014
Washer
$1.00

Part#: 12638601 Qty: 4$1.00

28125745114
Selflocking nut

Part#: 12574511 Qty: 4

291041891
Bolt

Part#: 104189 Qty: 1

30135180212
Stud

Part#: 13518021 Qty: 2

31135178211
Stud

Part#: 13517821 Qty: 1

321077111
Bolt
$5.69

Part#: 107711 Qty: 1$5.69

33105196015
Washer

Part#: 10519601 Qty: 5

34161041115
Selflocking nut

Part#: 16104111 Qty: 5

35124297215
Stud
$0.95

Part#: 12429721 Qty: 5$0.95

36126013716
Spring washer

Part#: 12601371 Qty: 6
