Table 3

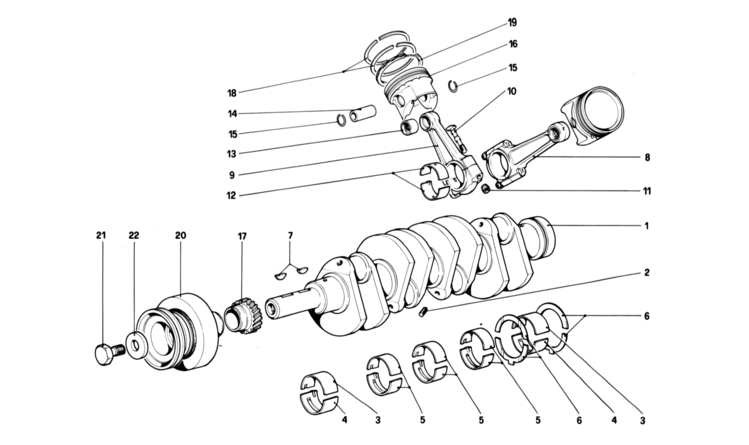

Table 3 - Crankshaft - Connecting rods and pistons

Ref.Part#Qty.DescriptionPrice
11056231
Crankshaft

Part#: 105623 Qty: 1

2143261508
Plug
$1.25

Part#: 14326150 Qty: 8$1.25

-
Half,bearing, front and rear

Part#: Qty: -

31001182
Upper half bearing
$57.89

Part#: 100118 Qty: 2$57.89

100119-
1st undersize 0,254 mm. on D.

Part#: 100119 Qty: -

100120-
2nd undersize 0,508 mm. on D.

Part#: 100120 Qty: -

41001222
Lower half bearing
$48.90

Part#: 100122 Qty: 2$48.90

100123-
1st undersize 0,254 mm. on D.

Part#: 100123 Qty: -

100124
2nd undersize 0,508 mm. on D. Half bearing, central and intermediate

Part#: 100124

51040236
Half bearing, upper and lower
$56.00

Part#: 104023 Qty: 6$56.00

104024-
1st undersize 0,254 mm. on D.
$99.95

Part#: 104024 Qty: -$99.95

104025-
2nd undersize 0,508 mm. on D. Shim

Part#: 104025 Qty: -

61001462
Shim for rear support
$35.13

Part#: 100146 Qty: 2$35.13

113984-
1st oversize 0,127 mm.
$17.00

Part#: 113984 Qty: -$17.00

100147
2nd oversize 0,25 mm.
$19.79

Part#: 100147$19.79

7102060202
Tongue
$3.71

Part#: 10206020 Qty: 2$3.71

81097388
Connecting rod, complete
$842.62

Part#: 109738 Qty: 8$842.62

91096888
Connecting rod and cap With assembly n. 109738

Part#: 109688 Qty: 8

1010015616
Bolt securing con. rod

Part#: 100156 Qty: 16

1110401116
Nut for con. rod bolt
$14.50

Part#: 104011 Qty: 16$14.50

1210015016
Con. rod half bearing

Part#: 100150 Qty: 16

100151
1st undersize 0,254 mm. on D.
$90.59

Part#: 100151$90.59

100152
2nd undersize 0,508 mm. on D.

Part#: 100152

131071008
Bush for gudgeon pin On exhaustion n 100155
$38.50

Part#: 107100 Qty: 8$38.50

141195378
Gudgeon pin
$215.00

Part#: 119537 Qty: 8$215.00

1510017416
Ring for gudgeon pin
$8.50

Part#: 100174 Qty: 16$8.50

161195388
Piston with piston ring

Part#: 119538 Qty: 8

171176551
Driving sprocket for timing system

Part#: 117655 Qty: 1

1195391
Set of piston rings
$140.31

Part#: 119539 Qty: 1$140.31

1811953916
Ac conical seal ring 1st 2nd groove) With complete set n 119539
$140.31

Part#: 119539 Qty: 16$140.31

191195398
ROF scraper ring with spring (3rd groove) With complete set n 119539
$140.31

Part#: 119539 Qty: 8$140.31

201051601
Torsion damper with pulley (Assembly with single belt)

Part#: 105160 Qty: 1

201228691
Torsion damper with pulley (Assembly with 2 individuals belt)

Part#: 122869 Qty: 1

211004761
Screw

Part#: 100476 Qty: 1

221027751
Washer

Part#: 102775 Qty: 1
