Table 101

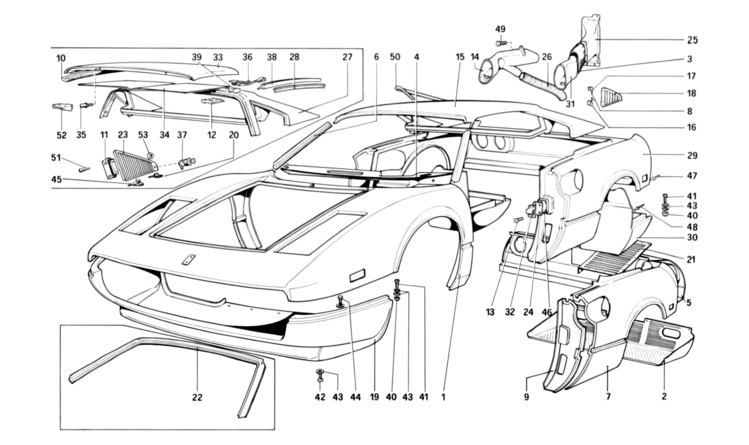

Table 101 - Body shell Outer elements

Ref.Part#Qty.DescriptionPrice
1602993021
Front covering

Part#: 60299302 Qty: 1

2607050001
Shield for muffler

Part#: 60705000 Qty: 1

31075331
Sleeve
$115.00

Part#: 107533 Qty: 1$115.00

4610138001
Panel, under instrument board

Part#: 61013800 Qty: 1

5602174031
Covering, number plate seat

Part#: 60217403 Qty: 1

6611411001
Covering for R.H. post GTB

Part#: 61141100 Qty: 1

603814071
Covering for L.H. post GTB

Part#: 60381407 Qty: 1

7607857001
Rear tender, R.H. GTB

Part#: 60785700 Qty: 1

603589001
Rear fender, R.H. GTS

Part#: 60358900 Qty: 1

603592051
Rear fender, L.H. GTB

Part#: 60359205 Qty: 1

603590071
Rear fender, L.H. GTS

Part#: 60359007 Qty: 1

8600421082
Hinge pin GTB
$3.61

Part#: 60042108 Qty: 2$3.61

9602168011
R.H. pillar for fender

Part#: 60216801 Qty: 1

602169001
L.H. pillar for fender

Part#: 60216900 Qty: 1

10623417004182
Gasket GTS

Part#: 62341700418 Qty: 2

11603253052
Grill hinge GTS

Part#: 60325305 Qty: 2

12605005002
Rear bracket, roof GTS Up to 15/11/81

Part#: 60500500 Qty: 2

605005002
Rear bracket, roof GTS from 16/11/81

Part#: 60500500 Qty: 2

13202875048
Screw
$4.75

Part#: 20287504 Qty: 8$4.75

14607089001
Air duct, R.H.

Part#: 60708900 Qty: 1

15602148061
Roof covering GTB

Part#: 60214806 Qty: 1

16600407061
Lower hinge GTB
$20.91

Part#: 60040706 Qty: 1$20.91

17600408051
Upper hinge GTB
$78.00

Part#: 60040805 Qty: 1$78.00

18603700041
RH. grill GTB

Part#: 60370004 Qty: 1

603374091
L.H. grill GTB

Part#: 60337409 Qty: 1

19603959001
Resin covering, front lower

Part#: 60395900 Qty: 1

611830001
Steel covering, front lower

Part#: 61183000 Qty: 1

611829001
Front covering, lower (Oversize)
$3508.55

Part#: 61182900 Qty: 1$3508.55

20201060012
Rubber piece, grill GTS
$32.79

Part#: 20106001 Qty: 2$32.79

21607053001
Grill, under body R.H
$400.00

Part#: 60705300 Qty: 1$400.00

607054001
Grill, under body L.H

Part#: 60705400 Qty: 1

22606087001
Framework, windshield GTS Up to 15/11/81

Part#: 60608700 Qty: 1

608727001
Framework, windshield GTS from 16/11/81

Part#: 60872700 Qty: 1

23603362031
R.H. grill GTS

Part#: 60336203 Qty: 1

603363021
L.H. grill GTS

Part#: 60336302 Qty: 1

24601630032
Spacer
$15.42

Part#: 60163003 Qty: 2$15.42

25602223041
Rear duct, L.H.

Part#: 60222304 Qty: 1

26604397001
Air duct, R.H.

Part#: 60439700 Qty: 1

27601725091
Roof coveting GTS up to 31/1/81

Part#: 60172509 Qty: 1

608796001
Roof covering GTS from 1/2/81

Part#: 60879600 Qty: 1

2825330220002
Gasket GTS
$22.00

Part#: 2533022000 Qty: 2$22.00

29602994011
Rear covering GTB

Part#: 60299401 Qty: 1

603389021
Rear covering GTS

Part#: 60338902 Qty: 1

30607166001
Rear covering, R.H.
$906.00

Part#: 60716600 Qty: 1$906.00

607167001
Rear covering, L.H.

Part#: 60716700 Qty: 1

31603736021
Air duct, L.H.

Part#: 60373602 Qty: 1

32200191051
Lock striker, R.H.
$643.73

Part#: 20019105 Qty: 1$643.73

200192041
Lock striker, L.H.
$643.73

Part#: 20019204 Qty: 1$643.73

33607601001
Sun roof GTS

Part#: 60760100 Qty: 1

34607501001
Inner covering, roof GTS

Part#: 60750100 Qty: 1

35601890082
Fixing pin, front, roof GTS
$67.75

Part#: 60189008 Qty: 2$67.75

36604215002
Handle, roof GTS
$1070.30

Part#: 60421500 Qty: 2$1070.30

37618175002
Lock, grill GTS

Part#: 61817500 Qty: 2

38606083001
Gutter, R.H, GTS
$165.00

Part#: 60608300 Qty: 1$165.00

606084001
Gutter, L.H. GTS

Part#: 60608400 Qty: 1

39603955062
Handle protection GTS

Part#: 60395506 Qty: 2

401257412122
Nut

Part#: 12574121 Qty: 22

411097772118
Screw
$0.93

Part#: 10977721 Qty: 18$0.93

42139038016
Screw for steel covering

Part#: 13903801 Qty: 6

156455016
Screw for resin covering

Part#: 15645501 Qty: 6

431263810149
Washer

Part#: 12638101 Qty: 49

44109780214
Screw

Part#: 10978021 Qty: 4

45605514002
Grommet GTS

Part#: 60551400 Qty: 2

46606024002
Striker gasket
$54.19

Part#: 60602400 Qty: 2$54.19

476015900120
Rivet
$0.32

Part#: 60159001 Qty: 20$0.32

486022590130
Rivet
$1.19

Part#: 60225901 Qty: 30$1.19

49151865011
Screw

Part#: 15186501 Qty: 1

50602518082
Gasket

Part#: 60251808 Qty: 2

51608926004
Grommet GTS
$18.55

Part#: 60892600 Qty: 4$18.55

52603368072
Front bracket, roof GTS
$99.49

Part#: 60336807 Qty: 2$99.49

53600664042
Ring nut, grill GTS
$12.72

Part#: 60066404 Qty: 2$12.72
