Ferrari Philadelphia Parts

Table 102

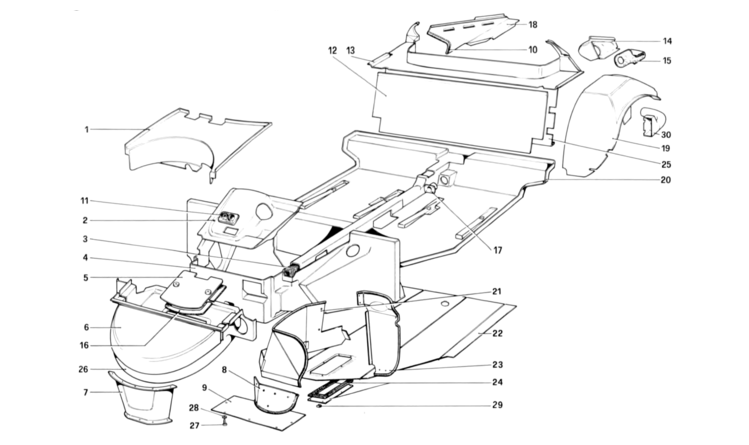

Table 102 - Body shell Inner elements

Ref.Part#Qty.DescriptionPrice
1603519051
Panel, spate wheel compartment

Part#: 60351905 Qty: 1

2600540041
Upper additional panel

Part#: 60054004 Qty: 1

3601090061
Insulation for central tunnel

Part#: 60109006 Qty: 1

4600446091
Front shield panel, passenger compartment GTB

Part#: 60044609 Qty: 1

603273011
Front shield panel, passenger compartment GTS

Part#: 60327301 Qty: 1

5602798091
Protection cover for battery
$349.93

Part#: 60279809 Qty: 1$349.93

6603801021
Upper housing for wheel
$489.93

Part#: 60380102 Qty: 1$489.93

7603517071
Battery protection
$418.03

Part#: 60351707 Qty: 1$418.03

8602983041
Front gravel guard, R.H. For standard spoiler
$56.01

Part#: 60298304 Qty: 1$56.01

603075011
Front gravel guard, R.H. For oversize spoiler
$165.00

Part#: 60307501 Qty: 1$165.00

602984031
Front gravel guard, L.H. For standard spoiler
$61.00

Part#: 60298403 Qty: 1$61.00

603076001
Front gravel guard, L.H. For oversize spoiler

Part#: 60307600 Qty: 1

9600597061
Panel

Part#: 60059706 Qty: 1

10602518082
Gasket
$17.44

Part#: 60251808 Qty: 2$17.44

11600549051
Fair lead for A C. pipes

Part#: 60054905 Qty: 1

12608952001
Panel on passenger comp, side GTS up to 30/6/81

Part#: 60895200 Qty: 1

604328041
Panel on passenger comp, side GTB up to 30/6/81

Part#: 60432804 Qty: 1

608508001
Panel on passenger comp, side From 1/7/81

Part#: 60850800 Qty: 1

13604116001
Plane, rear window GTB

Part#: 60411600 Qty: 1

604029061
Plane, rear window GTS

Part#: 60402906 Qty: 1

14604412011
Fuel filler chamber GTB

Part#: 60441201 Qty: 1

603429041
Fuel fillet chamber GTS

Part#: 60342904 Qty: 1

15601342021
Gasket, fuel filler
$62.02

Part#: 60134202 Qty: 1$62.02

16600311011
Gasket

Part#: 60031101 Qty: 1

17600847041
Bushing
$7.50

Part#: 60084704 Qty: 1$7.50

18602961001
Inner covering, R.H. fins Up to 31/5/81

Part#: 60296100 Qty: 1

607205001
Inner covering, L.H. fins Up to 31/5/81

Part#: 60720500 Qty: 1

608494001
Inner covering. R H. fins From 1/6/81

Part#: 60849400 Qty: 1

608498001
Inner covering. L.H. fins From 1/6/81

Part#: 60849800 Qty: 1

19600913031
Rear wheelhouse, R.H
$454.51

Part#: 60091303 Qty: 1$454.51

600914021
Rear wheelhouse, L.H.
$717.98

Part#: 60091402 Qty: 1$717.98

20600098001
Resin flat bed GTB up to 31/8/81

Part#: 60009800 Qty: 1

603271031
Resin flat bed GTS up to 31/8/81

Part#: 60327103 Qty: 1

608807001
Resin flat bed GTB from 1/9/81

Part#: 60880700 Qty: 1

608808001
Resin flat bed GTS from 1/9/81

Part#: 60880800 Qty: 1

21602563021
Front wheelhouse, R.H.
$158.10

Part#: 60256302 Qty: 1$158.10

602564011
Front wheelhouse, L.H
$770.55

Part#: 60256401 Qty: 1$770.55

22600596071
Under flat bed Up to 30/9/81
$420.00

Part#: 60059607 Qty: 1$420.00

608809001
Under flat bed From 1/10/81

Part#: 60880900 Qty: 1

23602596031
Gravel guard for R.H. wheelhouse GTB

Part#: 60259603 Qty: 1

603083011
Gravel guard for R.H. wheelhouse GTS

Part#: 60308301 Qty: 1

602597021
Gravel guard for L.H. wheelhouse GTB

Part#: 60259702 Qty: 1

603084001
Gravel guard for L.H. wheelhouse GTS

Part#: 60308400 Qty: 1

24600600011
Cover and gasket, accelerator inspection

Part#: 60060001 Qty: 1

25607194001
Panel on engine comp side GTS

Part#: 60719400 Qty: 1

607065001
Panel on engine comp side GTB

Part#: 60706500 Qty: 1

26603516081
Lower housing for wheel
$536.70

Part#: 60351608 Qty: 1$536.70

27201466016
Screw

Part#: 20146601 Qty: 6

28126437016
Washer

Part#: 12643701 Qty: 6

29202736036
Strap

Part#: 20273603 Qty: 6

30607397001
R.H. air conveyor
$423.83

Part#: 60739700 Qty: 1$423.83

607398001
L.H. air conveyor

Part#: 60739800 Qty: 1
