Ferrari Philadelphia Parts

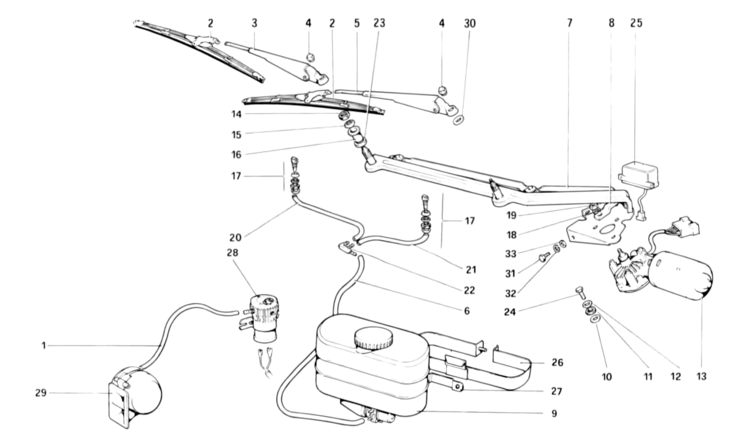

Table 117
Ref.Part#Qty.DescriptionPrice
615781001
Horns and compressor

Part#: 61578100 Qty: 1

1603422011
Duct, horns to compressor

Part#: 60342201 Qty: 1

2640260002
Wiper brush
$38.00

Part#: 64026000 Qty: 2$38.00

31087401
R.H. wiper arm
$125.00

Part#: 108740 Qty: 1$125.00

4161008112
Nut

Part#: 16100811 Qty: 2

51087391
L.H. wiper arm
$125.00

Part#: 108739 Qty: 1$125.00

6603264021
Duct, water reservoir to 3 way union

Part#: 60326402 Qty: 1

600047021
Windshield wiper unit

Part#: 60004702 Qty: 1

7600445001
Levers, windshield wiper
$235.00

Part#: 60044500 Qty: 1$235.00

8601340041
Link rod, 45 mm.

Part#: 60134004 Qty: 1

9603757061
Water reservoir

Part#: 60375706 Qty: 1

10502088003
Washer
$0.28

Part#: 50208800 Qty: 3$0.28

11402224083
Grommet

Part#: 40222408 Qty: 3

12402227053
Washer

Part#: 40222705 Qty: 3

13600396091
Motor, windshield wiper

Part#: 60039609 Qty: 1

14601339072
Ring nut
$4.25

Part#: 60133907 Qty: 2$4.25

151083242
Outer spacer
$8.95

Part#: 108324 Qty: 2$8.95

161083252
Inner spacer
$6.75

Part#: 108325 Qty: 2$6.75

17605329002
Nozzle and fixing parts

Part#: 60532900 Qty: 2

181274961
Washer
$0.50

Part#: 127496 Qty: 1$0.50

19161023111
Nut
$1.95

Part#: 16102311 Qty: 1$1.95

20601247081
Duct, R.H. nozzle

Part#: 60124708 Qty: 1

21601248071
Duct, L.H. nozzle

Part#: 60124807 Qty: 1

22501031001
3 way union

Part#: 50103100 Qty: 1

23602756092
Washer

Part#: 60275609 Qty: 2

24109023213
Screw

Part#: 10902321 Qty: 3

25402843091
Intermittence, windshield wiper
$205.00

Part#: 40284309 Qty: 1$205.00

2660399102R1
Clamp, fixing windshield wiper bag

Part#: 60399102R Qty: 1

27603992011
Bracket

Part#: 60399201 Qty: 1

28603420031
Compressor, horns

Part#: 60342003 Qty: 1

29603421021
Horns

Part#: 60342102 Qty: 1

30126427112
Washer

Part#: 12642711 Qty: 2

31109021214
Screw

Part#: 10902121 Qty: 4

32126053714
Washer
$0.51

Part#: 12605371 Qty: 4$0.51

33126437013
Washer

Part#: 12643701 Qty: 3
