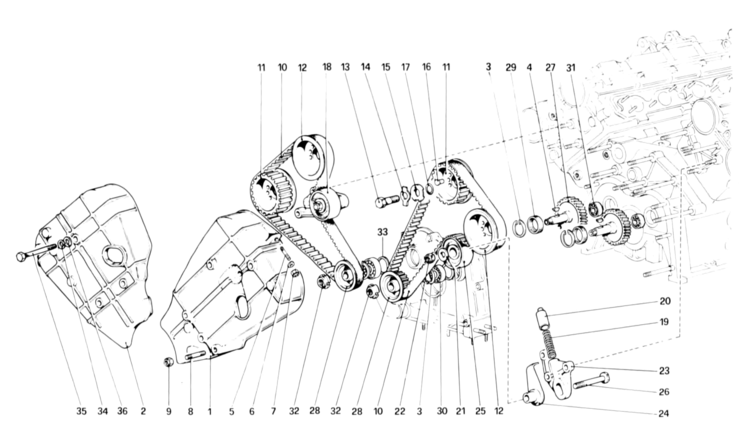

| Ref. | Part# | Qty. | Description | Price |
|---|
| 108098 | 1 | Left cover, complete | | | |
Part#: 108098 Qty: 1 |
| 1 | 108054 | 1 | Left cover With assembly n. 108098 | | | |
Part#: 108054 Qty: 1 |
| 2 | 105927 | 1 | Right cover | | | |
Part#: 105927 Qty: 1 |
| 3 | 11059975 | 4 | Seeger ring | | | |
Part#: 11059975 Qty: 4 |
| 4 | 10206320 | 2 | Tongue | $1.90 | | |
Part#: 10206320 Qty: 2$1.90 |
| 5 | 13540820 | 1 | Stud for dipstick | $2.78 | | |
Part#: 13540820 Qty: 1$2.78 |
| 6 | 12644421 | 1 | Washer | | | |
Part#: 12644421 Qty: 1 |
| 7 | 12574211 | 1 | Selflocking nut | | | |
Part#: 12574211 Qty: 1 |
| 8 | 13546221 | 1 | Stud | | | |
Part#: 13546221 Qty: 1 |
| 9 | 13598021 | 1 | Nut | $6.25 | | |
Part#: 13598021 Qty: 1$6.25 |
| 10 | 107833 | 2 | Timing chain -As option to n. 102877 | $32.00 | | |
Part#: 107833 Qty: 2$32.00 |
| 11 | 110994 | 2 | Driven gear | | | |
Part#: 110994 Qty: 2 |
| 12 | 110995 | 2 | Driven gear | | | |
Part#: 110995 Qty: 2 |
| 13 | 106606 | 4 | Gear fixing screw | $96.55 | | |
Part#: 106606 Qty: 4$96.55 |
| 14 | 102777 | 4 | Locking plate | $18.75 | | |
Part#: 102777 Qty: 4$18.75 |
| 15 | 106605 | 4 | Gear seal washer | | | |
Part#: 106605 Qty: 4 |
| 16 | 106203 | 4 | Driving dowel | $10.50 | | |
Part#: 106203 Qty: 4$10.50 |
| 17 | 101031 | 4 | Sealing ring | $4.56 | | |
Part#: 101031 Qty: 4$4.56 |
| 18 | 105201 | 2 | Belt idler, complete (no spare part) | | | |
Part#: 105201 Qty: 2 |
| 19 | 104148 | 2 | Spring | | | |
Part#: 104148 Qty: 2 |
| 20 | 102819 | 2 | Pin | $214.98 | | |
Part#: 102819 Qty: 2$214.98 |
| 21 | 102824 | 2 | Washer | | | |
Part#: 102824 Qty: 2 |
| 22 | 16105121 | 2 | Selflocking nut | | | |
Part#: 16105121 Qty: 2 |
| 23 | 105200 | 2 | Belt idler bracket | | | |
Part#: 105200 Qty: 2 |
| 24 | 105202 | 2 | Bracket plate | | | |
Part#: 105202 Qty: 2 |
| 25 | 105206 | 2 | Belt idler ring | $68.00 | | |
Part#: 105206 Qty: 2$68.00 |
| 26 | 105205 | 2 | Screw | | | |
Part#: 105205 Qty: 2 |
| 27 | 112017 | 2 | Drive gear for camshaft and oil pump Fit with pinion n. 103781 | | | |
Part#: 112017 Qty: 2 |
| 27 | 117656 | 2 | Drive gear for camshaft and oil pump Fit with pinion n. 117655 | | | |
Part#: 117656 Qty: 2 |
| 28 | 112018 | 2 | Driving pulley | | | |
Part#: 112018 Qty: 2 |
| 29 | 112020 | 2 | Oil retaining ring | | | |
Part#: 112020 Qty: 2 |
| 30 | 112019 | 2 | Bearing on front cover | | | |
Part#: 112019 Qty: 2 |
| 31 | 104918 | 2 | Bearing on crankcase -As option to n. 104918 | $24.00 | | |
Part#: 104918 Qty: 2$24.00 |
| 32 | 104919 | 2 | Selflocking ring nut | $4.79 | | |
Part#: 104919 Qty: 2$4.79 |
| 33 | 104915 | 2 | Washer | | | |
Part#: 104915 Qty: 2 |
| 34 | 106853 | 3 | Spring washer | | | |
Part#: 106853 Qty: 3 |
| 35 | 111668 | 3 | Screw fixing cover to crankcase | $53.04 | | |
Part#: 111668 Qty: 3$53.04 |
| 36 | 12638601 | 3 | Washer | $1.00 | | |
Part#: 12638601 Qty: 3$1.00 |
