Table 10

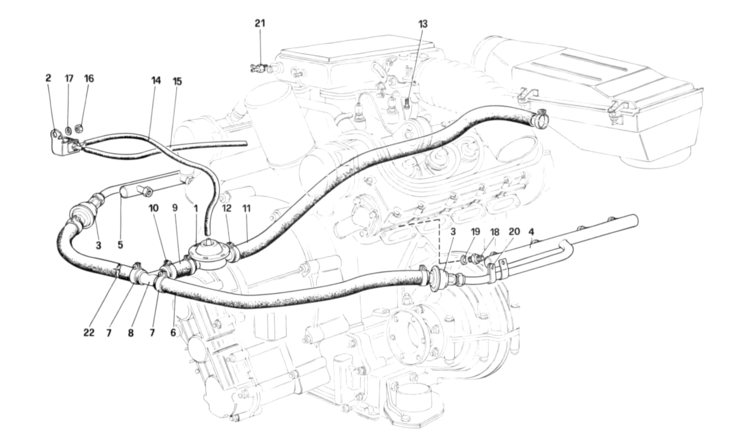

Table 10 - Air injection (For USA and CH88 Version)

Ref.Part#Qty.DescriptionPrice
11217511
Cut-Off valve

Part#: 121751 Qty: 1

21290591
Solenoid valve

Part#: 129059 Qty: 1

31217692
Single check valve

Part#: 121769 Qty: 2

41218081
Right manifold for air injection

Part#: 121808 Qty: 1

51217831
Left manifold for air Injection

Part#: 121783 Qty: 1

61391751
Left pipe

Part#: 139175 Qty: 1

7121802904
Clip

Part#: 12180290 Qty: 4

81098871
T union

Part#: 109887 Qty: 1

91167831
Sleeve
$69.47

Part#: 116783 Qty: 1$69.47

10121802902
Clip

Part#: 12180290 Qty: 2

111182311
Pipe

Part#: 118231 Qty: 1

12121802902
Clip

Part#: 12180290 Qty: 2

131136371
Union -For US-

Part#: 113637 Qty: 1

141185021
Pipe -Not for C8-
$56.55

Part#: 118502 Qty: 1$56.55

141359591
Pipe -For C8-

Part#: 135959 Qty: 1

151171701
Pipe -Not for C8-

Part#: 117170 Qty: 1

151151471
Pipe -For C8-
$5.77

Part#: 115147 Qty: 1$5.77

16161041111
Nut -Not for C8-

Part#: 16104111 Qty: 1

17144965011
Washer -Not for C8-

Part#: 14496501 Qty: 1

181217188
Union
$117.00

Part#: 121718 Qty: 8$117.00

19102570608
Gasket
$1.00

Part#: 10257060 Qty: 8$1.00

20119811
Clamp

Part#: 119811

21135951t
Union -For C8-

Part#: 135951 Qty: t

221391741
Right pipe

Part#: 139174 Qty: 1
