Table 104

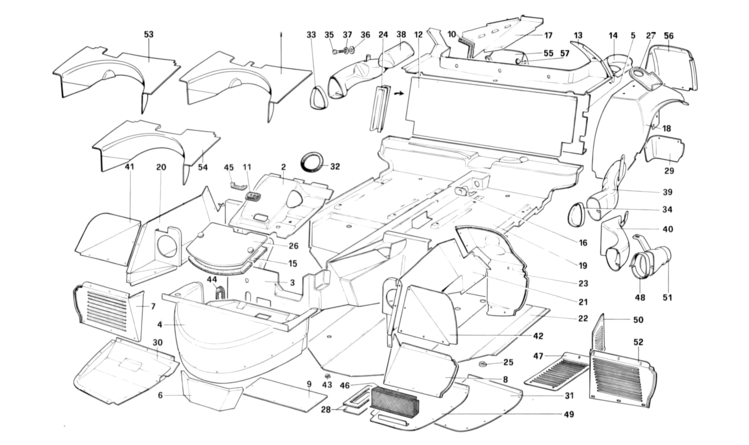

Table 104 - Body shell - Inner elements

Ref.Part#Qty.DescriptionPrice
1603505011
(V) Cover LHD Not for US - J - SA

Part#: 60350501 Qty: 1

NULL603518061
(V) Cover RHD
$791.80

Part#: 60351806 Qty: 1$791.80

2618277001
(V) Cover LHD - Until car 64651

Part#: 61827700 Qty: 1

619321001
(V) Cover LHD From car 64651

Part#: 61932100 Qty: 1

624857001
(N) Cover LHD

Part#: 62485700 Qty: 1

618515001
(V) Cover RHD Until car 64651

Part#: 61851500 Qty: 1

619332001
(V) Cover RHD - From car 64653

Part#: 61933200 Qty: 1

625350001
(N) Cover RHD

Part#: 62535000 Qty: 1

3617558001
(V) Front panel GTB - LHD

Part#: 61755800 Qty: 1

624859001
(N) Front panel GTB - LHD

Part#: 62485900 Qty: 1

617786001
(V) Front panel GTS - LHD

Part#: 61778600 Qty: 1

625012001
(N) Front panel GTS - LHD

Part#: 62501200 Qty: 1

618516001
(V) Front panel GTB - RHD

Part#: 61851600 Qty: 1

625351001
(N) Front panel GTB - RHD

Part#: 62535100 Qty: 1

618728001
(V) Front panel GTS - RHD

Part#: 61872800 Qty: 1

625752001
(N) Front pane GTS - RHD

Part#: 62575200 Qty: 1

4617488001
(V) Housing for wheel

Part#: 61748800 Qty: 1

624846001
(N) Housing for wheel

Part#: 62484600 Qty: 1

5611937001
Panel GTB -Not for US - J - SA - AUS

Part#: 61193700 Qty: 1

607065001
Panel GTB - US - J - SA

Part#: 60706500 Qty: 1

623357001
Panel GTB AUS

Part#: 62335700 Qty: 1

611942001
Panel GTS -Not for US - J - SA RHD - C8

Part#: 61194200 Qty: 1

624409001
Panel GTS C8

Part#: 62440900 Qty: 1

611943001
Panel GTS - RHD Not for AUS

Part#: 61194300 Qty: 1

607194001
Panel GTS - US - J - SA

Part#: 60719400 Qty: 1

623353001
Panel GTS - AUS

Part#: 62335300 Qty: 1

6603517071
Battery protection
$418.03

Part#: 60351707 Qty: 1$418.03

7617502001
R.H. front gravel guard Not for US - J SA

Part#: 61750200 Qty: 1

618972001
(V) R.H. front gravel guard US - J - SA

Part#: 61897200 Qty: 1

617502001
(N) R.H. front gravel guard US - J - SA

Part#: 61750200 Qty: 1

8617503001
(V) L.H. front gravel guard -Not for US - J- SA

Part#: 61750300 Qty: 1

618973001
(V) I H front gravel guard- US - J - SA

Part#: 61897300 Qty: 1

9600597061
Panel LHD

Part#: 60059706 Qty: 1

602086001
Panel RHD

Part#: 60208600 Qty: 1

10602518082
Gasket

Part#: 60251808 Qty: 2

11600549051
Fair lead LHD - Until car 64651

Part#: 60054905 Qty: 1

619324001
Fair lead LHD - From car 64653 (Until exha.)

Part#: 61932400 Qty: 1

600549051
Fair lead RHD - Until car 64651

Part#: 60054905 Qty: 1

619334001
Fair lead RHD - From car 64653 (Until exha )

Part#: 61933400 Qty: 1

626168001
Fair lead - After exha 61932400 - 61933400

Part#: 62616800 Qty: 1

12608508001
Aluminum panel GTS - GS (GTB US SA -J -C7 -C8)

Part#: 60850800 Qty: 1

610810001
Panel GTS - RHD (GTB - AUS)

Part#: 61081000 Qty: 1

13610108001
Plane rear window GTB Until car 69367

Part#: 61010800 Qty: 1

623510001
Plane rear window GTB From car 69369

Part#: 62351000 Qty: 1

611284001
Plane rear window GTS

Part#: 61128400 Qty: 1

14604412011
Fuel tiller chambel GTB

Part#: 60441201 Qty: 1

603429041
Fuel filler chambel GTS

Part#: 60342904 Qty: 1

15600311011
Gasket

Part#: 60031101 Qty: 1

16600847041
Bushing LHD
$7.50

Part#: 60084704 Qty: 1$7.50

401690051
Bushing RHD

Part#: 40169005 Qty: 1

17609569001
Inner panel R.H

Part#: 60956900 Qty: 1

609568001
(V) Inner panel L.H.

Part#: 60956800 Qty: 1

625424001
(N) Inner panel L.H. -Not for US - J - SA

Part#: 62542400 Qty: 1

609568001
(N) Inner panel L.H. - MY 88 - US - J - SA

Part#: 60956800 Qty: 1

625424001
(N) Inner panel L.H. - MY 89 US - J - SA

Part#: 62542400 Qty: 1

18618749001
R.H. wheelhouse - Until car 66799 Not for AUS - C7 - C8

Part#: 61874900 Qty: 1

618750001
L.H. wheelhouse - Until car 66799 Not for AUS - C7 - C8
$652.40

Part#: 61875000 Qty: 1$652.40

619916001
R.H. wheelhouse - From car 66801 Not for AUS - C7 - C8

Part#: 61991600 Qty: 1

619917001
L.H. wheelhouse - From car 66801 Not for AUS - C7 - C8

Part#: 61991700 Qty: 1

618742001
R.H. wheelhouse - Until car 66799 AUS-US-J-SA

Part#: 61874200 Qty: 1

618743001
L.H. wheelhouse - Until car 66799 AUS - US - J - SA

Part#: 61874300 Qty: 1

623452001
R.H. wheelhouse - From car 66801 AUS-US-J-SA-C7-C8

Part#: 62345200 Qty: 1

623453001
L.H. wheelhouse - From car 66801 AUS - SA - J - US - C7 - C8

Part#: 62345300 Qty: 1

19617481001
Resin flat bed GTB - LHD

Part#: 61748100 Qty: 1

617672001
Resin flat bed GTS - LHD

Part#: 61767200 Qty: 1

618424001
(V) Resin flat bed GTB - RHD

Part#: 61842400 Qty: 1

618568001
(V) Resin flat bed GTS - RHD

Part#: 61856800 Qty: 1

625558001
(N) Resin flat bed GTB - RHD

Part#: 62555800 Qty: 1

625560001
(N) Resin Hat bed GTS - RHD

Part#: 62556000 Qty: 1

20617498001
(V) Front wheelhouse (RH)

Part#: 61749800 Qty: 1

624849001
(N) Front wheelhouse (RH)

Part#: 62484900 Qty: 1

21617499001
(V) Front wheelhouse (LH)

Part#: 61749900 Qty: 1

624850001
IN) Front wheelhouse (LH)

Part#: 62485000 Qty: 1

22608809001
Under flat bed LHD

Part#: 60880900 Qty: 1

602700061
Under flat bed RHD

Part#: 60270006 Qty: 1

23618497001
R H. gravel guard GTB - LHD

Part#: 61849700 Qty: 1

618591001
R.H. gravel guard GTB - RHD

Part#: 61859100 Qty: 1

618499001
R.H. gravel guard GTS - LHD

Part#: 61849900 Qty: 1

618706001
R.H. gravel guard GTS - RHD

Part#: 61870600 Qty: 1

618498001
L.H. gravel guard GTB

Part#: 61849800 Qty: 1

618500001
L.H. gravel guard GTS

Part#: 61850000 Qty: 1

24600939031
Protection for pipes GTB Not for US - J SA - GD - C7 - C8

Part#: 60093903 Qty: 1

602419081
Protection for pipes GT - RHD -Not for AUS

Part#: 60241908 Qty: 1

25403052032
Plug
$13.50

Part#: 40305203 Qty: 2$13.50

26602798091
Cover for battery
$349.93

Part#: 60279809 Qty: 1$349.93

27601342021
Gasket for filler
$62.02

Part#: 60134202 Qty: 1$62.02

28602250001
Cover RHD

Part#: 60225000 Qty: 1

29617703001
R.H. rear cover - Until car 66799 Not for US - J - SA - AUS

Part#: 61770300 Qty: 1

618837001
R.H. rear cover - Until car 66799 US - J - SA - AUS

Part#: 61883700 Qty: 1

623404001
(V) R.H. rear cover - From car 66801 Not for US - J - SA - AUS - C7 - C8

Part#: 62340400 Qty: 1

619920001
(V) R.H. rear cover - From car 66801 US - J - SA - AUS - C7 - C8

Part#: 61992000 Qty: 1

625157001
(N) R.H. rear cover Not for US - J - SA C8

Part#: 62515700 Qty: 1

625159001
(N)R.H. rear cover US - J - SA - C8

Part#: 62515900 Qty: 1

617704001
L.H. rear cover - Until car 66799 Not for US - J - SA - AUS

Part#: 61770400 Qty: 1

618838001
L.H. rear cover - From car 66801 US-J-SA- AUS

Part#: 61883800 Qty: 1

623405001
(V) LH rear cover - From car 66801 Not for US - J - SA - AUS - C7 - C8

Part#: 62340500 Qty: 1

619921001
(V) LH rear cover - From car 66801 US - J - AUS - C7 - C8

Part#: 61992100 Qty: 1

625158001
(N)L.H. rear cover Not for US - J - SA - C8

Part#: 62515800 Qty: 1

625160001
(N) L.H. rear cover US - J - SA - C8

Part#: 62516000 Qty: 1

30619757001
R H. Cover Until car 66799

Part#: 61975700 Qty: 1

619757001
R H. Cover From car 66801

Part#: 61975700 Qty: 1

31619473001
L H. cover Without bracket

Part#: 61947300 Qty: 1

32600550011
Gasket LHD Until car 64651

Part#: 60055001 Qty: 1

601861031
Gasket RHD - Until car 64651

Part#: 60186103 Qty: 1

619326001
Gasket LHD - From car 64653

Part#: 61932600 Qty: 1

619335001
Gasket RHD - From car 64653

Part#: 61933500 Qty: 1

33602003001
R.H. grill D only

Part#: 60200300 Qty: 1

34602004091
L.H. grill D only

Part#: 60200409 Qty: 1

35109021212
Screw

Part#: 10902121 Qty: 2

36126437212
Washer

Part#: 12643721 Qty: 2

371068502
Washer

Part#: 106850 Qty: 2

38612996001
R.H. air duct - Until 31-5-88 Not for C7 - C8

Part#: 61299600 Qty: 1

623654001
R.H. air duct C7-C8 Until 31-5-88

Part#: 62365400 Qty: 1

625003001
R.H. air duct - From 1-6-88

Part#: 62500300 Qty: 1

39603736021
L.H. air duct - Until car 75272 Not for US - J - SA - AUS - C7

Part#: 60373602 Qty: 1

624324001
L H. air duct - From car 75273 Not for USA - J - SA - AUS - C7 - C8

Part#: 62432400 Qty: 1

40618235001
LH air duct. US-J-SA-AUS-C7-C8 Until 31-3-88

Part#: 61823500 Qty: 1

62468500
L.H. air duct US - J SA - AUS -C7-C8 From 1-4-88

Part#: 62468500

41617554001
R.H. gravel guard

Part#: 61755400 Qty: 1

42617555001
L.H. gravel guard

Part#: 61755500 Qty: 1

43606594001
Plug
$4.18

Part#: 60659400 Qty: 1$4.18

441011001
Fair lead
$28.76

Part#: 101100 Qty: 1$28.76

45619325001
Cover for lair lead - From car 64653 Only with lair lead 61932400 and 619334

Part#: 61932500 Qty: 1

46619477001
Grill filter for electro fan Until car 76075 -Not for US-J-SA

Part#: 61947700 Qty: 1

619459001
Grill + filter for electro fan Until car 76075 SA - J - US

Part#: 61945900 Qty: 1

47624925001
(N) protection grill

Part#: 62492500 Qty: 1

48610490001
Gasket

Part#: 61049000 Qty: 1

49619473001
L.H. cover Only for cars with filter 61947700 61945900

Part#: 61947300 Qty: 1

50624924001
(N) Protection grill

Part#: 62492400 Qty: 1

51624324001
L.H. air duct - From car 75273 Not for US - J - SA - AUS - C7 - C8

Part#: 62432400 Qty: 1

52624851001
(N) L.H. front gravel guard Not for US-J-SA

Part#: 62485100 Qty: 1

625767001
(N) L.H. front gravel guard US-J-SA

Part#: 62576700 Qty: 1

53603519051
(N) Cover LHD-Not for ABS For US-J-SA valid for all models without ABS

Part#: 60351905 Qty: 1

54624860001
(N) Cover LHD with ABS
$786.00

Part#: 62486000 Qty: 1$786.00

625489001
(N) Cover RHD with ABS Not for AUS

Part#: 62548900 Qty: 1

625913001
(N) Cover AUS with ABS

Part#: 62591300 Qty: 1

55619914001
R.H. cover

Part#: 61991400 Qty: 1

56619915001
L.H. cover

Part#: 61991500 Qty: 1

57401341081
Plug

Part#: 40134108 Qty: 1
