Ferrari Philadelphia Parts

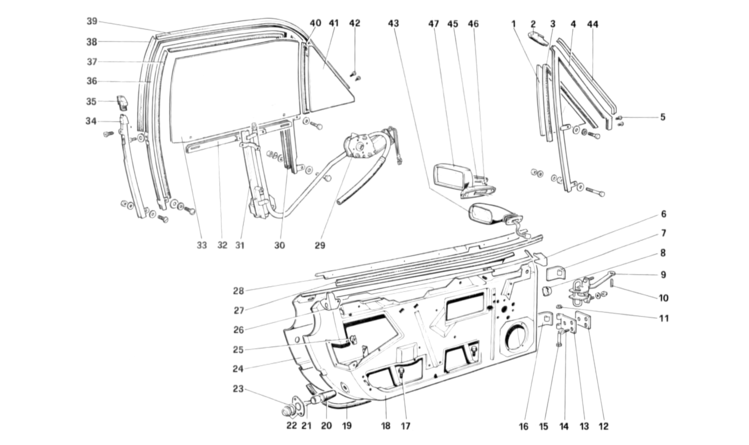

Table 115

Table 115 - Doors (From car 71597)

Ref.Part#Qty.DescriptionPrice
623122001
R.H. window lifting guide with motor
$445.00

Part#: 62312200 Qty: 1$445.00

623123001
L.H. window lifting guide with motor

Part#: 62312300 Qty: 1

1623444001
R.H. glass - GTS
$206.13

Part#: 62344400 Qty: 1$206.13

623445001
L.H. glass - GTS

Part#: 62344500 Qty: 1

2602658081
Upper R.H. terminal - GTS
$83.96

Part#: 60265808 Qty: 1$83.96

602659071
Upper L H terminal - GTS
$36.47

Part#: 60265907 Qty: 1$36.47

3605191002
Weatherstrip for fixed glass - GTS
$58.42

Part#: 60519100 Qty: 2$58.42

4602920001
Front frame for R.H. glass - GTS

Part#: 60292000 Qty: 1

602921091
Front frame for L.H. glass GTS

Part#: 60292109 Qty: 1

5608152004
Screw GTS
$3.12

Part#: 60815200 Qty: 4$3.12

6602690081
Front R.H. moulding GTB

Part#: 60269008 Qty: 1

606021001
Front R H, moulding - GTS
$25.53

Part#: 60602100 Qty: 1$25.53

602691071
Front L H. moulding - GTB

Part#: 60269107 Qty: 1

606022001
Front L.H. moulding - GTS
$29.80

Part#: 60602200 Qty: 1$29.80

7602654021
Upper mobile hinge. R H

Part#: 60265402 Qty: 1

602655011
Upper mobile hinge. L H

Part#: 60265501 Qty: 1

8401274093
Plug
$12.25

Part#: 40127409 Qty: 3$12.25

9609211002
Tie rod
$461.33

Part#: 60921100 Qty: 2$461.33

10607302002
Pin

Part#: 60730200 Qty: 2

11110657752
Seeger
$0.75

Part#: 11065775 Qty: 2$0.75

12602694044
Plate for fixed hinge

Part#: 60269404 Qty: 4

602656002
Lower hinge, complete (13+15+16)

Part#: 60265600 Qty: 2

602652041
Upper hinge (R.H.). complete (7+13+15)

Part#: 60265204 Qty: 1

602653031
Upper hinge (L.H.). complete (7+13+15)
$72.00

Part#: 60265303 Qty: 1$72.00

13602512044
Fixed hinge

Part#: 60251204 Qty: 4

145020640812
Screw
$11.57

Part#: 50206408 Qty: 12$11.57

15200741004
Pin for hinge

Part#: 20074100 Qty: 4

16500316082
Lower mobile hinge

Part#: 50031608 Qty: 2

17623027004
Plug
$19.77

Part#: 62302700 Qty: 4$19.77

18623030001
R.H. door - GTB-LHD

Part#: 62303000 Qty: 1

623031001
L.H. door - GTB-LHD -Not for US - SA

Part#: 62303100 Qty: 1

623265001
R.H. door - GTS-LHD -Not for US - SA

Part#: 62326500 Qty: 1

623266001
L.H. door - GTS-LHD

Part#: 62326600 Qty: 1

618098001
R.H. door - GTB

Part#: 61809800 Qty: 1

618099001
L.H. door - GTB -For US and SA

Part#: 61809900 Qty: 1

618142001
RH door-GTS -For US and SA

Part#: 61814200 Qty: 1

618143001
L.H. door - GTS

Part#: 61814300 Qty: 1

618571001
R.H. door - GTB

Part#: 61857100 Qty: 1

618572001
L.H. door GTB For RHD

Part#: 61857200 Qty: 1

618734001
RH door-GTS Not for AUS

Part#: 61873400 Qty: 1

618735001
L.H. door - GTS

Part#: 61873500 Qty: 1

619670001
RH door-GTB

Part#: 61967000 Qty: 1

619671001
L.H. door - GTB For AUS

Part#: 61967100 Qty: 1

619674001
RH door-GTS

Part#: 61967400 Qty: 1

619675001
L.H. door - GTS

Part#: 61967500 Qty: 1

19601596052
Under gasket
$31.05

Part#: 60159605 Qty: 2$31.05

20601012012
Protection for door marker light

Part#: 60101201 Qty: 2

211015252
Lamp

Part#: 101525 Qty: 2

22602912002
Open door marker light

Part#: 60291200 Qty: 2

23605910002
Gasket

Part#: 60591000 Qty: 2

24623063001
R.H. covering
$1159.25

Part#: 62306300 Qty: 1$1159.25

623064001
L H. covering
$1134.98

Part#: 62306400 Qty: 1$1134.98

25200370088
Clip

Part#: 20037008 Qty: 8

26602692061
Rear R.H. moulding - GTB

Part#: 60269206 Qty: 1

602693051
Rear L.H. moulding - GTB

Part#: 60269305 Qty: 1

606019001
Rear R.H. moulding - GTS
$37.59

Part#: 60601900 Qty: 1$37.59

606020001
Rear L.H. moulding - GTS
$30.60

Part#: 60602000 Qty: 1$30.60

27608275001
Outside gasket, R H

Part#: 60827500 Qty: 1

608276001
Outside gasket, L H

Part#: 60827600 Qty: 1

28618617001
R.H, moulding

Part#: 61861700 Qty: 1

618618001
L.H. moulding

Part#: 61861800 Qty: 1

29623021001
R.H. window motor (=62302100)

Part#: 62302100 Qty: 1

623125001
L.H. window motor (=62302200)
$613.00

Part#: 62312500 Qty: 1$613.00

30603021062
Front channel for glass - GTB

Part#: 60302106 Qty: 2

603022052
Front channel for glass - GTS

Part#: 60302205 Qty: 2

31623126001
R H. window lifting guide

Part#: 62312600 Qty: 1

623123001
L.H. window lifting guide

Part#: 62312300 Qty: 1

32619097001
Base for R.H. glass

Part#: 61909700 Qty: 1

619098001
Base for L.H. glass

Part#: 61909800 Qty: 1

33602638031
R.H. mobile glass - GTB

Part#: 60263803 Qty: 1

602639021
L.H. mobile glass GTB

Part#: 60263902 Qty: 1

601624091
RH. mobile glass - GTS

Part#: 60162409 Qty: 1

601625081
L.H. mobile glass GTS

Part#: 60162508 Qty: 1

34602922081
Rear glass frame (R H.) - GTS

Part#: 60292208 Qty: 1

602923071
Rear glass frame (L.H. ) - GTS

Part#: 60292307 Qty: 1

35602660041
R.H. terminal - GTS
$28.90

Part#: 60266004 Qty: 1$28.90

602661031
L.H. terminal - GTS
$30.00

Part#: 60266103 Qty: 1$30.00

36614435001
R.H. glass frame GTB

Part#: 61443500 Qty: 1

614436001
L.H. glass frame - GTB

Part#: 61443600 Qty: 1

37603022052
Rear channel for glass GTB

Part#: 60302205 Qty: 2

603433082
Rear channel for glass - GTS

Part#: 60343308 Qty: 2

38602784052
Gasket - GTB
$168.16

Part#: 60278405 Qty: 2$168.16

39602785042
Gasket GTS
$135.00

Part#: 60278504 Qty: 2$135.00

40603225002
Weatherstrip for fixed glass - GTB
$62.40

Part#: 60322500 Qty: 2$62.40

41602644051
R H. fixed glass - GTB

Part#: 60264405 Qty: 1

602645041
L.H. fixed glass - GTB

Part#: 60264504 Qty: 1

42202867044
Screw - GTB

Part#: 20286704 Qty: 4

43609607001
External mirror (R.H. )-Not for US-RHD-SA

Part#: 60960700 Qty: 1

609277001
External mirror (L.H.)-Not for US-RHD-SA

Part#: 60927700 Qty: 1

609607001
External mirror (R.H.)-For RHD -Not for AUS

Part#: 60960700 Qty: 1

609277001
External mirror (L.H.)-For RHD Not for AUS

Part#: 60927700 Qty: 1

619902001
External mirror (R.H.)-For AUS

Part#: 61990200 Qty: 1

608128001
External mirror (L.H.)-For AUS

Part#: 60812800 Qty: 1

44603431002
Gasket GTS

Part#: 60343100 Qty: 2

4545962
Cover - For US - SA
$65.00

Part#: 4596 Qty: 2$65.00

46132976116
Screw - For US - SA

Part#: 13297611 Qty: 6

47610956001
External mirror (R.H.) - For US-SA

Part#: 61095600 Qty: 1

608126001
External mirror (L.H.) - For US-SA

Part#: 60812600 Qty: 1

625125001
Mirror (R.H.) with horse - For US - J - SA

Part#: 62512500 Qty: 1

625124001
Mirror (L.H.) with horse - For US - J - SA

Part#: 62512400 Qty: 1
