Table 53

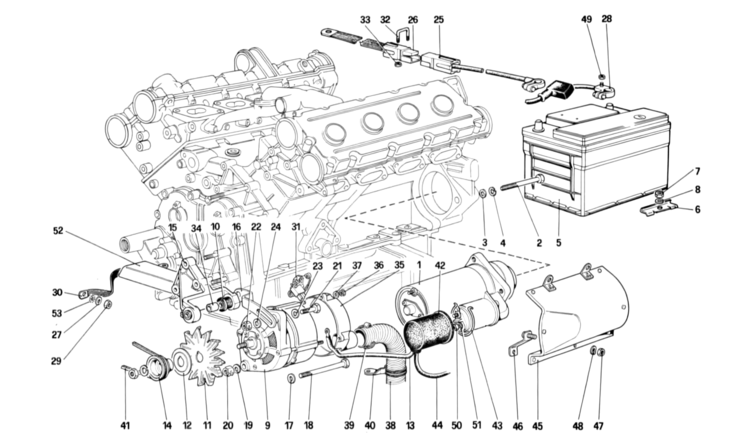

Table 53 - Electric generating system

Ref.Part#Qty.DescriptionPrice
11209671
Starter motor (BOSCH)

Part#: 120967 Qty: 1

2160451213
Fixing bolt
$11.00

Part#: 16045121 Qty: 3$11.00

3111980713
Washer

Part#: 11198071 Qty: 3

4105196213
Washer

Part#: 10519621 Qty: 3

51180601
Battery 12V 66 AH 300A In alternative use no. 61933900

Part#: 118060 Qty: 1

61065251
Bracket
$131.10

Part#: 106525 Qty: 1$131.10

7161008111
Nut

Part#: 16100811 Qty: 1

B1068521
Washer

Part#: 106852 Qty: 1

91217611
Alternator BOSCH 85A

Part#: 121761 Qty: 1

101179692
Elastic bush

Part#: 117969 Qty: 2

111188021
Fan

Part#: 118802 Qty: 1

121143051
Washer

Part#: 114305 Qty: 1

131211881
Generator connecting cables

Part#: 121188 Qty: 1

141237081
Pulley

Part#: 123708 Qty: 1

151246551
Support for alternator

Part#: 124655 Qty: 1

161179371
Plate for regulation

Part#: 117937 Qty: 1

17135504211
Washer

Part#: 13550421 Qty: 1

18159729211
Bolt
$5.89

Part#: 15972921 Qty: 1$5.89

19126014711
Washer

Part#: 12601471 Qty: 1

201177021
Nut

Part#: 117702 Qty: 1

21113438211
Screw

Part#: 11343821 Qty: 1

221177021
Nut

Part#: 117702 Qty: 1

23135504211
Washer

Part#: 13550421 Qty: 1

241053911
Washer

Part#: 105391 Qty: 1

251156601
Cable from battery to battery switch

Part#: 115660 Qty: 1

261156671
Copper braid from battery terminal to earth chassis

Part#: 115667 Qty: 1

2710615671
Washer

Part#: 10615671

28618041001
Cable from battery to starter motor

Part#: 61804100 Qty: 1

29161008211
Nut

Part#: 16100821 Qty: 1

301156681
Earth cable for engine

Part#: 115668 Qty: 1

311218401
Voltage regulator
$85.00

Part#: 121840 Qty: 1$85.00

321165911
Fixing plate of cable for motor

Part#: 116591 Qty: 1

33125740112
Nut

Part#: 12574011 Qty: 2

341246781
Nut

Part#: 124678 Qty: 1

351218371
Air conveyor

Part#: 121837 Qty: 1

36158964214
Nut

Part#: 15896421 Qty: 4

37126011714
Washer

Part#: 12601171 Qty: 4

381211901
Pipe

Part#: 121190 Qty: 1

39121800901
Clamp
$3.75

Part#: 12180090 Qty: 1$3.75

401218391
Clamp

Part#: 121839 Qty: 1

411237091
Alternator control belt After exhaustion use no 130493

Part#: 123709 Qty: 1

421139901
Cover protection

Part#: 113990 Qty: 1

43145602871
Ring

Part#: 14560287 Qty: 1

44619126001
Cable to starter motor from engine connector

Part#: 61912600 Qty: 1

451070381
Shield panel Not for US - CH and SA

Part#: 107038 Qty: 1

461070391
Bracket Not for US - CH and SA

Part#: 107039 Qty: 1

47158962111
Nut Not for US - CH and SA

Part#: 15896211 Qty: 1

48126437011
Washer Not for US - CH and SA

Part#: 12643701 Qty: 1

49161044111
Nut
$0.50

Part#: 16104411 Qty: 1$0.50

50161008111
Nut

Part#: 16100811 Qty: 1

51105166701
Washer
$1.25

Part#: 10516670 Qty: 1$1.25

521083041
Shield panel - For US - CH and SA

Part#: 108304 Qty: 1

53106154792
Washer

Part#: 10615479 Qty: 2
