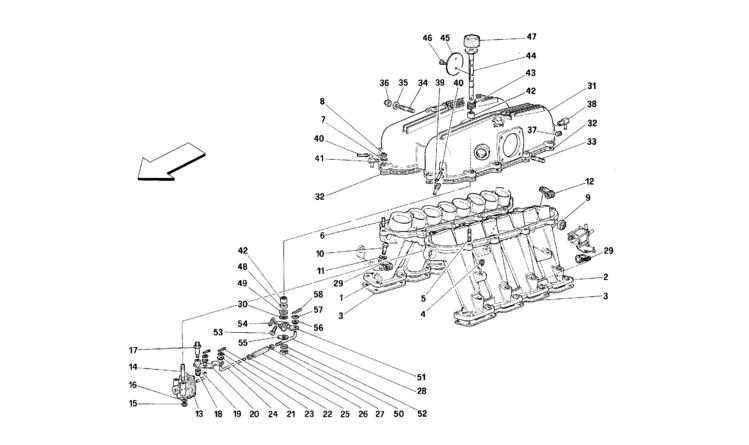

Table 12

Table 12 - MANIFOLDS AND COVERS

Ref.Part#Qty.DescriptionPrice
1504651
COMPLETE R.H. SUCTION MANIFOLD -Not for USA and CDN-

Part#: 150465 Qty: 1

1495031
COMPLETE R.H. SUCTION MANIFOLD -Valid for USA and CDN-

Part#: 149503 Qty: 1

1504661
COMPLETE L.H. SUCTION MANIFOLD -Not for USA and CDN-

Part#: 150466 Qty: 1

1495041
COMPLETE L.H. SUCTION MANIFOLD -Valid for USA and CDN-

Part#: 149504 Qty: 1

11
R.H. SUCTION MANIFOLD -With the complete R.h. suction manifold-

Part#: Qty: 1

21
L.H. SUCTION MANIFOLD -With the complete L.h. suction manifold-

Part#: Qty: 1

31380292
GASKET
$32.35

Part#: 138029 Qty: 2$32.35

4135257704
THREADED INSERT

Part#: 13525770 Qty: 4

51433072
STUD

Part#: 143307 Qty: 2

61150032118
STUD

Part#: 11500321 Qty: 18

71260127420
WASHER
$1.00

Part#: 12601274 Qty: 20$1.00

810123920
NUT
$3.50

Part#: 101239 Qty: 20$3.50

91004242
BALL JOINT
$23.35

Part#: 100424 Qty: 2$23.35

101604372120
SCREW

Part#: 16043721 Qty: 20

111260137420
WASHER
$0.49

Part#: 12601374 Qty: 20$0.49

12104506901
BRACKET
$1.70

Part#: 10450690 Qty: 1$1.70

131368151
PNEUMATIC CAPSULE
$55.59

Part#: 136815 Qty: 1$55.59

14110017212
STUD

Part#: 11001721 Qty: 2

15125778112
NUT

Part#: 12577811 Qty: 2

16144963012
WASHER
$0.30

Part#: 14496301 Qty: 2$0.30

171372771
STUD

Part#: 137277 Qty: 1

18125778111
NUT

Part#: 12577811 Qty: 1

19107300211
WASHER

Part#: 10730021 Qty: 1

201371351
LEVER
$27.15

Part#: 137135 Qty: 1$27.15

211372712
BUSHING

Part#: 137271 Qty: 2

22107945012
SPLIT PIN

Part#: 10794501 Qty: 2

23144962012
WASHER

Part#: 14496201 Qty: 2

241372701
L.H. THREAD TIE ROD

Part#: 137270 Qty: 1

25107911111
L.H. THREAD NUT

Part#: 10791111 Qty: 1

261372731
ADJUSTMENT SLEEVE
$2.95

Part#: 137273 Qty: 1$2.95

27107940111
R.H. THREAD NUT
$0.03

Part#: 10794011 Qty: 1$0.03

281372761
R.H. THREAD TIE ROD

Part#: 137276 Qty: 1

29104505903
BRACKET

Part#: 10450590 Qty: 3

30110656761
SEEGER RING

Part#: 11065676 Qty: 1

311
SUCTION MANIFOLDS COVER -Not as spare part- -With the complete cover-

Part#: Qty: 1

311495051
COMPLETE SUCTION MANIFOLDS COVER -Valid for USA and CDN-

Part#: 149505 Qty: 1

311504641
COMPLETE SUCTION MANIFOLDS COVER -Not for USA and CDN-

Part#: 150464 Qty: 1

321573172
GASKET -Not for USA and CDN-

Part#: 157317 Qty: 2

321380452
GASKET -Valid for USA and CDN-
$70.99

Part#: 138045 Qty: 2$70.99

33115004214
STUD

Part#: 11500421 Qty: 4

34135411244
STUD
$23.57

Part#: 13541124 Qty: 4$23.57

35144964018
WASHER

Part#: 14496401 Qty: 8

361012398
NUT
$3.50

Part#: 101239 Qty: 8$3.50

371415633
PLUG

Part#: 141563 Qty: 3

381280161
UNION

Part#: 128016 Qty: 1

391425071
UNION

Part#: 142507 Qty: 1

401173482
UNION

Part#: 117348 Qty: 2

411425111
UNION

Part#: 142511 Qty: 1

421369222
BUSHING
$1.33

Part#: 136922 Qty: 2$1.33

431381691
SPRING

Part#: 138169 Qty: 1

441565401
BUTTERFLY CONTROL SHAFT -Not for USA and CDN-

Part#: 156540 Qty: 1

441381731
BUTTERFLY CONTROL SHAFT -Valid for USA and CDN-

Part#: 138173 Qty: 1

451565421
AIR ADJUSTTING THROTTLE -Not for USA and CDN-

Part#: 156542 Qty: 1

451372801
AIR ADJUSTTING THROTTLE -Valid for USA and CDN-

Part#: 137280 Qty: 1

461369232
SCREW

Part#: 136923 Qty: 2

471393731
PROTECTION BOOT

Part#: 139373 Qty: 1

481292692
SEAL RING

Part#: 129269 Qty: 2

491369211
WASHER

Part#: 136921 Qty: 1

50161023111
NUT
$1.95

Part#: 16102311 Qty: 1$1.95

511542701
THROTTLE CONTROL LEVER

Part#: 154270 Qty: 1

521371261
WASHER

Part#: 137126 Qty: 1

531533991
SCREW

Part#: 153399 Qty: 1

541534001
SPRING

Part#: 153400 Qty: 1

551135661
SAFETY PLATE

Part#: 113566 Qty: 1

561372711
BUSHING

Part#: 137271 Qty: 1

57144962011
WASHER

Part#: 14496201 Qty: 1

58107945011
SPLIT PIN

Part#: 10794501 Qty: 1
