Ferrari Philadelphia Parts

Table 29

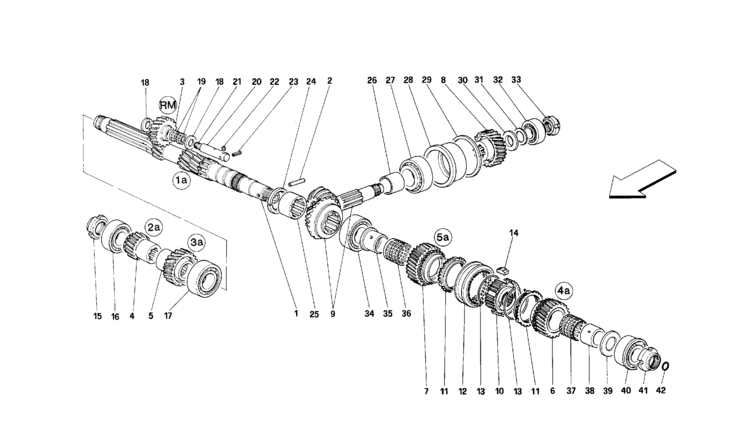

Table 29 - MAIN SHAFT GEARS

Ref.Part#Qty.DescriptionPrice
700007981
GEAR TRANSMISSION TORQUE TRANSMISSION RATIO 26/27) -Valid for GTB and GTS- -Valid for Spider and GD until exaustion- -Not for USA and CDN-

Part#: 70000798 Qty: 1

700007971
GEAR TRANSMISSION TORQUE TRANSMISSION RATIO 25/27) -Valid for GTB and GTS- -For Spider and GD after exaustion 70000798- -Not for USA and CDN-

Part#: 70000797 Qty: 1

700008001
GEAR TRANSMISSION TORQUE TRANSMISSION RATIO 25/29) -Valid for USA and CDN-

Part#: 70000800 Qty: 1

700007831
PINION KIT FOR 1ST GEAR AND REV.

Part#: 70000783 Qty: 1

700005891
PINION SET FOR 2ND GEAR

Part#: 70000589 Qty: 1

700005901
PINION SET FOR 3RD GEAR

Part#: 70000590 Qty: 1

700007841
PINION SET FOR 4TH GEAR

Part#: 70000784 Qty: 1

700005921
PINION SET FOR 5TH GEAR -Not for USA and CDN-

Part#: 70000592 Qty: 1

700008011
PINION SET FOR 5TH GEAR -Valid for USA and CDN-

Part#: 70000801 Qty: 1

11509011
MAIN SHAFT FOR GEAR LEVER -With the pinion kit for 1st and reverse only-

Part#: 150901 Qty: 1

2146014701
PIN

Part#: 14601470 Qty: 1

31327871
IDLE GEAR FOR REVERSE (Z.22) -With the pinion kit for 1st and reverse only-

Part#: 132787 Qty: 1

4700005891
PINION FOR 2ND GEAR (Z.19) -With the pinion kit for 2nd gear only-

Part#: 70000589 Qty: 1

5700005901
PINION FOR 3RD GEAR (Z.24) -With the pinion kit for 3rd gear only-

Part#: 70000590 Qty: 1

61509001
PINION FOR 4TH GEAR -With the pinion kit for 4th gear only-

Part#: 150900 Qty: 1

7700005921
PINION FOR 5TH GEAR COMPL. (Z.31) -With the pinion kit for 5th gear only- -Not for USA and CDN-

Part#: 70000592 Qty: 1

71559741
PINION FOR 5TH GEAR COMPL. (Z.31) -With the pinion kit for 5th gear only- -Valid for USA and CDN-

Part#: 155974 Qty: 1

81
GEAR ON PINION -With the assembly 70000798 70000797, 70000800 only-

Part#: Qty: 1

91680471
COMPLETE BEVEL SET TRANSMISSION RATIO 19/20
$1950.38

Part#: 168047 Qty: 1$1950.38

101060461
SYNCHRONIZER BODY
$1424.05

Part#: 106046 Qty: 1$1424.05

111506282
FLOATING RING FOR SYNCHRO.
$730.35

Part#: 150628 Qty: 2$730.35

121318011
SLEEVE FOR SYNCHRONIZER

Part#: 131801 Qty: 1

131452442
RING SPRING

Part#: 145244 Qty: 2

141262013
PAD FOR SYNCHRONIZER
$225.00

Part#: 126201 Qty: 3$225.00

151530021
RING NUT
$224.75

Part#: 153002 Qty: 1$224.75

161086561
BEARING
$385.00

Part#: 108656 Qty: 1$385.00

171310561
BEARING

Part#: 131056 Qty: 1

181314252
SPACER

Part#: 131425 Qty: 2

191047342
REVERSE IDLE GEAR ROLLER CAGE
$11.96

Part#: 104734 Qty: 2$11.96

201317981
REVERSE IDLE GEAR PIN

Part#: 131798 Qty: 1

21102755501
PLUG

Part#: 10275550 Qty: 1

22102675501
PLUG

Part#: 10267550 Qty: 1

23146014701
PIN

Part#: 14601470 Qty: 1

241446171
SPACER RING
$47.03

Part#: 144617 Qty: 1$47.03

251446161
SPACER
$135.04

Part#: 144616 Qty: 1$135.04

261313351
BAG FOR BEARING
$508.50

Part#: 131335 Qty: 1$508.50

271310151
BEARING
$431.79

Part#: 131015 Qty: 1$431.79

281313561
BAG FOR BEARING

Part#: 131356 Qty: 1

291313881
SPACER mm. 1,8

Part#: 131388 Qty: 1

291313890
SPACER mm. 1,9

Part#: 131389

291313900
SPACER mm. 2,0

Part#: 131390

291313910
SPACER mm. 2,1
$35.16

Part#: 131391$35.16

291313920
SPACER mm. 2,2

Part#: 131392

291313930
SPACER mm. 2,3

Part#: 131393

301313721
SPACER

Part#: 131372 Qty: 1

311313741
SPACER mm. 1,8
$25.13

Part#: 131374 Qty: 1$25.13

311313750
SPACER mm. 1,9
$56.52

Part#: 131375$56.52

311410440
SPACER mm. 1,95

Part#: 141044

311313760
SPACER mm. 2,0

Part#: 131376

311410460
SPACER mm. 2,05

Part#: 141046

311313770
SPACER mm. 2,1

Part#: 131377

311410480
SPACER mm. 2,15

Part#: 141048

311313780
SPACER mm. 2,2

Part#: 131378

311313790
SPACER mm. 2,3

Part#: 131379

321310161
BEARING
$107.83

Part#: 131016 Qty: 1$107.83

331051371
RING NUT
$60.00

Part#: 105137 Qty: 1$60.00

341387141
BEARING

Part#: 138714 Qty: 1

351313581
ROLLER CAGE RACE

Part#: 131358 Qty: 1

361090021
5th GEAR ROLLER CAGE
$28.00

Part#: 109002 Qty: 1$28.00

371090021
4th GEAR ROLLER CAGE
$28.00

Part#: 109002 Qty: 1$28.00

381508991
TRACK FOR 4th GEAR ROLLER CAGE

Part#: 150899 Qty: 1

391508931
SPACER mm. 4.7

Part#: 150893 Qty: 1

391508940
SPACER mm. 4.8

Part#: 150894

391508950
SPACER mm. 4.9

Part#: 150895

391508920
SPACER mm. 5.0

Part#: 150892

391509020
SPACER mm. 5.1

Part#: 150902

391508960
SPACER mm. 5.2

Part#: 150896

391538850
SPACER mm. 5.3

Part#: 153885

391538860
SPACER mm. 5.4

Part#: 153886

391541180
SPACER mm. 5.5

Part#: 154118

401497741
BEARING

Part#: 149774 Qty: 1

411530001
RING NUT
$190.70

Part#: 153000 Qty: 1$190.70

421097241
O.R. GASKET
$1.90

Part#: 109724 Qty: 1$1.90
