Ferrari Philadelphia Parts

Table 104

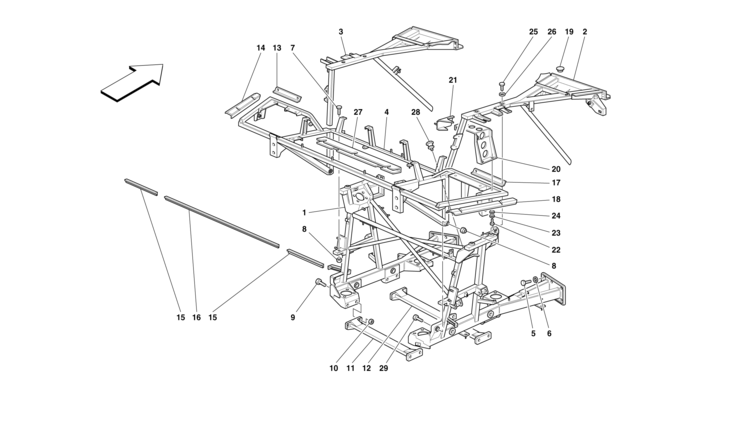

Table 104 - FRAME - REAR PART ELEMENTS

Ref.Part#Qty.DescriptionPrice
1642163001
MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Not for USA, CDN, GD, CH and SA-

Part#: 64216300 Qty: 1

1644933001
MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for USA, CDN and SA-

Part#: 64493300 Qty: 1

1644295001
MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for GD-

Part#: 64429500 Qty: 1

1646276001
MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for CH-

Part#: 64627600 Qty: 1

2645386001
R.H. UPPER FIXED FRAME

Part#: 64538600 Qty: 1

3640482001
L.H. UPPER FIXED FRAME -Not for Spider-

Part#: 64048200 Qty: 1

3649691001
L.H. UPPER FIXED FRAME -Not as spare part replaced by 64048200- -Valid for Spider-

Part#: 64969100 Qty: 1

4640486001
BUMPER SUPPORT TRESTLE ASSEMBLY -Not for USA, CDN, CH and SA-

Part#: 64048600 Qty: 1

4644550001
BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for USA and SA-

Part#: 64455000 Qty: 1

4645126001
BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for CDN-

Part#: 64512600 Qty: 1

4646274001
BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for CH-

Part#: 64627400 Qty: 1

51614202112
SCREW
$23.50

Part#: 16142021 Qty: 12$23.50

610685412
WASHER

Part#: 106854 Qty: 12

7114220212
SCREW -Not for USA, CDN, SA-

Part#: 11422021 Qty: 2

7158621342
SCREW -Valid for USA, CDN, SA-
$4.16

Part#: 15862134 Qty: 2$4.16

81502384
NUT
$1.15

Part#: 150238 Qty: 4$1.15

9143312248
SCREW
$4.45

Part#: 14331224 Qty: 8$4.45

101424388
NUT

Part#: 142438 Qty: 8

11639485001
REAR REMOVABLE CROSS MEMBER

Part#: 63948500 Qty: 1

12639488001
FRONT REMOVABLE CROSS MEMBER

Part#: 63948800 Qty: 1

13621237001
WHEELHOUSE FIXING L.H. PLATE

Part#: 62123700 Qty: 1

14621290001
FENDER FIXING L.H. PLATE

Part#: 62129000 Qty: 1

15620548002
FRONT PLATE FOR REAR SIDE COVER SUPPORT

Part#: 62054800 Qty: 2

16620550001
CENTRAL PLATE FOR REAR SIDE COVER SUPPORT

Part#: 62055000 Qty: 1

17621237001
WHEELHOUSE FIXING R.H. PLATE

Part#: 62123700 Qty: 1

18621289001
FENDER FIXING R.H. PLATE

Part#: 62128900 Qty: 1

19145067872
PLUG
$0.24

Part#: 14506787 Qty: 2$0.24

201583322
REAR BRACKET
$704.62

Part#: 158332 Qty: 2$704.62

21642957001
TERMINAL BOX FIXING BRACKET -Not as spare part now- -Replaced by 64295600-

Part#: 64295700 Qty: 1

21642956001
TERMINAL BOX FIXING BRACKET
$238.90

Part#: 64295600 Qty: 1$238.90

22143057244
SCREW
$0.75

Part#: 14305724 Qty: 4$0.75

23106154744
WASHER
$0.23

Part#: 10615474 Qty: 4$0.23

24105194244
WASHER
$0.39

Part#: 10519424 Qty: 4$0.39

25633698004
SCREW
$1.01

Part#: 63369800 Qty: 4$1.01

261274974
WASHER
$0.25

Part#: 127497 Qty: 4$0.25

27646080001
PIPE RETAINING MOLDING -Valid till car Nr. 101579-

Part#: 64608000 Qty: 1

27646966001
PIPE RETAINING MOLDING -Valid from car Nr. 101580-

Part#: 64696600 Qty: 1

281518561
NEGATIVE TERMINAL

Part#: 151856 Qty: 1

29114220212
SCREW -Not for USA, CDN and SA- -Valid till stock exhaustion-

Part#: 11422021 Qty: 2

29158621342
SCREW -Not for USA, CDN and SA- -Valid after stock exhaustion of 11422021-
$4.16

Part#: 15862134 Qty: 2$4.16

29159777242
SCREW -Valid for USA, CDN and SA-

Part#: 15977724 Qty: 2
