Table 17

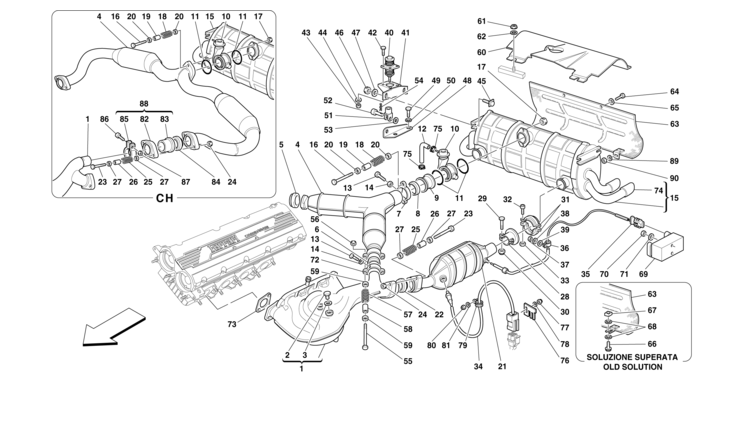

Table 17 - EXHAUST SYSTEM

Ref.Part#Qty.DescriptionPrice
11802941
L.H. EXHAUST MANIFOLD -Not for CH-

Part#: 180294 Qty: 1

11799481
L.H. EXHAUST MANIFOLD -Valid for CH-
$5679.10

Part#: 179948 Qty: 1$5679.10

11802931
R.H. EXHAUST MANIFOLD -Not for CH-

Part#: 180293 Qty: 1

11799471
R.H. EXHAUST MANIFOLD -Valid for CH-

Part#: 179947 Qty: 1

21108608
THREADED PLUG
$16.50

Part#: 110860 Qty: 8$16.50

3102984608
GASKET
$1.00

Part#: 10298460 Qty: 8$1.00

41599571
COMPLETE BY-PASS TUBE -Not for CH, SA and ZA- -Valid till stock exhaustion-

Part#: 159957 Qty: 1

41665801
COMPLETE BY-PASS TUBE -Not for CH, SA and ZA- -Valid after stock exhaustion 159957-

Part#: 166580 Qty: 1

41645261
COMPLETE BY-PASS TUBE -Valid for CH-

Part#: 164526 Qty: 1

41629311
COMPLETE BY-PASS TUBE -Valid for SA and ZA- -Valid till stock exhaustion-

Part#: 162931 Qty: 1

41665811
COMPLETE BY-PASS TUBE -Valid for SA and ZA- -Valid after stock exhaustion of 162931-

Part#: 166581 Qty: 1

51599141
GASKET -Not for CH-
$33.43

Part#: 159914 Qty: 1$33.43

61599221
GASKET -Not for CH-
$35.19

Part#: 159922 Qty: 1$35.19

71599101
FLANGE -Not for CH-

Part#: 159910 Qty: 1

81599061
GASKET -Not for CH-
$54.10

Part#: 159906 Qty: 1$54.10

91599371
SPACER -Not for CH-

Part#: 159937 Qty: 1

101550061
BY-PASS VALVE

Part#: 155006 Qty: 1

111193682
GASKET

Part#: 119368 Qty: 2

121630521
RUBBER HOSE TO PIPE TO ENGINE -Not for CH, SA and ZA-

Part#: 163052 Qty: 1

121680691
RUBBER HOSE TO PIPE TO ENGINE -Valid for CH-

Part#: 168069 Qty: 1

121482041
RUBBER HOSE TO PIPE TO ENGINE -Valid for SA and ZA-
$31.00

Part#: 148204 Qty: 1$31.00

131619322
SCREW -Not for CH-

Part#: 161932 Qty: 2

14158962142
NUT -Not for CH-
$0.75

Part#: 15896214 Qty: 2$0.75

151699131
COMPLETE EXHAUST SILENCER -Valid till car Nr.101579- -Not for CH-

Part#: 169913 Qty: 1

151574031
COMPLETE EXHAUST SILENCER -Valid from car Nr.101580- -Not for CH-

Part#: 157403 Qty: 1

151715801
COMPLETE EXHAUST SILENCER -Valid for CH till car Nr.101579-

Part#: 171580 Qty: 1

151651841
COMPLETE EXHAUST SILENCER -Valid for CH from car Nr.101580-

Part#: 165184 Qty: 1

161600502
SCREW -Not for CH-
$4.25

Part#: 160050 Qty: 2$4.25

161645572
SCREW -Valid for CH-
$14.97

Part#: 164557 Qty: 2$14.97

171182512
NUT
$12.86

Part#: 118251 Qty: 2$12.86

181117432
SPRING
$41.43

Part#: 111743 Qty: 2$41.43

191147492
SPACER
$3.63

Part#: 114749 Qty: 2$3.63

201560934
WASHER

Part#: 156093 Qty: 4

211599461
L.H. CATALYST -Not for USA, CDN, CH, SA and ZA-

Part#: 159946 Qty: 1

211631981
L.H. CATALYST -Valid for USA, CDN and CH-

Part#: 163198 Qty: 1

211630721
L.H. EXHAUST PRE-MUFFLER -Valid for SA and ZA-

Part#: 163072 Qty: 1

211599471
R.H. CATALYST -Not for USA, CDN, CH, SA and ZA-

Part#: 159947 Qty: 1

211631971
R.H. CATALYST -Valid for USA, CDN and CH-

Part#: 163197 Qty: 1

211630461
R.H. EXHAUST PRE-MUFFLER -Valid for SA and ZA-

Part#: 163046 Qty: 1

221549842
GASKET
$24.88

Part#: 154984 Qty: 2$24.88

231374314
SCREW
$13.50

Part#: 137431 Qty: 4$13.50

241147484
NUT
$12.08

Part#: 114748 Qty: 4$12.08

251117434
SPRING
$41.43

Part#: 111743 Qty: 4$41.43

261147494
SPACER
$3.63

Part#: 114749 Qty: 4$3.63

271127618
WASHER

Part#: 112761 Qty: 8

281574172
FLANGE
$137.53

Part#: 157417 Qty: 2$137.53

291626474
SCREW
$6.70

Part#: 162647 Qty: 4$6.70

301182514
NUT
$12.86

Part#: 118251 Qty: 4$12.86

311574744
CLAMP
$60.71

Part#: 157474 Qty: 4$60.71

321672664
SCREW
$2.45

Part#: 167266 Qty: 4$2.45

331318374
NUT
$8.90

Part#: 131837 Qty: 4$8.90

341550102
LAMBDA FEELER -Not for SA and ZA-

Part#: 155010 Qty: 2

341582312
LAMBDA FEELER -Valid for SA and ZA-

Part#: 158231 Qty: 2

351575012
THERMOCOUPLE
$266.48

Part#: 157501 Qty: 2$266.48

36104203012
BRACKET

Part#: 10420301 Qty: 2

37158962112
NUT

Part#: 15896211 Qty: 2

381068502
WASHER

Part#: 106850 Qty: 2

39144964012
WASHER

Part#: 14496401 Qty: 2

401391802
PAD
$882.10

Part#: 139180 Qty: 2$882.10

411368772
BRACKET

Part#: 136877 Qty: 2

42109776248
SCREW

Part#: 10977624 Qty: 8

43158964708
NUT
$2.27

Part#: 15896470 Qty: 8$2.27

441274938
WASHER
$0.10

Part#: 127493 Qty: 8$0.10

451375344
SCREW
$14.47

Part#: 137534 Qty: 4$14.47

461147484
NUT
$12.08

Part#: 114748 Qty: 4$12.08

471127614
WASHER

Part#: 112761 Qty: 4

481573431
R.H. SMALL PLATE

Part#: 157343 Qty: 1

481573441
L.H. SMALL PLATE

Part#: 157344 Qty: 1

49160432214
SCREW
$0.10

Part#: 16043221 Qty: 4$0.10

501274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

51100078712
FORK
$26.76

Part#: 10007871 Qty: 2$26.76

52100508112
PIN

Part#: 10050811 Qty: 2

53105196242
WASHER
$0.20

Part#: 10519624 Qty: 2$0.20

54107343012
SPLIT PIN

Part#: 10734301 Qty: 2

55160448344
SCREW
$2.82

Part#: 16044834 Qty: 4$2.82

561147484
NUT
$12.08

Part#: 114748 Qty: 4$12.08

571117434
SPRING
$41.43

Part#: 111743 Qty: 4$41.43

581147494
SPACER
$3.63

Part#: 114749 Qty: 4$3.63

591560938
WASHER

Part#: 156093 Qty: 8

60642431001
HEAT PROTECTION UPPER SHIELD -Not for CH-

Part#: 64243100 Qty: 1

60646118001
HEAT PROTECTION UPPER SHIELD -Valid for CH-

Part#: 64611800 Qty: 1

61125742115
NUT

Part#: 12574211 Qty: 5

62105194245
WASHER
$0.39

Part#: 10519424 Qty: 5$0.39

63642964001
HEAT PROTECTION SHIELD -Valid till Ass. Nr. 20189- -Not for USA and CDN-

Part#: 64296400 Qty: 1

63648894001
HEAT PROTECTION SHIELD -Valid from Ass. Nr. 20190- -Not for USA and CDN-

Part#: 64889400 Qty: 1

63646085001
HEAT PROTECTION SHIELD -Valid for USA and CDN till car Ass. Nr. 18788-

Part#: 64608500 Qty: 1

63642964001
HEAT PROTECTION SHIELD -Valid also for USA and CDN from car Ass. Nr. 18789 and only for USA till Ass. Nr. 21520-

Part#: 64296400 Qty: 1

63648894001
HEAT PROTECTION SHIELD -Valid also for USA and CDN from car Ass. Nr. 21521-

Part#: 64889400 Qty: 1

64138365212
SCREW

Part#: 13836521 Qty: 2

65126437112
WASHER

Part#: 12643711 Qty: 2

66138365212
SCREW

Part#: 13836521 Qty: 2

67606591002
NUT WITH CAGE

Part#: 60659100 Qty: 2

68126437114
WASHER

Part#: 12643711 Qty: 4

691604542
CATALYST TEMPERATURE CONTROL STATION

Part#: 160454 Qty: 2

70627903004
NUT
$0.24

Part#: 62790300 Qty: 4$0.24

71105192244
WASHER

Part#: 10519224 Qty: 4

721599451
L.H. FLANGE -Not for CH-

Part#: 159945 Qty: 1

731510648
GASKET
$9.98

Part#: 151064 Qty: 8$9.98

741599834
TERMINAL COVER
$140.89

Part#: 159983 Qty: 4$140.89

751579902
SCREW COLLAR

Part#: 157990 Qty: 2

761557512
CLIP
$4.95

Part#: 155751 Qty: 2$4.95

77125740112
NUT

Part#: 12574011 Qty: 2

78105192242
WASHER

Part#: 10519224 Qty: 2

79104412904
BRACKET WITH SHEATH
$1.96

Part#: 10441290 Qty: 4$1.96

80125742114
NUT

Part#: 12574211 Qty: 4

81105194244
WASHER
$0.39

Part#: 10519424 Qty: 4$0.39

821365102
FLANGE -Valid for CH- -Not as spare part- -With the assembly 141874-

Part#: 136510 Qty: 2

831410072
STUB PIPE -Valid for CH- -Not as spare part- -With the assembly 141874-

Part#: 141007 Qty: 2

841549842
GASKET -Valid for CH-
$24.88

Part#: 154984 Qty: 2$24.88

851410082
CLAMP FOR EXTENSION -Valid for CH- -Not as spare part- -With the assembly 141874-

Part#: 141008 Qty: 2

86144331742
SCREW -Valid for CH-

Part#: 14433174 Qty: 2

871164162
NUT -Valid for CH-
$1.05

Part#: 116416 Qty: 2$1.05

881418742
STUB PIPE -Valid for CH-
$743.70

Part#: 141874 Qty: 2$743.70

89126397242
WASHER -Valid from Ass. Nr. 21980-
$0.50

Part#: 12639724 Qty: 2$0.50

90140481152
NUT -Valid from car Nr. 21980-

Part#: 14048115 Qty: 2
