Ferrari Philadelphia Parts

Table 23

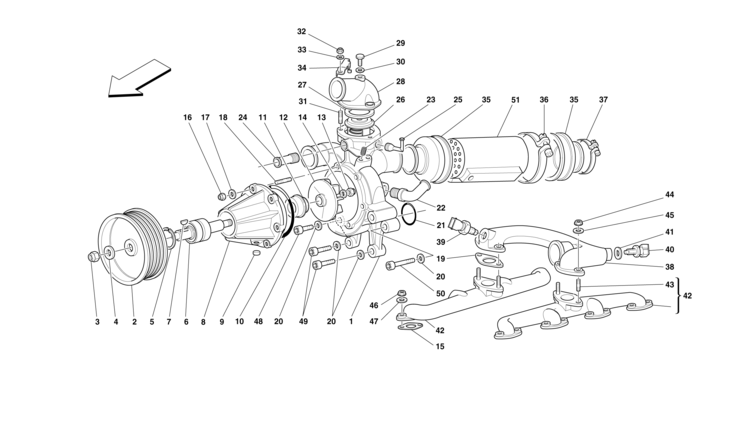

Table 23 - WATER PUMP AND OIL/WATER HEAT EXCHANGER

Ref.Part#Qty.DescriptionPrice
11580011
WATER PUMP BODY -Valid till engine Nr. 37561- -Not as spare part- -Replace with 163875 + proper fixings Pos. 49 and 50 to assemble together-

Part#: 158001 Qty: 1

11654781
WATER PUMP BODY -Valid from engine Nr. 37562-

Part#: 165478 Qty: 1

21580141
WATER PUMP CONTROL PULLEY -Valid for steering box with power steering cars-

Part#: 158014 Qty: 1

21595841
WATER PUMP CONTROL PULLEY -Valid for mechanical steering box cars-

Part#: 159584 Qty: 1

31027421
NUT
$3.25

Part#: 102742 Qty: 1$3.25

4126468211
WASHER

Part#: 12646821 Qty: 1

5110599761
SEEGER RING
$1.50

Part#: 11059976 Qty: 1$1.50

61437421
BEARING COMPLETE WITH SHAFT
$242.46

Part#: 143742 Qty: 1$242.46

7102023201
DISC KEY
$1.00

Part#: 10202320 Qty: 1$1.00

81545461
WATER PUMP COVER

Part#: 154546 Qty: 1

9101588011
PLUG
$1.50

Part#: 10158801 Qty: 1$1.50

101378681
O.R. GASKET
$12.25

Part#: 137868 Qty: 1$12.25

111309321
FRONT SEAL RING

Part#: 130932 Qty: 1

121545421
WATER PUMP IMPELLER
$168.09

Part#: 154542 Qty: 1$168.09

131004361
NUT
$9.36

Part#: 100436 Qty: 1$9.36

14111940791
WASHER

Part#: 11194079 Qty: 1

151413328
GASKET
$2.29

Part#: 141332 Qty: 8$2.29

161027416
NUT
$0.75

Part#: 102741 Qty: 6$0.75

17126012746
WASHER
$1.00

Part#: 12601274 Qty: 6$1.00

18135409246
STUD
$36.67

Part#: 13540924 Qty: 6$36.67

191523622
GASKET
$3.47

Part#: 152362 Qty: 2$3.47

20126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

211010441
O.R. GASKET
$3.70

Part#: 101044 Qty: 1$3.70

221228441
UNION

Part#: 122844 Qty: 1

23135255702
THREADED INSERT

Part#: 13525570 Qty: 2

241062271
UNION
$22.50

Part#: 106227 Qty: 1$22.50

251574001
UNION

Part#: 157400 Qty: 1

261303461
THERMOSTAT -Valid till stock exhaustion-

Part#: 130346 Qty: 1

26109671S1
THERMOSTAT -Valid after stock exhaustion of 130346-
$137.58

Part#: 109671S Qty: 1$137.58

271051921
GASKET
$16.25

Part#: 105192 Qty: 1$16.25

281365711
THERMOSTATIC VALVE COVER

Part#: 136571 Qty: 1

291323491
UNION
$5.76

Part#: 132349 Qty: 1$5.76

30102977601
GASKET
$1.00

Part#: 10297760 Qty: 1$1.00

31135410243
STUD
$0.75

Part#: 13541024 Qty: 3$0.75

321027413
NUT
$0.75

Part#: 102741 Qty: 3$0.75

33126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

341638561
BRACKET

Part#: 163856 Qty: 1

351450152
SLEEVE
$385.92

Part#: 145015 Qty: 2$385.92

361534302
CLAMP - D. 85 mm.-
$7.50

Part#: 153430 Qty: 2$7.50

371534292
CLAMP - D. 50 mm.-
$17.19

Part#: 153429 Qty: 2$17.19

381544451
WATER OUTLET MANIFOLD CONNECTION DUCT

Part#: 154445 Qty: 1

391486771
WATER TEMPERATURE TRANSMITTER

Part#: 148677 Qty: 1

401257692
WATER TEMPERATURE SENSOR
$71.11

Part#: 125769 Qty: 2$71.11

41102984602
GASKET
$1.00

Part#: 10298460 Qty: 2$1.00

421544502
COMPLETE WATER OUTLET MANIFOLD

Part#: 154450 Qty: 2

43135167244
STUD

Part#: 13516724 Qty: 4

441509784
NUT

Part#: 150978 Qty: 4

45126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

4613287716
NUT
$3.25

Part#: 132877 Qty: 16$3.25

471260427416
WASHER
$0.30

Part#: 12604274 Qty: 16$0.30

48143064241
SCREW - L. 25 mm.-
$0.69

Part#: 14306424 Qty: 1$0.69

49143064242
SCREW - L. 25 mm.- -Valid for water pump body 158001-
$0.69

Part#: 14306424 Qty: 2$0.69

49143066242
SCREW - L. 35 mm.- -Valid for water pump body 163875-

Part#: 14306624 Qty: 2

50143066241
SCREW - L. 35 mm.- -Valid for water pump body 158001-

Part#: 14306624 Qty: 1

50143068241
SCREW - L. 45 mm.- -Valid for water pump body 163875-

Part#: 14306824 Qty: 1

511808461
WATER-OIL HEAT EXCHANGER
$1727.31

Part#: 180846 Qty: 1$1727.31
