Ferrari Philadelphia Parts

Table 24

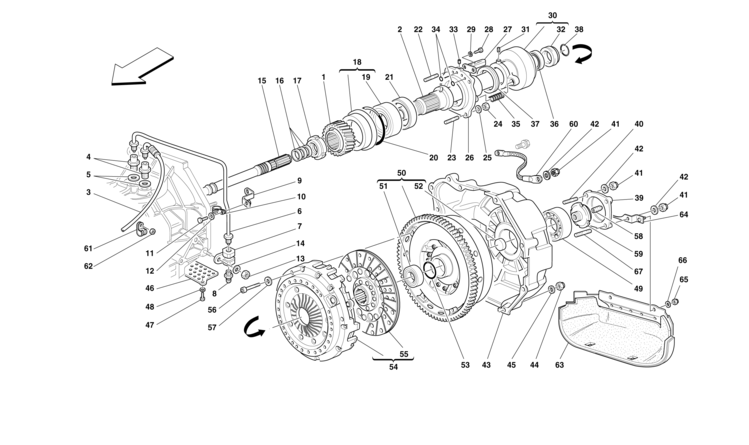

Table 24 - CLUTCH AND CONTROLS

Ref.Part#Qty.DescriptionPrice
1640501
COMPLETE CLUTCH HOUSING

Part#: 164050 Qty: 1

700008271
GEAR TRANSMISSION TORQUE WITH SHAFT (RATIO 25/29) -Not for CH-

Part#: 70000827 Qty: 1

700008391
GEAR TRANSMISSION TORQUE WITH SHAFT (RATIO 25/27) -Valid for CH-

Part#: 70000839 Qty: 1

11600591
DRIVING GEAR WITH SHAFT -Not as spare part- -With the complete assembly 70000827- -Not for CH-

Part#: 160059 Qty: 1

11563651
DRIVING GEAR WITH SHAFT -Not as spare part- -With the complete assembly 70000839- -Valid for CH-

Part#: 156365 Qty: 1

21455621
CLUTCH SHAFT
$2735.68

Part#: 145562 Qty: 1$2735.68

31551451
CLUTCH CONTROL HOSE

Part#: 155145 Qty: 1

41486042
THREADED UNION

Part#: 148604 Qty: 2

5102570602
GASKET
$1.00

Part#: 10257060 Qty: 2$1.00

61478391
DRAIN PIPE

Part#: 147839 Qty: 1

71399211
BLOCK

Part#: 139921 Qty: 1

81216991
BLEEDER SCREW
$44.35

Part#: 121699 Qty: 1$44.35

91614791
BRACKET

Part#: 161479 Qty: 1

10104409901
BRACKET WITH SHEATH

Part#: 10440990 Qty: 1

11109020111
SCREW

Part#: 10902011 Qty: 1

121068501
WASHER

Part#: 106850 Qty: 1

131339881
NUT

Part#: 133988 Qty: 1

14144966011
WASHER

Part#: 14496601 Qty: 1

151629091
PROPELLER SHAFT

Part#: 162909 Qty: 1

161372493
SEAL RING
$17.65

Part#: 137249 Qty: 3$17.65

171530091
RING NUT
$146.08

Part#: 153009 Qty: 1$146.08

181486671
BAG COMPLETE OF BEARING
$2816.52

Part#: 148667 Qty: 1$2816.52

191310541
BEARING

Part#: 131054 Qty: 1

201431781
O.R. GASKET
$4.50

Part#: 143178 Qty: 1$4.50

211316511
GASKET
$61.49

Part#: 131651 Qty: 1$61.49

22123545241
STUD
$31.50

Part#: 12354524 Qty: 1$31.50

23135432243
STUD

Part#: 13543224 Qty: 3

24161008114
NUT

Part#: 16100811 Qty: 4

251274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

261449841
BEARING SUPPORT FLANGE
$2772.00

Part#: 144984 Qty: 1$2772.00

271383821
PLATE

Part#: 138382 Qty: 1

28109775242
SCREW

Part#: 10977524 Qty: 2

291274932
WASHER
$0.10

Part#: 127493 Qty: 2$0.10

301777841
COMPLETE THRUST BEARING -Valid till stock exhaustion-
$2498.81

Part#: 177784 Qty: 1$2498.81

301777841
COMPLETE THRUST BEARING -Valid after stock exhaustion of 156912-
$2498.81

Part#: 177784 Qty: 1$2498.81

31141636701
FLEXIBLE PIN
$0.68

Part#: 14163670 Qty: 1$0.68

321383871
SCRAPER RING
$22.55

Part#: 138387 Qty: 1$22.55

33102675502
THREADED PLUG

Part#: 10267550 Qty: 2

341218131
O.R. GASKET
$1.90

Part#: 121813 Qty: 1$1.90

351217172
PRELOAD SPRING
$24.50

Part#: 121717 Qty: 2$24.50

361394381
GASKET
$18.65

Part#: 139438 Qty: 1$18.65

371518221
GASKET
$43.46

Part#: 151822 Qty: 1$43.46

38133981761
STOP RING
$2.23

Part#: 13398176 Qty: 1$2.23

391714081
SMALL COVER -Valid till stock exhaustion-

Part#: 171408 Qty: 1

391714081
SMALL COVER -Valid after stock exhaustion of 139184-

Part#: 171408 Qty: 1

40123545242
STUD
$31.50

Part#: 12354524 Qty: 2$31.50

41161008114
NUT

Part#: 16100811 Qty: 4

42126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

431578871
CLUTCH HOUSING -Not as spare part- -With the complete clutch housing-

Part#: 157887 Qty: 1

44161008118
NUT

Part#: 16100811 Qty: 8

45126013748
WASHER
$0.49

Part#: 12601374 Qty: 8$0.49

461561181
DRILLET PLATE

Part#: 156118 Qty: 1

47109021242
SCREW
$0.65

Part#: 10902124 Qty: 2$0.65

48126012742
WASHER
$1.00

Part#: 12601274 Qty: 2$1.00

491369571
BEARING

Part#: 136957 Qty: 1

501595071
FLYWHEEL

Part#: 159507 Qty: 1

511655391
BEARING
$99.59

Part#: 165539 Qty: 1$99.59

521655401
SPACER

Part#: 165540 Qty: 1

531049841
O.R. GASKET
$2.19

Part#: 104984 Qty: 1$2.19

541577541
COMPLETE CLUTCH
$2127.20

Part#: 157754 Qty: 1$2127.20

551577561
CLUTCH DISC
$425.00

Part#: 157756 Qty: 1$425.00

56143056749
SCREW
$0.50

Part#: 14305674 Qty: 9$0.50

57105692799
WASHER
$0.25

Part#: 10569279 Qty: 9$0.25

58138134211
SCREW
$7.05

Part#: 13813421 Qty: 1$7.05

591681561
SPECIAL SCREW -Valid till stock exhaustion-

Part#: 168156 Qty: 1

591681561
SPECIAL SCREW -Valid after stock exhaustion of 156826-

Part#: 168156 Qty: 1

601550731
CABLE FOR ENGINE-FRAME EARTH

Part#: 155073 Qty: 1

61104415901
BRACKET WITH SHEATH
$0.46

Part#: 10441590 Qty: 1$0.46

62125742111
NUT

Part#: 12574211 Qty: 1

631715741
INSULATING SHIELD -Valid till stock exhaustion- -After mount insulating shield 170694+ braket 171574-

Part#: 171574 Qty: 1

631706941
INSULATING SHIELD -Valid after stock exhaustion of 163757-

Part#: 170694 Qty: 1

641637581
BRACKET -Valid till stock exhaustion-

Part#: 163758 Qty: 1

641715741
BRACKET -Valid after stock exhaustion of 163758-

Part#: 171574 Qty: 1

651027412
NUT -For F355 not as spare part- -Replaced by 14058411-
$0.75

Part#: 102741 Qty: 2$0.75

65140584112
NUT -Replaces 102741-

Part#: 14058411 Qty: 2

66126476242
WASHER -For F355 not as spare part- -Replaced by 10523424-

Part#: 12647624 Qty: 2

66105234242
WASHER -Replaces 12647624-

Part#: 10523424 Qty: 2

67135434242
STUD
$0.56

Part#: 13543424 Qty: 2$0.56
