Ferrari Philadelphia Parts

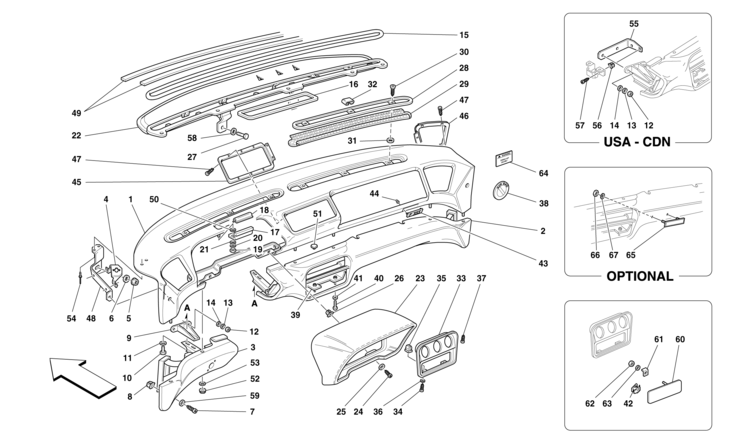

Table 132

Table 132 - DASHBOARD

Ref.Part#Qty.DescriptionPrice
1644777..1
UPHOLSTERED DASHBOARD UPPER FRAMEWORK -Not for GD- -Valid till stock exhaustion-

Part#: 644777.. Qty: 1

1652368..1
UPHOLSTERED DASHBOARD UPPER FRAMEWORK -Not for GD- -Valid after stock exhaustion of 644777..-

Part#: 652368.. Qty: 1

1648847..1
UPHOLSTERED DASHBOARD UPPER FRAMEWORK -Valid for GD-

Part#: 648847.. Qty: 1

1641183..1
UPPER LINING -Not for GD-

Part#: 641183.. Qty: 1

1644439..1
UPPER LINING -Valid for GD-

Part#: 644439.. Qty: 1

2644782..1
COVERED R.H. LOWER INSERT -Not for GD-

Part#: 644782.. Qty: 1

2644456..1
COVERED R.H. LOWER INSERT -Valid for GD-

Part#: 644456.. Qty: 1

2641177..1
R.H. LOWER UPHOLSTERY -Not for GD-

Part#: 641177.. Qty: 1

2644459..1
R.H. LOWER UPHOLSTERY -Valid for GD-

Part#: 644459.. Qty: 1

3644792..1
COVERED L.H. LOWER INSERT -Not for GD-

Part#: 644792.. Qty: 1

3644448..1
COVERED L.H. LOWER INSERT -Valid for GD-

Part#: 644448.. Qty: 1

3641178..1
L.H. LOWER UPHOLSTERY -Not for GD-

Part#: 641178.. Qty: 1

3644451..1
L.H. LOWER UPHOLSTERY -Valid for GD-

Part#: 644451.. Qty: 1

4621758001
L.H. TWEETER FIXING BRACKET

Part#: 62175800 Qty: 1

4621757001
R.H. TWEETER FIXING BRACKET

Part#: 62175700 Qty: 1

5138321012
NUT
$0.55

Part#: 13832101 Qty: 2$0.55

6126406242
WASHER
$0.39

Part#: 12640624 Qty: 2$0.39

7157851012
SCREW

Part#: 15785101 Qty: 2

8141159802
BLOCK
$0.11

Part#: 14115980 Qty: 2$0.11

9642631003
COMPLETE BRACKET

Part#: 64263100 Qty: 3

10109020246
SCREW
$0.90

Part#: 10902024 Qty: 6$0.90

11126012746
WASHER
$1.00

Part#: 12601274 Qty: 6$1.00

12158962146
NUT
$0.75

Part#: 15896214 Qty: 6$0.75

13126012746
WASHER
$1.00

Part#: 12601274 Qty: 6$1.00

14126437246
WASHER
$0.29

Part#: 12643724 Qty: 6$0.29

15622005001
AIR DUCTING GASKET

Part#: 62200500 Qty: 1

16621880001
AIR CONVEYOR GASKET

Part#: 62188000 Qty: 1

17621397001
INSTRUMENTS PANEL FIXING PLATE

Part#: 62139700 Qty: 1

18621398001
ANTI-VIBRATIONS

Part#: 62139800 Qty: 1

19158964702
NUT
$2.27

Part#: 15896470 Qty: 2$2.27

20126052742
WASHER

Part#: 12605274 Qty: 2

21144963242
WASHER
$2.92

Part#: 14496324 Qty: 2$2.92

22621858001
UNDER-DASHBOARD AIR DUCTING -Not for GD-

Part#: 62185800 Qty: 1

22621932001
UNDER-DASHBOARD AIR DUCTING -Valid for GD-

Part#: 62193200 Qty: 1

23641120..1
COVERED INSTRUMENTS PANEL -Not for GD-

Part#: 641120.. Qty: 1

23644464..1
COVERED INSTRUMENTS PANEL -Valid for GD-

Part#: 644464.. Qty: 1

23644324..1
LINING -Not for GD-

Part#: 644324.. Qty: 1

23644467..1
LINING -Valid for GD-

Part#: 644467.. Qty: 1

24156877752
SCREW

Part#: 15687775 Qty: 2

25105192782
WASHER
$0.33

Part#: 10519278 Qty: 2$0.33

26141158852
BLOCK

Part#: 14115885 Qty: 2

27109777242
SCREW
$0.39

Part#: 10977724 Qty: 2$0.39

28621868002
AIR OUTLET PLATE
$596.08

Part#: 62186800 Qty: 2$596.08

29628808002
AIR OUTLET GRID SHIELD

Part#: 62880800 Qty: 2

30632914006
SCREW

Part#: 63291400 Qty: 6

31636224006
WASHER

Part#: 63622400 Qty: 6

32628809006
SCREW-COVER PLATE

Part#: 62880900 Qty: 6

331709341
SIDE PANEL -Not for GD-

Part#: 170934 Qty: 1

331709351
SIDE PANEL -Valid for GD-

Part#: 170935 Qty: 1

34159086062
SCREW

Part#: 15908606 Qty: 2

35141155804
BLOCK

Part#: 14115580 Qty: 4

36126122072
WASHER

Part#: 12612207 Qty: 2

37156921784
SCREW

Part#: 15692178 Qty: 4

38651420001
AIRBAG/CHILDREN SEAT INCOMPATIBILITY PLATE -Not for USA and SA-

Part#: 65142000 Qty: 1

391734691
BRACKET FOR CAR RADIO CABLES -Not for GD-

Part#: 173469 Qty: 1

391739101
BRACKET FOR CAR RADIO CABLES -Valid for GD-

Part#: 173910 Qty: 1

40202862092
SCREW
$15.02

Part#: 20286209 Qty: 2$15.02

41126381772
WASHER

Part#: 12638177 Qty: 2

421416991
CLIP -Not for stereo equipped cars-
$0.95

Part#: 141699 Qty: 1$0.95

43644937001
F 355 MARK -Not for 355 F1-

Part#: 64493700 Qty: 1

43655127001
355 F1 MARK -Valid for 355 F1-

Part#: 65512700 Qty: 1

44603245062
CLIP
$2.32

Part#: 60324506 Qty: 2$2.32

45641136001
AIR OUTLET CENTRAL PLATE -Not for GD- -Not for stereo equipped cars-

Part#: 64113600 Qty: 1

45641137001
AIR OUTLET CENTRAL PLATE -Not for GD- -Valid for stereo equipped cars-

Part#: 64113700 Qty: 1

45645107001
AIR OUTLET CENTRAL PLATE -Valid for GD- -Not for stereo equipped cars-

Part#: 64510700 Qty: 1

45645108001
AIR OUTLET CENTRAL PLATE -Valid for GD- -Valid for stereo equipped cars-

Part#: 64510800 Qty: 1

46641133001
AIR OUTLET R.H. LATERAL PLATE -Not for stereo equipped cars-

Part#: 64113300 Qty: 1

46641134001
AIR OUTLET R.H. LATERAL PLATE -Valid for stereo equipped cars-

Part#: 64113400 Qty: 1

46645105001
AIR OUTLET L.H. LATERAL PLATE -Not for stereo equipped cars-

Part#: 64510500 Qty: 1

46641135001
AIR OUTLET L.H. LATERAL PLATE -Valid for stereo equipped cars-

Part#: 64113500 Qty: 1

476277190014
SCREW

Part#: 62771900 Qty: 14

48641139001
DASHBOARD L.H. UPPER LATERAL FIXING BRACKET

Part#: 64113900 Qty: 1

48641138001
DASHBOARD R.H. UPPER LATERAL FIXING BRACKET

Part#: 64113800 Qty: 1

49633124001
BI-ADHESIVE TAPE

Part#: 63312400 Qty: 1

50126406244
WASHER -Possible fitting-
$0.39

Part#: 12640624 Qty: 4$0.39

51146246871
PLUG

Part#: 14624687 Qty: 1

52138318016
NUT

Part#: 13831801 Qty: 6

53126381246
WASHER
$0.29

Part#: 12638124 Qty: 6$0.29

546060970010
RIVET

Part#: 60609700 Qty: 10

551691501
BRACKET -Valid for USA-
$2.76

Part#: 169150 Qty: 1$2.76

56142025802
BLOCK -Valid for USA-

Part#: 14202580 Qty: 2

57156881702
SCREW -Valid for USA-

Part#: 15688170 Qty: 2

58125992742
WASHER

Part#: 12599274 Qty: 2

59126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

60644267001
CAR STEREO PLATE -Not for stereo equipped cars-

Part#: 64426700 Qty: 1

61629934001
CLIP -Not for stereo equipped cars-

Part#: 62993400 Qty: 1

62161017111
NUT -Not for stereo equipped cars-

Part#: 16101711 Qty: 1

63106151741
WASHER -Not for stereo equipped cars-

Part#: 10615174 Qty: 1

64654240001
AIR-BAG PRESENCE PLATE -Valid for USA and SA-
$8.50

Part#: 65424000 Qty: 1$8.50

65656430001
CUSTOMER PLATE -Optional-

Part#: 65643000 Qty: 1

66161017112
NUT -Optional-

Part#: 16101711 Qty: 2

67201591092
WASHER -Optional-

Part#: 20159109 Qty: 2
