Ferrari Philadelphia Parts

Table 49

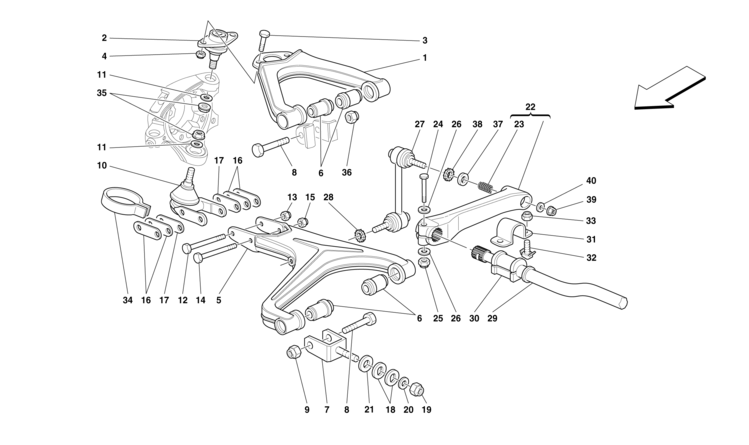

Table 49 - FRONT SUSPENSION - WISHBONES

Ref.Part#Qty.DescriptionPrice
11593722
UPPER LEVER

Part#: 159372 Qty: 2

21327762
UPPER BALL JOINT
$216.08

Part#: 132776 Qty: 2$216.08

3160437244
SCREW
$1.29

Part#: 16043724 Qty: 4$1.29

41040304
NUT
$0.48

Part#: 104030 Qty: 4$0.48

51593052
LOWER LEVER

Part#: 159305 Qty: 2

61630388
FLAMBLOCK
$321.00

Part#: 163038 Qty: 8$321.00

71593984
LOWER FORK

Part#: 159398 Qty: 4

81064198
SCREW
$38.28

Part#: 106419 Qty: 8$38.28

91028254
NUT
$1.50

Part#: 102825 Qty: 4$1.50

101339442
LOWER BALL JOINT
$240.82

Part#: 133944 Qty: 2$240.82

111550024
WASHER

Part#: 155002 Qty: 4

12159716242
SCREW

Part#: 15971624 Qty: 2

131027422
NUT
$3.25

Part#: 102742 Qty: 2$3.25

141326672
SCREW

Part#: 132667 Qty: 2

151028252
NUT
$1.50

Part#: 102825 Qty: 2$1.50

1610102210
SETTING PLATE
$1.33

Part#: 101022 Qty: 10$1.33

171010222
SETTING PLATE mm. 1,5 -Possible fitting-
$1.33

Part#: 101022 Qty: 2$1.33

171644842
SETTING PLATE mm. 1,0 -Possible fitting-

Part#: 164484 Qty: 2

171150732
SETTING PLATE mm. 1,2 -Possible fitting-

Part#: 115073 Qty: 2

171644852
SETTING PLATE mm. 2,0 -Possible fitting-

Part#: 164485 Qty: 2

181070258
SPACER WASHER mm. 1,0

Part#: 107025 Qty: 8

181074180
SPACER WASHER mm. 1,5

Part#: 107418

181074190
SPACER WASHER mm. 2,0

Part#: 107419

181074200
SPACER WASHER mm. 2,5

Part#: 107420

181074210
SPACER WASHER mm. 3,0

Part#: 107421

181074220
SPACER WASHER mm. 3,25

Part#: 107422

191502384
NUT
$1.15

Part#: 150238 Qty: 4$1.15

201526174
WASHER

Part#: 152617 Qty: 4

211594024
WASHER

Part#: 159402 Qty: 4

221618132
ARM FOR ANTI-ROLL BAR -Valid till car Ass. Nr. 27956-

Part#: 161813 Qty: 2

221700752
ARM FOR ANTI-ROLL BAR -Valid from car Ass. Nr. 27957-

Part#: 170075 Qty: 2

23135261702
THREADED INSERT
$5.92

Part#: 13526170 Qty: 2$5.92

24160442242
SCREW

Part#: 16044224 Qty: 2

251011392
NUT
$1.90

Part#: 101139 Qty: 2$1.90

26126044744
WASHER
$0.06

Part#: 12604474 Qty: 4$0.06

271611091
R.H. BALL TIE ROD
$191.58

Part#: 161109 Qty: 1$191.58

271611101
L.H. BALL TIE ROD
$166.47

Part#: 161110 Qty: 1$166.47

281600922
WASHER

Part#: 160092 Qty: 2

291593531
FRONT ANTI-ROLL BAR

Part#: 159353 Qty: 1

301183712
BAR BUFFER
$52.01

Part#: 118371 Qty: 2$52.01

311338022
PAD FASTENING PLATE
$152.82

Part#: 133802 Qty: 2$152.82

32146724914
SCREW
$3.82

Part#: 14672491 Qty: 4$3.82

331040304
NUT
$0.48

Part#: 104030 Qty: 4$0.48

341600192
BALL JOINT PROTECTION
$6.00

Part#: 160019 Qty: 2$6.00

351498074
NUT
$2.50

Part#: 149807 Qty: 4$2.50

361480204
NUT
$4.01

Part#: 148020 Qty: 4$4.01

371029012
SPACER WASHER

Part#: 102901 Qty: 2

381600922
WASHER

Part#: 160092 Qty: 2

391564622
NUT

Part#: 156462 Qty: 2

40126424242
WASHER

Part#: 12642424 Qty: 2
