Ferrari Philadelphia Parts

Table 53

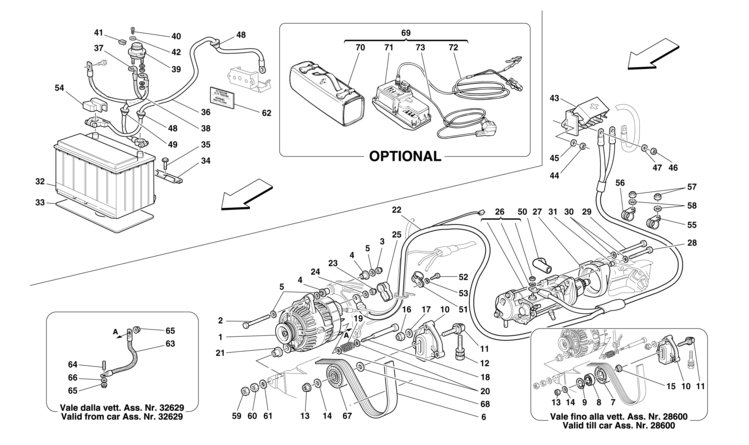

Table 53 - CURRENT GENERATOR - STARTING MOTOR - BATTERY

Ref.Part#Qty.DescriptionPrice
11580471
140 A. ALTERNATOR
$1126.98

Part#: 158047 Qty: 1$1126.98

2159713211
SCREW
$2.50

Part#: 15971321 Qty: 1$2.50

31027421
NUT
$3.25

Part#: 102742 Qty: 1$3.25

41638342
ESTENDBLOCK

Part#: 163834 Qty: 2

5135504213
WASHER

Part#: 13550421 Qty: 3

61998331
GENERATOR CONTROL BELT -Valid till car Ass. Nr. 31227-
$42.95

Part#: 199833 Qty: 1$42.95

61998371
GENERATOR CONTROL BELT -Valid from car Ass. Nr. 31228-
$39.75

Part#: 199837 Qty: 1$39.75

71486321
BELT TIGHTENING PULLEY -Valid till car Ass. Nr. 28600-
$625.27

Part#: 148632 Qty: 1$625.27

81233501
BEARING -Valid till car Ass. Nr. 28600-
$48.52

Part#: 123350 Qty: 1$48.52

9110600761
SEEGER RING -Valid till car Ass. Nr. 28600-
$4.80

Part#: 11060076 Qty: 1$4.80

101536871
BELT TIGHTENING SUPPORT BRACKET -Valid till car Ass. Nr. 28600-

Part#: 153687 Qty: 1

101725261
BELT TIGHTENING SUPPORT BRACKET -Valid from car Ass. Nr. 28601-

Part#: 172526 Qty: 1

111486301
THREADED PIN -Valid till car Ass. Nr. 28600-

Part#: 148630 Qty: 1

111725271
THREADED PIN -Valid from car Ass. Nr. 28601-
$223.35

Part#: 172527 Qty: 1$223.35

121572891
SCREW
$22.90

Part#: 157289 Qty: 1$22.90

131480201
NUT -Valid till car Ass. Nr. 28600-
$4.01

Part#: 148020 Qty: 1$4.01

131332161
NUT -Valid from car Ass. Nr. 28601-
$10.42

Part#: 133216 Qty: 1$10.42

14107307211
WASHER -Valid till car Ass. Nr. 28600-
$0.35

Part#: 10730721 Qty: 1$0.35

141026951
WASHER -Valid from car Ass. Nr. 28601-
$3.65

Part#: 102695 Qty: 1$3.65

151581801
SPACER -Valid till car Ass. Nr. 28600-
$8.05

Part#: 158180 Qty: 1$8.05

161011393
NUT
$1.90

Part#: 101139 Qty: 3$1.90

17126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

181665631
SCREW

Part#: 166563 Qty: 1

191117431
SPRING
$41.43

Part#: 111743 Qty: 1$41.43

201644692
WASHER

Part#: 164469 Qty: 2

211644671
BUSHING

Part#: 164467 Qty: 1

221575061
ALTERNATOR-STARTER MOTOR- TERMINAL BOX CONNECTING CABLE

Part#: 157506 Qty: 1

23161023141
NUT
$1.29

Part#: 16102314 Qty: 1$1.29

24126013741
WASHER
$0.49

Part#: 12601374 Qty: 1$0.49

251548031
BOOT
$16.75

Part#: 154803 Qty: 1$16.75

261551661
STARTER MOTOR
$891.88

Part#: 155166 Qty: 1$891.88

271558731
STARTER MOTOR SUPPORT

Part#: 155873 Qty: 1

28160445212
SCREW

Part#: 16044521 Qty: 2

29160450241
SCREW
$2.53

Part#: 16045024 Qty: 1$2.53

30126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

311000412
DOWEL

Part#: 100041 Qty: 2

32619339001
BATTERY 12V-70AH-420A

Part#: 61933900 Qty: 1

33636536001
ANTI-VIBRATIONS PAD

Part#: 63653600 Qty: 1

34625734001
BATTERY FIXING BRACKET
$100.64

Part#: 62573400 Qty: 1$100.64

35138374111
SCREW
$1.50

Part#: 13837411 Qty: 1$1.50

361575021
BATTERY TO FRONT TERMINAL BOX CONNECTING CABLE -Not for GD-
$86.24

Part#: 157502 Qty: 1$86.24

361608941
BATTERY TO FRONT TERMINAL BOX CONNECTING CABLE -Valid for GD-

Part#: 160894 Qty: 1

371575051
BATTERY-CUT OUT SWITCH CONNECTING PLAIT

Part#: 157505 Qty: 1

381531281
CUT OUT SWITCH-MASS CONNECTING PLAIT

Part#: 153128 Qty: 1

391396071
CUT-OUT SWITCH

Part#: 139607 Qty: 1

40156882752
SCREW
$0.14

Part#: 15688275 Qty: 2$0.14

41610678002
BRACKET

Part#: 61067800 Qty: 2

42126378782
WASHER

Part#: 12637878 Qty: 2

431533571
TERMINAL BOX

Part#: 153357 Qty: 1

44627903002
NUT
$0.24

Part#: 62790300 Qty: 2$0.24

45105192242
WASHER

Part#: 10519224 Qty: 2

461011393
NUT
$1.90

Part#: 101139 Qty: 3$1.90

47126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

481490432
CABLE BUSHING

Part#: 149043 Qty: 2

491490431
CABLE BUSHING

Part#: 149043 Qty: 1

501508151
PROTECTION BOOT

Part#: 150815 Qty: 1

511266721
BRACKET WITH SHEATH

Part#: 126672 Qty: 1

52109020241
SCREW
$0.90

Part#: 10902024 Qty: 1$0.90

53126042741
WASHER
$0.30

Part#: 12604274 Qty: 1$0.30

541447271
PROTECTION BOOT

Part#: 144727 Qty: 1

55104417901
BRACKET WITH SHEATH
$4.46

Part#: 10441790 Qty: 1$4.46

56104416901
BRACKET WITH SHEATH
$1.48

Part#: 10441690 Qty: 1$1.48

571029482
NUT
$2.29

Part#: 102948 Qty: 2$2.29

58105194242
WASHER
$0.39

Part#: 10519424 Qty: 2$0.39

591777641
NUT
$0.24

Part#: 177764 Qty: 1$0.24

60107910211
NUT

Part#: 10791021 Qty: 1

611266481
WASHER
$1.75

Part#: 126648 Qty: 1$1.75

621134041
WARNING HIGH VOLTAGE PLATE
$5.25

Part#: 113404 Qty: 1$5.25

631809041
GROUND CABLE -Valid from car Ass. Nr. 32629-

Part#: 180904 Qty: 1

64110010241
STUD -Valid from car Ass. Nr. 32629-
$2.37

Part#: 11001024 Qty: 1$2.37

65140841112
NUT -Valid from car Ass. Nr. 32629-

Part#: 14084111 Qty: 2

66144963242
WASHER -Valid from car Ass. Nr. 32629-
$2.92

Part#: 14496324 Qty: 2$2.92

671725371
COMPLETE BELT TIGHTENING PULLEY -Valid from car Ass. Nr. 28601-
$151.12

Part#: 172537 Qty: 1$151.12

681745081
WASHER -Valid from car Ass. Nr. 28601-

Part#: 174508 Qty: 1

69700009041
BATTERY CHARGER KIT -Not for USA, CDN, GB, Hong Kong and AUS- -Optional-

Part#: 70000904 Qty: 1

69700009051
BATTERY CHARGER KIT -Valid for USA and CDN- -Optional-

Part#: 70000905 Qty: 1

69700009091
BATTERY CHARGER KIT -Valid for GB and Hong Kong- -Optional-

Part#: 70000909 Qty: 1

69700009061
BATTERY CHARGER KIT -Valid for AUS- -Optional-

Part#: 70000906 Qty: 1

70656992001
BATTERY BAG CASE -Optional-

Part#: 65699200 Qty: 1

711777911
BATTERY CHARGER -230V- -Not for USA and CDN- -Optional-

Part#: 177791 Qty: 1

711777921
BATTERY CHARGER -110V- -Not for USA and CDN- -Optional-

Part#: 177792 Qty: 1

721777931
CABLE WITH TERMINAL -Optional-

Part#: 177793 Qty: 1

731777941
POWER SUPPLY CABLE -Not for USA, CDN, GB, Hong Kong and AUS- -Optional-

Part#: 177794 Qty: 1

731777951
POWER SUPPLY CABLE -Valid for USA and CDN- -Optional-

Part#: 177795 Qty: 1

731782941
POWER SUPPLY CABLE -Valid for GB and Hong Kong- -Optional-

Part#: 178294 Qty: 1

731777961
POWER SUPPLY CABLE -Valid for AUS- -Optional-

Part#: 177796 Qty: 1
