Table 20

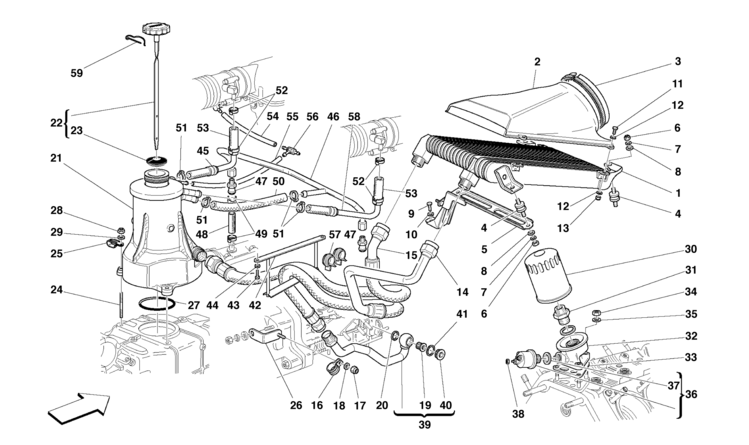

Table 20 - LUBRICATION SYSTEM AND BLOW-BY SYSTEM

Ref.Part#Qty.DescriptionPrice
11854121
OIL RADIATOR
$4325.46

Part#: 185412 Qty: 1$4325.46

21810011
AIR INLET CONVEYOR

Part#: 181001 Qty: 1

31805551
GASKET

Part#: 180555 Qty: 1

41029474
PAD
$20.91

Part#: 102947 Qty: 4$20.91

51757241
RADIATOR SUPPORTING BRACKET

Part#: 175724 Qty: 1

6158962148
NUT
$0.75

Part#: 15896214 Qty: 8$0.75

71274948
WASHER
$0.65

Part#: 127494 Qty: 8$0.65

8126444248
WASHER
$0.50

Part#: 12644424 Qty: 8$0.50

9109023242
SCREW
$0.50

Part#: 10902324 Qty: 2$0.50

10144964242
WASHER

Part#: 14496424 Qty: 2

11109778243
SCREW

Part#: 10977824 Qty: 3

12126378246
WASHER
$0.50

Part#: 12637824 Qty: 6$0.50

131136473
NUT
$0.21

Part#: 113647 Qty: 3$0.21

142016551
HOSE FROM ENGINE HOSE TO RADIATOR

Part#: 201655 Qty: 1

152016561
HOSE FROM RADIATOR TO DISAREATOR

Part#: 201656 Qty: 1

16104420901
BRACKET WITH SHEATH

Part#: 10442090 Qty: 1

171340411
NUT
$1.00

Part#: 134041 Qty: 1$1.00

181274941
WASHER
$0.65

Part#: 127494 Qty: 1$0.65

191223191
UNION

Part#: 122319 Qty: 1

201444871
GASKET

Part#: 144487 Qty: 1

212016251
COMPLETE OIL DISAREATOR -Till car Ass. Nr. 56313 to assemble with tank plug 202249 ref. 22 with hole and no screwable split pin 209265 ref. 59-

Part#: 201625 Qty: 1

222022491
TANK PLUG

Part#: 202249 Qty: 1

231805851
GASKET
$121.83

Part#: 180585 Qty: 1$121.83

24135171243
STUD

Part#: 13517124 Qty: 3

25104506901
BRACKET WITH SHEATH
$1.70

Part#: 10450690 Qty: 1$1.70

261783141
BRACKET

Part#: 178314 Qty: 1

271763881
O.R. GASKET
$4.50

Part#: 176388 Qty: 1$4.50

281011393
NUT
$1.90

Part#: 101139 Qty: 3$1.90

29126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

301976541
OIL FILTER CARTRIDGE -Valid till stock exhaustion-
$54.54

Part#: 197654 Qty: 1$54.54

301976541
OIL FILTER CARTRIDGE -Valid after stock exhaustion of 191462-
$54.54

Part#: 197654 Qty: 1$54.54

311739291
THREADED UNION

Part#: 173929 Qty: 1

321736331
OIL FILTER BASE-PLATE

Part#: 173633 Qty: 1

331880521
OIL FILTER BASE GASKET
$12.90

Part#: 188052 Qty: 1$12.90

341011393
NUT
$1.90

Part#: 101139 Qty: 3$1.90

35126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

361359401
OIL PRESSURE TRANSMITTER
$221.18

Part#: 135940 Qty: 1$221.18

37102599601
GASKET
$1.00

Part#: 10259960 Qty: 1$1.00

38627903002
NUT
$0.24

Part#: 62790300 Qty: 2$0.24

392016541
HOSE FROM ENGINE TO RADIATOR HOSE

Part#: 201654 Qty: 1

401223181
THREADED PLUG

Part#: 122318 Qty: 1

411830441
GASKET

Part#: 183044 Qty: 1

421836551
OIL HOSE RETAINING BRACKET

Part#: 183655 Qty: 1

43109021242
SCREW
$0.65

Part#: 10902124 Qty: 2$0.65

44126012742
WASHER
$1.00

Part#: 12601274 Qty: 2$1.00

452021941
R.H. BUTTERFLY CONNECTION PIPE

Part#: 202194 Qty: 1

462021601
HEADS CONNECTION VENT PIPE -Not as spare part- -Replaced by 201653-

Part#: 202160 Qty: 1

462016531
HEADS CONNECTION VENT PIPE

Part#: 201653 Qty: 1

471704482
VALVE -For cars not USA and CDN from Ass. Nr. 57034 Q.ty 1-

Part#: 170448 Qty: 2

472158201
VALVE -With hole

Part#: 215820 Qty: 1

481757462
RUBBER HOSE
$17.56

Part#: 175746 Qty: 2$17.56

491780534
CLAMP
$4.25

Part#: 178053 Qty: 4$4.25

502021821
RUBBER HOSE

Part#: 202182 Qty: 1

511780534
CLAMP
$4.25

Part#: 178053 Qty: 4$4.25

521780524
CLAMP
$4.25

Part#: 178052 Qty: 4$4.25

532021832
RUBBER HOSE

Part#: 202183 Qty: 2

541263422
RUBBER HOSE
$10.15

Part#: 126342 Qty: 2$10.15

551949101
RUBBER HOSE

Part#: 194910 Qty: 1

561618161
3-WAY UNION
$2.90

Part#: 161816 Qty: 1$2.90

571600132
FLEXIBLE CLIP
$0.87

Part#: 160013 Qty: 2$0.87

582021961
L.H. BUTTERFLY CONNECTION PIPE

Part#: 202196 Qty: 1

592092651
NO SCREWABLE SPLIT PIN -Valid form car Ass. Nr. 56314-
$2.00

Part#: 209265 Qty: 1$2.00
