Ferrari Philadelphia Parts

Table 44

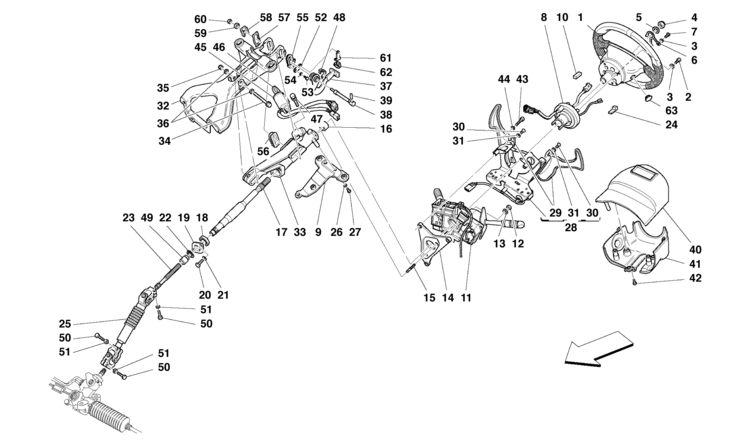

Table 44 - STEERING COLUMN

Ref.Part#Qty.DescriptionPrice
1676058..1
STEERING WHEEL -Without air bag module- -Bicolor-

Part#: 676058.. Qty: 1

12001071
STEERING WHEEL -Without air bag module- -Single colour-
$5609.44

Part#: 200107 Qty: 1$5609.44

2132719143
SCREW

Part#: 13271914 Qty: 3

3106152745
WASHER
$0.15

Part#: 10615274 Qty: 5$0.15

41016481
NUT
$4.55

Part#: 101648 Qty: 1$4.55

5107309211
WASHER
$2.75

Part#: 10730921 Qty: 1$2.75

61576391
SPRING

Part#: 157639 Qty: 1

7110211112
SCREW

Part#: 11021111 Qty: 2

81694711
SPIRAL CONTACT

Part#: 169471 Qty: 1

9651642001
SUPPORTING BRACKET

Part#: 65164200 Qty: 1

101638161
RESISTOR FOR SPIRAL CONTACT

Part#: 163816 Qty: 1

111789931
UNHOOK DEVIATION ASSEMBLY -For normal head light-

Part#: 178993 Qty: 1

111775851
UNHOOK DEVIATION ASSEMBLY -For gas lamps head light-

Part#: 177585 Qty: 1

12158964702
NUT
$2.27

Part#: 15896470 Qty: 2$2.27

13126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

141763601
BRACKET

Part#: 176360 Qty: 1

15110014242
STUD

Part#: 11001424 Qty: 2

161715391
ROLLER BEARING

Part#: 171539 Qty: 1

171839941
COLUMN UPPER SHAFT

Part#: 183994 Qty: 1

181715401
BALL BEARING

Part#: 171540 Qty: 1

191776451
PLATE

Part#: 177645 Qty: 1

20109022242
SCREW
$0.95

Part#: 10902224 Qty: 2$0.95

21111818742
WASHER

Part#: 11181874 Qty: 2

22110673761
SEEGER RING
$1.00

Part#: 11067376 Qty: 1$1.00

231839931
COLUMN LOWER SHAFT

Part#: 183993 Qty: 1

241353551
CONNECTOR

Part#: 135355 Qty: 1

251715281
STEERING CARDANIC TRASMISSION
$3098.35

Part#: 171528 Qty: 1$3098.35

26126378783
WASHER

Part#: 12637878 Qty: 3

27132742773
SCREW
$0.50

Part#: 13274277 Qty: 3$0.50

281963741
F1 GEARBOX CONTROL LEVERS ASSEMBLY

Part#: 196374 Qty: 1

292018951
COUPLE LEVERS

Part#: 201895 Qty: 1

30133089774
SCREW

Part#: 13308977 Qty: 4

31126066734
WASHER
$2.53

Part#: 12606673 Qty: 4$2.53

321715051
STEERING COLUMN SUPPORT BRACKET -Not for GD-

Part#: 171505 Qty: 1

321715461
STEERING COLUMN SUPPORT BRACKET -Valid for GD-

Part#: 171546 Qty: 1

331715161
COLUMN SUPPORT

Part#: 171516 Qty: 1

341806321
SCREW

Part#: 180632 Qty: 1

351040301
NUT
$0.48

Part#: 104030 Qty: 1$0.48

36126252242
WASHER
$0.25

Part#: 12625224 Qty: 2$0.25

37659933..1
COVERED LEVER

Part#: 659933.. Qty: 1

381715031
PIN FOR LEVER

Part#: 171503 Qty: 1

39103366301
PIN

Part#: 10336630 Qty: 1

40655832001
UPPER COVER

Part#: 65583200 Qty: 1

41653106001
LOWER COVER

Part#: 65310600 Qty: 1

42159605072
SCREW
$0.63

Part#: 15960507 Qty: 2$0.63

43132746113
SCREW

Part#: 13274611 Qty: 3

44126011743
WASHER
$0.26

Part#: 12601174 Qty: 3$0.26

451989081
LOCKS SET COMPLETED WITH STEERING LOCK AND KEY

Part#: 198908 Qty: 1

462022040
BLANK KEY
$270.28

Part#: 202204$270.28

471725631
ANTITHEFT FIXING SCREW
$2.20

Part#: 172563 Qty: 1$2.20

481715311
PIN RETAINING SPRING

Part#: 171531 Qty: 1

491839951
RING NUT

Part#: 183995 Qty: 1

501922293
SCREW

Part#: 192229 Qty: 3

511922303
WASHER

Part#: 192230 Qty: 3

521715231
PLATE

Part#: 171523 Qty: 1

53109777242
SCREW
$0.39

Part#: 10977724 Qty: 2$0.39

54111815742
WASHER

Part#: 11181574 Qty: 2

551715441
LEVER SIDE SLIDE

Part#: 171544 Qty: 1

561715011
FIXED SLIDE

Part#: 171501 Qty: 1

571715021
SPRING FOR SLIDE

Part#: 171502 Qty: 1

581715291
MOBILE SLIDE

Part#: 171529 Qty: 1

591715421
NUT

Part#: 171542 Qty: 1

601479851
NUT
$0.50

Part#: 147985 Qty: 1$0.50

611779771
SMALL PLATE

Part#: 177977 Qty: 1

621784301
FIXING CLIP
$1.00

Part#: 178430 Qty: 1$1.00

631854862
PLUG
$4.52

Part#: 185486 Qty: 2$4.52
