Ferrari Philadelphia Parts

Table 2

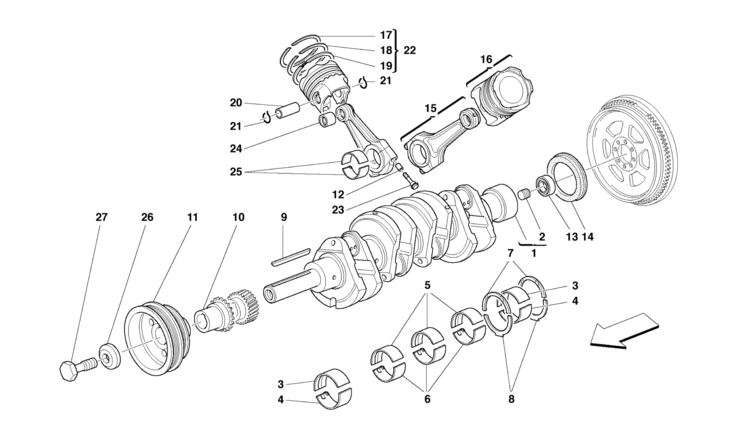

Table 2 - DRIVING SHAFT - CONNECTING RODS AND PISTONS

Ref.Part#Qty.DescriptionPrice
1806941
HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE-

Part#: 180694 Qty: 1

1806951
HALF-BEARINGS COMPLETE SERIES -1st OVERSIZE mm. 0,254-

Part#: 180695 Qty: 1

1806961
HALF-BEARINGS COMPLETE SERIES -2nd OVERSIZE mm. 0,508-

Part#: 180696 Qty: 1

11784811
CRANKSHAFT

Part#: 178481 Qty: 1

21763961
THREADED PLUG
$8.85

Part#: 176396 Qty: 1$8.85

31735582
FRONT AND REAR UPPER HALF BEARING -Not as spare part- -With the half-bearings complete series-

Part#: 173558 Qty: 2

31735590
FRONT AND REAR UPPER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254- -Not as spare part- -With the half-bearings complete series-

Part#: 173559

31735600
FRONT AND REAR UPPER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508- -Not as spare part- -With the half-bearings complete series-

Part#: 173560

41735542
FRONT AND REAR LOWER HALF BEARING -Not as spare part- -With the half-bearings complete series-
$38.53

Part#: 173554 Qty: 2$38.53

41735550
FRONT AND REAR LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254- -Not as spare part- -With the half-bearings complete series-

Part#: 173555

41735560
FRONT AND REAR LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508- -Not as spare part- -With the half-bearings complete series-

Part#: 173556

51735623
UPPER INTERMEDIATE HALF BEARING -Not as spare part- -With the half-bearings complete series-
$31.39

Part#: 173562 Qty: 3$31.39

51735630
UPPER INTERMEDIATE HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254- -Not as spare part- -With the half-bearings complete series-

Part#: 173563

51735640
UPPER INTEMEDIATE HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508- -Not as spare part- -With the half-bearings complete series-

Part#: 173564

61735663
INTERMEDIATE LOWER HALF BEARING -Not as spare part- -With the half-bearings complete series-
$33.83

Part#: 173566 Qty: 3$33.83

61735670
INTERMEDIATE LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254- -Not as spare part- -With the half-bearings complete series-

Part#: 173567

61735680
INTERMEDIATE LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508- -Not as spare part- -With the half-bearings complete series-

Part#: 173568

71641112
UPPER SHIM -Not as spare part- -With the half-bearings complete series-

Part#: 164111 Qty: 2

71641120
UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part- -With the half-bearings complete series-

Part#: 164112

71641130
UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part- -With the half-bearings complete series-

Part#: 164113

81641082
LOWER SHIM -Not as spare part- -With the half-bearings complete series-

Part#: 164108 Qty: 2

81641090
LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part- -With the half-bearings complete series-

Part#: 164109

81641100
LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part- -With the half-bearings complete series-

Part#: 164110

91512891
KEY

Part#: 151289 Qty: 1

101766431
OIL PUMP CONTROL GEAR

Part#: 176643 Qty: 1

111787381
DRIVING SHAFT PULLEY

Part#: 178738 Qty: 1

1217739016
BUSHING

Part#: 177390 Qty: 16

131038771
BEARING
$29.99

Part#: 103877 Qty: 1$29.99

141639891
SEAL RING -Not as spare part- -Replaced by 200323-

Part#: 163989 Qty: 1

142003231
SEAL RING
$71.89

Part#: 200323 Qty: 1$71.89

152126528
COMPLETE CONNECTING ROD AND CAP -Not as spare part- -Replaced by 190113-

Part#: 212652 Qty: 8

151901138
COMPLETE CONNECTING ROD AND CAP -Not as spare part- -Replaced by 196976-

Part#: 190113 Qty: 8

152126528
COMPLETE CONNECTING ROD AND CAP -Not as spare part- -Replaced by 212652-

Part#: 212652 Qty: 8

152126528
COMPLETE CONNECTING ROD AND CAP

Part#: 212652 Qty: 8

161795108
PISTON WITH RINGS

Part#: 179510 Qty: 8

171608138
AC SEAL RING (1st groove) -Not as spare part- -With the pistons rings set-

Part#: 160813 Qty: 8

181529918
AC SEAL RING (2nd groove) -Not as spare part- -With the pistons rings set-

Part#: 152991 Qty: 8

191327738
ROF OIL SCRAPING RING (3rd groove) -Not as spare part- -With the pistons rings set-

Part#: 132773 Qty: 8

201547178
PIN
$46.84

Part#: 154717 Qty: 8$46.84

2116690116
STOP RING
$10.40

Part#: 166901 Qty: 16$10.40

221640268
PISTONS RINGS SET
$336.92

Part#: 164026 Qty: 8$336.92

2317715916
CONNECTING ROD TIGHTENING SCREW
$40.07

Part#: 177159 Qty: 16$40.07

241747018
BUSHING

Part#: 174701 Qty: 8

2517355016
CONNECTING ROD HALF BEARING -Not as spare part- -Replaced by 193622-

Part#: 173550 Qty: 16

2519362216
CONNECTING ROD HALF BEARING

Part#: 193622 Qty: 16

2517355116
CONNECTING ROD HALF BEARING 1st OVERSIZE mm. 0,254

Part#: 173551 Qty: 16

2517355216
CONNECTING ROD HALF BEARING 2nd OVERSIZE mm. 0,508

Part#: 173552 Qty: 16

261387921
WASHER

Part#: 138792 Qty: 1

271765831
SCREW

Part#: 176583 Qty: 1
