Table 26

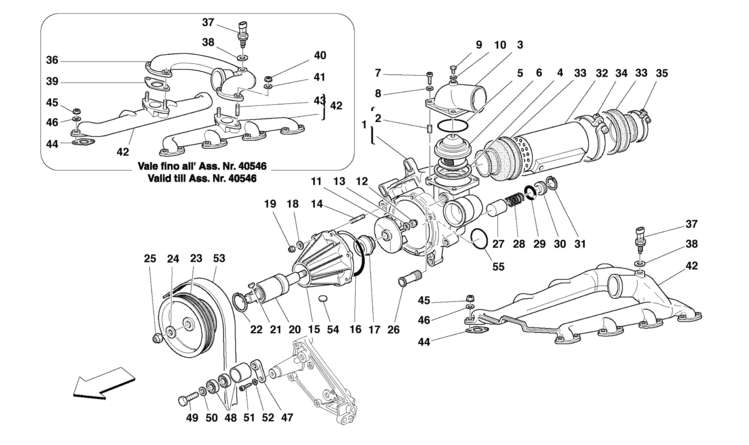

Table 26 - WATER PUMP AND OIL/WATER HEAT EXCHANGER

Ref.Part#Qty.DescriptionPrice
11760441
WATER PUMP BODY

Part#: 176044 Qty: 1

2135254704
THREADED INSERT
$2.50

Part#: 13525470 Qty: 4$2.50

31719261
THERMOSTATIC VALVE COVER

Part#: 171926 Qty: 1

41378731
GASKET
$7.55

Part#: 137873 Qty: 1$7.55

51492791
O.R. GASKET
$7.50

Part#: 149279 Qty: 1$7.50

61674731
THERMOSTAT -Not as spare part replaced by 183758-

Part#: 167473 Qty: 1

61837581
THERMOSTAT
$69.50

Part#: 183758 Qty: 1$69.50

7144331244
SCREW
$0.50

Part#: 14433124 Qty: 4$0.50

8126012744
WASHER
$1.00

Part#: 12601274 Qty: 4$1.00

91323491
UNION
$5.76

Part#: 132349 Qty: 1$5.76

10102977601
GASKET
$1.00

Part#: 10297760 Qty: 1$1.00

111760451
WATER PUMP IMPELLER
$173.90

Part#: 176045 Qty: 1$173.90

121004361
CAP NUT
$9.36

Part#: 100436 Qty: 1$9.36

13111940741
WASHER
$0.10

Part#: 11194074 Qty: 1$0.10

14135409246
STUD
$36.67

Part#: 13540924 Qty: 6$36.67

151761731
WATER PUMP COVER

Part#: 176173 Qty: 1

161378681
O.R. GASKET
$12.25

Part#: 137868 Qty: 1$12.25

171309321
FRONT SEAL RING

Part#: 130932 Qty: 1

18126012746
WASHER
$1.00

Part#: 12601274 Qty: 6$1.00

191027416
NUT
$0.75

Part#: 102741 Qty: 6$0.75

201437421
BEARING WITH SHAFT
$242.46

Part#: 143742 Qty: 1$242.46

21102023201
DISC KEY
$1.00

Part#: 10202320 Qty: 1$1.00

22110599761
SEEGER RING
$1.50

Part#: 11059976 Qty: 1$1.50

231772071
WATER PUMP CONTROL PULLEY

Part#: 177207 Qty: 1

24126468211
WASHER

Part#: 12646821 Qty: 1

251027421
NUT
$3.25

Part#: 102742 Qty: 1$3.25

261062271
UNION
$22.50

Part#: 106227 Qty: 1$22.50

271760461
BUSHING

Part#: 176046 Qty: 1

281760471
SPRING

Part#: 176047 Qty: 1

291472781
O.R. GASKET
$1.04

Part#: 147278 Qty: 1$1.04

301760481
SPRING PLUG

Part#: 176048 Qty: 1

31110583761
SEEGER RING

Part#: 11058376 Qty: 1

321808461
HEAT EXCHANGER -Valid till stock exhaustion-
$1727.31

Part#: 180846 Qty: 1$1727.31

321808461
HEAT EXCHANGER -Valid after stock exhaustion of 175913-
$1727.31

Part#: 180846 Qty: 1$1727.31

331871732
SLEEVE -Valid till stock exhaustion-
$469.27

Part#: 187173 Qty: 2$469.27

331871732
SLEEVE
$469.27

Part#: 187173 Qty: 2$469.27

341534302
CLAMP
$7.50

Part#: 153430 Qty: 2$7.50

351341092
SCREW COLLAR
$8.75

Part#: 134109 Qty: 2$8.75

361695261
WATER OUTLET MANIFOLD CONNECTION DUCT -Valid till Ass. Nr. 40546-

Part#: 169526 Qty: 1

371801371
WATER TEMPERATURE SENSOR
$38.94

Part#: 180137 Qty: 1$38.94

38102984601
GASKET
$1.00

Part#: 10298460 Qty: 1$1.00

391695642
GASKET -Valid till Ass. Nr. 40546-
$2.13

Part#: 169564 Qty: 2$2.13

401777784
NUT -Valid till Ass. Nr. 40546-
$2.00

Part#: 177778 Qty: 4$2.00

41126013744
WASHER -Valid till Ass. Nr. 40546-
$0.49

Part#: 12601374 Qty: 4$0.49

421697492
COMPLETE WATER OUTLET MANIFOLD -Valid till Ass. Nr. 40546-

Part#: 169749 Qty: 2

421797481
COMPLETE WATER OUTLET MANIFOLD -Valid from Ass. Nr. 40547-

Part#: 179748 Qty: 1

43135168244
STUD -Valid till Ass. Nr. 40546-
$1.25

Part#: 13516824 Qty: 4$1.25

441413328
GASKET
$2.29

Part#: 141332 Qty: 8$2.29

4513287716
NUT -Not as spare part- -Replaced by 194031-
$3.25

Part#: 132877 Qty: 16$3.25

4519403116
NUT
$1.00

Part#: 194031 Qty: 16$1.00

461260427416
WASHER
$0.30

Part#: 12604274 Qty: 16$0.30

471786661
SMALL PLATE -Valid till stock exhaustion-

Part#: 178666 Qty: 1

471802961
SMALL PLATE -Valid after stock exhaustion of 178666-

Part#: 180296 Qty: 1

481796981
BELT TIGHTENING BEARING
$256.18

Part#: 179698 Qty: 1$256.18

49159709211
SCREW
$2.00

Part#: 15970921 Qty: 1$2.00

50111905741
WASHER

Part#: 11190574 Qty: 1

51143028241
SCREW
$0.50

Part#: 14302824 Qty: 1$0.50

52111980741
WASHER
$0.39

Part#: 11198074 Qty: 1$0.39

531798131
WATER PUMP AND GENERATOR CONTROL BELT -Not as spare part- -Replaced by 194229-

Part#: 179813 Qty: 1

531942291
WATER PUMP AND GENERATOR CONTROL BELT -Valid till stock exhaustion-

Part#: 194229 Qty: 1

532014461
WATER PUMP AND GENERATOR CONTROL BELT -Valid after stock exhaustion of 194229-
$41.68

Part#: 201446 Qty: 1$41.68

54101588011
PLUG
$1.50

Part#: 10158801 Qty: 1$1.50

551010441
GASKET
$3.70

Part#: 101044 Qty: 1$3.70
