Ferrari Philadelphia Parts

Table 33

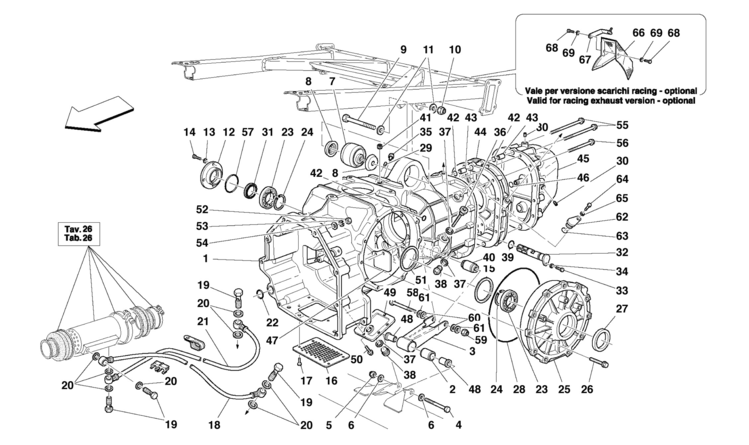

Table 33 - GEARBOX - COVERS

Ref.Part#Qty.DescriptionPrice
1862481
BOX TRANSMISSION -For cars from gearbox Nr. 459 to gearbox Nr. 1088 order also part. 181618 Q.1,184994 Q.1, 185014 Q.1,183981 Q.1,10902224 Q.4 and 11194377 Q.4-

Part#: 186248 Qty: 1

11833391
COMPLETE TRANSMISSION -Not for F1-

Part#: 183339 Qty: 1

11944321
COMPLETE TRANSMISSION -Valid for F1-

Part#: 194432 Qty: 1

21817551
PAD
$130.54

Part#: 181755 Qty: 1$130.54

31744581
SMALL LINK

Part#: 174458 Qty: 1

4155412341
SCREW

Part#: 15541234 Qty: 1

51028251
NUT
$1.50

Part#: 102825 Qty: 1$1.50

6144967242
WASHER
$0.19

Part#: 14496724 Qty: 2$0.19

71866981
RESILIENT BUSHING -Valid till Ass. Nr. 40522-
$360.90

Part#: 186698 Qty: 1$360.90

71866981
GEARBOX SUPPORT PAD -Valid from Ass. Nr. 40523-
$360.90

Part#: 186698 Qty: 1$360.90

81795592
RETAINING WASHER -Valid till Ass. Nr. 40522-
$33.52

Part#: 179559 Qty: 2$33.52

81881412
RETAINING WASHER -Valid from Ass. Nr. 40523-
$39.53

Part#: 188141 Qty: 2$39.53

9111171341
SCREW
$19.45

Part#: 11117134 Qty: 1$19.45

101060041
NUT
$6.00

Part#: 106004 Qty: 1$6.00

11144968242
WASHER
$0.17

Part#: 14496824 Qty: 2$0.17

121839811
R.H. FLANGE FOR SHAFT -Valid till gearbox Nr. 458 and from gearbox Nr. 1089-

Part#: 183981 Qty: 1

13111943774
WASHER -Valid till gearbox Nr. 458 and from gearbox Nr. 1089-

Part#: 11194377 Qty: 4

14109022244
SCREW -Valid till gearbox Nr. 458 and from gearbox Nr. 1089-
$0.95

Part#: 10902224 Qty: 4$0.95

151850261
RING -Thickness mm. 6,8-

Part#: 185026 Qty: 1

151850271
RING -Thickness mm. 6,4- -Possible fitting-

Part#: 185027 Qty: 1

151850281
RING -Thickness mm. 6,0- -Possible fitting-

Part#: 185028 Qty: 1

161717011
PROTECTION DRILLET PLATE

Part#: 171701 Qty: 1

171111894
SCREW
$5.88

Part#: 111189 Qty: 4$5.88

181736861
OIL DELIVERY TUBE

Part#: 173686 Qty: 1

191847274
UNION
$7.48

Part#: 184727 Qty: 4$7.48

201451928
GASKET

Part#: 145192 Qty: 8

211736871
OIL RETURN TUBE

Part#: 173687 Qty: 1

221232361
O.R. GASKET
$5.30

Part#: 123236 Qty: 1$5.30

231849952
BALL BEARING

Part#: 184995 Qty: 2

241849942
FLEXIBLE RING -Q.ty 1 from gearbox Nr. 458 to gearbox Nr. 1088-

Part#: 184994 Qty: 2

251711171
DIFFERENTIAL COVER

Part#: 171117 Qty: 1

261628732111
SCREW

Part#: 16287321 Qty: 11

271816171
L.H. OIL RING
$72.50

Part#: 181617 Qty: 1$72.50

28144687811
GASKET
$26.87

Part#: 14468781 Qty: 1$26.87

29143260501
THREADED PLUG
$2.67

Part#: 14326050 Qty: 1$2.67

301821062
THREADED PLUG

Part#: 182106 Qty: 2

311816181
R.H. OIL RING -Valid till gearbox Nr. 458 and from gearbox Nr. 1089-
$71.59

Part#: 181618 Qty: 1$71.59

311840061
R.H. OIL RING -Valid from gearbox Nr. 459 and till gearbox Nr. 1088-
$94.35

Part#: 184006 Qty: 1$94.35

321821001
GEAR BOX OIL FILTER
$140.00

Part#: 182100 Qty: 1$140.00

33109776241
SCREW

Part#: 10977624 Qty: 1

34111992771
WASHER

Part#: 11199277 Qty: 1

351821181
OIL VENT

Part#: 182118 Qty: 1

361821171
OIL LEVEL ROD
$89.35

Part#: 182117 Qty: 1$89.35

37102634603
GASKET
$1.00

Part#: 10263460 Qty: 3$1.00

381839622
PLUG
$32.96

Part#: 183962 Qty: 2$32.96

391821191
O.R. GASKET
$3.35

Part#: 182119 Qty: 1$3.35

401834901
PAD

Part#: 183490 Qty: 1

41143249111
PLUG

Part#: 14324911 Qty: 1

42144569814
GASKET
$1.00

Part#: 14456981 Qty: 4$1.00

431509574
CENTERING BUSHING

Part#: 150957 Qty: 4

441736111
PLATE

Part#: 173611 Qty: 1

451736121
REAR COVER

Part#: 173612 Qty: 1

461371922
GASKET
$0.75

Part#: 137192 Qty: 2$0.75

471839861
PLATE

Part#: 183986 Qty: 1

481834572
BUSHING
$6.50

Part#: 183457 Qty: 2$6.50

491710451
LOWER COVER
$975.00

Part#: 171045 Qty: 1$975.00

50162861216
SCREW
$0.95

Part#: 16286121 Qty: 6$0.95

511850291
RING -Thickness mm. 3,30-

Part#: 185029 Qty: 1

511850331
RING -Thickness mm. 2,95- -Possible fitting-

Part#: 185033 Qty: 1

511850341
RING -Thickness mm. 2,60- -Possible fitting-

Part#: 185034 Qty: 1

521339886
NUT

Part#: 133988 Qty: 6

531274976
WASHER
$0.25

Part#: 127497 Qty: 6$0.25

54144966246
WASHER

Part#: 14496624 Qty: 6

551840082
SCREW -Not as spare part- -Replaced by 16297424-

Part#: 184008 Qty: 2

55162974242
SCREW

Part#: 16297424 Qty: 2

561628822110
SCREW

Part#: 16288221 Qty: 10

57144609811
O.R. GASKET
$9.65

Part#: 14460981 Qty: 1$9.65

58152138341
SCREW

Part#: 15213834 Qty: 1

591040301
NUT
$0.48

Part#: 104030 Qty: 1$0.48

601253222
WASHER

Part#: 125322 Qty: 2

61144965244
WASHER
$0.17

Part#: 14496524 Qty: 4$0.17

621857211
PLUG -Not for F1-
$4.55

Part#: 185721 Qty: 1$4.55

63144534811
O.R. GASKET -Not for F1-

Part#: 14453481 Qty: 1

64109022241
SCREW -Not for F1-
$0.95

Part#: 10902224 Qty: 1$0.95

65111943771
WASHER -Not for F1-

Part#: 11194377 Qty: 1

66679123001
ANTI-HEAT SHIELD -Valid for racing exhaust version- -Optional
$91.77

Part#: 67912300 Qty: 1$91.77

67679124001
BRACKET FOR CABLES SUPPORT -Valid for racing exhaust version- -Optional

Part#: 67912400 Qty: 1

68109776242
SCREW -Valid for racing exhaust version- -Optional-

Part#: 10977624 Qty: 2

69144469242
WASHER -Valid for racing exhaust version- -Optional-

Part#: 14446924 Qty: 2
