Ferrari Philadelphia Parts

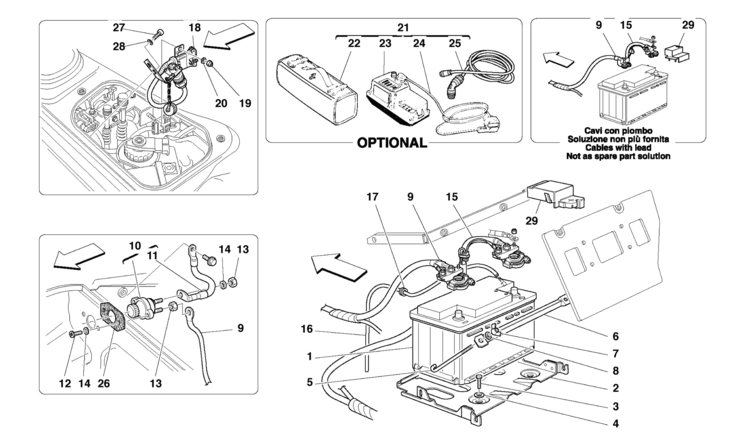

Table 54

Table 54 - BATTERY

Ref.Part#Qty.DescriptionPrice
11688521
BATTERY 12V TYPE VR760
$409.81

Part#: 168852 Qty: 1$409.81

2655215001
BATTERY BIN
$270.92

Part#: 65521500 Qty: 1$270.92

3109021243
SCREW
$0.65

Part#: 10902124 Qty: 3$0.65

4126477013
WASHER

Part#: 12647701 Qty: 3

5650710002
TIE ROD
$12.50

Part#: 65071000 Qty: 2$12.50

6650711001
BRACKET

Part#: 65071100 Qty: 1

71027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

8144993242
WASHER

Part#: 14499324 Qty: 2

91779111
DASHBOARD CONNECTION CABLES -Valid till Ass. Nr. 34124- -Not for GD- -Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004-

Part#: 177911 Qty: 1

91802061
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 34125 and till Ass. Nr. 36994- -Not for GD- -Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004-

Part#: 180206 Qty: 1

91791941
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 36995 and till Ass. Nr. 41813- -Not for GD- -Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004-

Part#: 179194 Qty: 1

91888971
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 41814 till Ass. Nr. 46967- -Not for GD- -Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004-

Part#: 188897 Qty: 1

91953531
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 46968- -Not for GD- -Not as spare part- -Replaced by 198552-

Part#: 195353 Qty: 1

91985521
DASHBOARD CONNECTION CABLES -Not for GD-

Part#: 198552 Qty: 1

91802071
DASHBOARD CONNECTION CABLES -Valid till Ass. Nr. 36945- -Valid for GD-

Part#: 180207 Qty: 1

91813231
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 36946 and till Ass. Nr. 40324- -Valid for GD-

Part#: 181323 Qty: 1

91865221
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 40325 and till Ass. Nr. 41709- -Valid for GD-

Part#: 186522 Qty: 1

91892341
DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 41710- -Valid for GD- -Not as spare part- -Replaced by 198553-

Part#: 189234 Qty: 1

91985531
DASHBOARD CONNECTION CABLES -Not for GD-

Part#: 198553 Qty: 1

101396071
CUT-OUT SWITCH ASSEMBLY

Part#: 139607 Qty: 1

111728921
GROUND CABLE -Not as spare part- -Replaced by 188056-

Part#: 172892 Qty: 1

111880561
GROUND CABLE

Part#: 188056 Qty: 1

12132724722
SCREW

Part#: 13272472 Qty: 2

13107219112
NUT

Part#: 10721911 Qty: 2

14144962774
WASHER
$0.84

Part#: 14496277 Qty: 4$0.84

151779131
CABLES FOR R.H. REAR TUNNEL CONNECTION -Not for USA MY 2000,2001,2002,2003 and CDN MY 2000,2001,2002,2003- -Not as spare part- -Replaced by 198554-

Part#: 177913 Qty: 1

151985541
CABLES FOR R.H. REAR TUNNEL CONNECTION -Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004-

Part#: 198554 Qty: 1

151822001
CABLES FOR R.H. REAR TUNNEL CONNECTION -Valid for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004- -Not as spare part- -Replaced by 198555-

Part#: 182200 Qty: 1

151985551
CABLES FOR R.H. REAR TUNNEL CONNECTION -Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004-

Part#: 198555 Qty: 1

161810561
BATTERY VENT PIPE

Part#: 181056 Qty: 1

17103962801
CABLE BUSHING

Part#: 10396280 Qty: 1

181785661
BATTERY CHARGING CONNECTION CABLE -Optional- -Valid till Ass. Nr. 43439-

Part#: 178566 Qty: 1

181845851
BATTERY CHARGING CONNECTION CABLE -Optional- -Valid from Ass. Nr. 43440- -Not as spare part- -Replaced by 200857-

Part#: 184585 Qty: 1

182008571
BATTERY CHARGING CONNECTION CABLE -Optional- -Valid from Ass. Nr. 43440-
$284.80

Part#: 200857 Qty: 1$284.80

191027411
NUT -Optional-
$0.75

Part#: 102741 Qty: 1$0.75

20105194241
WASHER -Optional-
$0.39

Part#: 10519424 Qty: 1$0.39

211786821
BATTERY CHARGER KIT -Not for USA, CDN, J, GB, Hong Kong and AUS- -Optional-

Part#: 178682 Qty: 1

211786831
BATTERY CHARGER KIT -Valid for USA, CDN and J- -Optional-

Part#: 178683 Qty: 1

211786851
BATTERY CHARGER KIT -Valid for GB and Hong Kong- -Optional-

Part#: 178685 Qty: 1

211786841
BATTERY CHARGER KIT -Valid for AUS- -Optional-

Part#: 178684 Qty: 1

22656992001
BATTERY BAG CASE -Optional-

Part#: 65699200 Qty: 1

231777911
BATTERY CHARGER -230V- -Not for USA, CDN and J- -Optional-

Part#: 177791 Qty: 1

231777921
BATTERY CHARGER -110V- -Not for USA, CDN and J- -Optional-

Part#: 177792 Qty: 1

241777941
POWER SUPPLY CABLE -Not for USA, CDN, J, GB, Hong Kong and AUS- -Optional-

Part#: 177794 Qty: 1

241777951
POWER SUPPLY CABLE -Valid for USA, CDN and J- -Optional-

Part#: 177795 Qty: 1

241782941
POWER SUPPLY CABLE -Valid for GB and Hong Kong- -Optional-

Part#: 178294 Qty: 1

241777961
POWER SUPPLY CABLE -Valid for AUS- -Optional-

Part#: 177796 Qty: 1

251786761
CABLE WITH CONNECTOR -Optional-

Part#: 178676 Qty: 1

26660799001
GASKET

Part#: 66079900 Qty: 1

27109022241
SCREW
$0.95

Part#: 10902224 Qty: 1$0.95

28126444241
WASHER
$0.50

Part#: 12644424 Qty: 1$0.50

291722071
PROTECTION COVER -Not as spare part- -Replaced by 185418-

Part#: 172207 Qty: 1

291854181
PROTECTION COVER

Part#: 185418 Qty: 1
