Ferrari Philadelphia Parts

Table 129

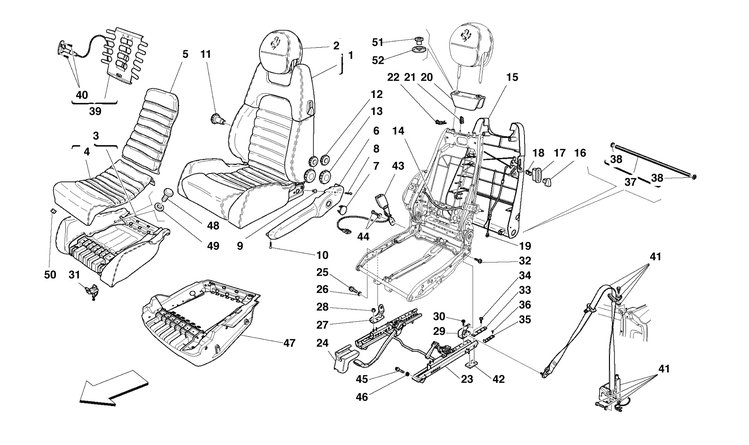

Table 129 - MANUAL SEAT - SAFETY BELTS

Ref.Part#Qty.DescriptionPrice
1655012..1
COMPLETE PILOT SEAT MANUAL -Not for GD-

Part#: 655012.. Qty: 1

1659356..1
COMPLETE PILOT SEAT MANUAL -Not for GD- -DAYTONA- -Optional-

Part#: 659356.. Qty: 1

1658445..1
COMPLETE PILOT SEAT MANUAL -Valid for GD-

Part#: 658445.. Qty: 1

1659458..1
COMPLETE PILOT SEAT MANUAL -Valid for GD- -DAYTONA- -Optional-

Part#: 659458.. Qty: 1

1655011..1
COMPLETE PASSENGER SEAT MANUAL -Not for GD- -With adjusting lombar-

Part#: 655011.. Qty: 1

1664820..1
COMPLETE PASSENGER SEAT MANUAL -Not for GD- -Without lombar adjusting-

Part#: 664820.. Qty: 1

1664822..1
COMPLETE PASSENGER SEAT MANUAL -Not for GD- -DAYTONA- -Optional-

Part#: 664822.. Qty: 1

1658444..1
COMPLETE PASSENGER SEAT MANUAL -Valid for GD- -With adjusting lombar-

Part#: 658444.. Qty: 1

1664824..1
COMPLETE PASSENGER SEAT MANUAL -Valid for GD- -Without lombar adjusting-

Part#: 664824.. Qty: 1

1664827..1
COMPLETE PASSENGER SEAT MANUAL -Valid for GD- -DAYTONA- -Optional-

Part#: 664827.. Qty: 1

1663262..2
SEAT BACK LINING

Part#: 663262.. Qty: 2

2659734..2
COMPLETE HEAD-REST

Part#: 659734.. Qty: 2

3663258..2
COMPLETE CUSHION

Part#: 663258.. Qty: 2

3674114..2
COMPLETE CUSHION -DAYTONA- -Optional-

Part#: 674114.. Qty: 2

3671103..2
L.H. LATERAL CUSHION LINING

Part#: 671103.. Qty: 2

3671105..2
R.H. LATERAL CUSHION LINING-

Part#: 671105.. Qty: 2

4663257..2
CENTRAL CUSHION

Part#: 663257.. Qty: 2

4672591..2
CENTRAL CUSHION -DAYTONA- -Optional-

Part#: 672591.. Qty: 2

5663259..2
CENTRAL SEAT BACK

Part#: 663259.. Qty: 2

5672592..2
CENTRAL SEAT BACK -DAYTONA- -Optional-

Part#: 672592.. Qty: 2

6663251..1
L.H. OUTER COVER SEAT

Part#: 663251.. Qty: 1

6663250..1
R.H. OUTER COVER SEAT

Part#: 663250.. Qty: 1

7663249..2
COMPLETE PLUG

Part#: 663249.. Qty: 2

8663705002
SCREW

Part#: 66370500 Qty: 2

9663252002
NUT SCREW

Part#: 66325200 Qty: 2

10663706002
SCREW

Part#: 66370600 Qty: 2

11663256002
SIDE ADJUSTING KNOB

Part#: 66325600 Qty: 2

12663255002
LUMBAR ADJUSTING KNOB

Part#: 66325500 Qty: 2

13663253002
SEAT BACK ADJUSTING KNOB
$230.56

Part#: 66325300 Qty: 2$230.56

14663260002
SEAT BACK SIDE BOWDEN CABLE

Part#: 66326000 Qty: 2

14663261002
BOWDEN CABLE SHEATH

Part#: 66326100 Qty: 2

15663241002
SEAT BACK COVERING

Part#: 66324100 Qty: 2

16663245004
SEAT RELEASE LEVER
$33.42

Part#: 66324500 Qty: 4$33.42

17663244004
PLATE

Part#: 66324400 Qty: 4

18663243004
CLIP

Part#: 66324300 Qty: 4

19663242004
SEAT RELEASE CABLE

Part#: 66324200 Qty: 4

20663248..2
COMPLETE SADDLE

Part#: 663248.. Qty: 2

21663247004
CLIP

Part#: 66324700 Qty: 4

22663702002
L.H. CLIP

Part#: 66370200 Qty: 2

22663246002
R.H. CLIP

Part#: 66324600 Qty: 2

23663239001
COMPLETE L.H. SEAT GUIDE

Part#: 66323900 Qty: 1

23663238001
COMPLETE R.H. SEAT GUIDE
$1209.74

Part#: 66323800 Qty: 1$1209.74

24659221001
L.H. GUIDE SHIELD -R.h. seat-
$9.88

Part#: 65922100 Qty: 1$9.88

24663085001
R.H. GUIDE SHIELD -R.h. seat-

Part#: 66308500 Qty: 1

24659220001
R.H. GUIDE SHIELD -L.h. seat-
$9.88

Part#: 65922000 Qty: 1$9.88

24663084001
L.H. GUIDE SHIELD -L.h. seat-

Part#: 66308400 Qty: 1

25663275008
COMPLETE SCREW
$3.39

Part#: 66327500 Qty: 8$3.39

26663276004
FRONT FIXING BUSHING

Part#: 66327600 Qty: 4

26663277004
REAR FIXING BUSHING

Part#: 66327700 Qty: 4

27663232001
L.H. FRONT ADAPTER

Part#: 66323200 Qty: 1

27663231001
R.H. FRONT ADAPTER

Part#: 66323100 Qty: 1

28663729008
NUT

Part#: 66372900 Qty: 8

29663234001
L.H. BRACKET

Part#: 66323400 Qty: 1

29663233001
R.H. BRACKET

Part#: 66323300 Qty: 1

30663271008
SCREW
$1.75

Part#: 66327100 Qty: 8$1.75

31663240004
CUSHION FIXING CLIP

Part#: 66324000 Qty: 4

32663279008
SCREW
$1.25

Part#: 66327900 Qty: 8$1.25

33663235004
UPPER PLATE

Part#: 66323500 Qty: 4

34663271004
SCREW
$1.75

Part#: 66327100 Qty: 4$1.75

35663236004
LOWER PLATE

Part#: 66323600 Qty: 4

36663237004
CLIP

Part#: 66323700 Qty: 4

37663263002
COMPLETE UNION BAR

Part#: 66326300 Qty: 2

38663287004
FIXING RING

Part#: 66328700 Qty: 4

39663298001
R.H. MANUAL LOMBAR SYSTEM

Part#: 66329800 Qty: 1

39663703001
L.H. MANUAL LOMBAR SYSTEM

Part#: 66370300 Qty: 1

40663299004
SCREW

Part#: 66329900 Qty: 4

41657904001
COMPLETE L.H. SAFETY BELTS -Not for USA and CDN-

Part#: 65790400 Qty: 1

41661567001
COMPLETE L.H. SAFETY BELTS -Valid for USA and CDN-

Part#: 66156700 Qty: 1

41657903001
COMPLETE R.H. SAFETY BELTS -Not for USA and CDN-

Part#: 65790300 Qty: 1

41661566001
COMPLETE R.H. SAFETY BELTS -Valid for USA and CDN-

Part#: 66156600 Qty: 1

421661684
REAR SMALL PLATE

Part#: 166168 Qty: 4

43659246001
PILOT SIDE BUCKLE BRANCH
$222.43

Part#: 65924600 Qty: 1$222.43

43656291001
PASSENGER SIDE BUCKLE BRANCH
$343.58

Part#: 65629100 Qty: 1$343.58

44659114002
SCREW -Not as spare part- -Replaced by 68636200-

Part#: 65911400 Qty: 2

44686362002
SCREW
$1.17

Part#: 68636200 Qty: 2$1.17

45659175004
SCREW
$3.50

Part#: 65917500 Qty: 4$3.50

46659176004
WASHER

Part#: 65917600 Qty: 4

47674175002
CUSHION END PLATE

Part#: 67417500 Qty: 2

486728250016
CLIP

Part#: 67282500 Qty: 16

496728260016
WASHER

Part#: 67282600 Qty: 16

50672833004
CLIP

Part#: 67283300 Qty: 4

51640254004
BUSHING

Part#: 64025400 Qty: 4

52640255004
WASHER

Part#: 64025500 Qty: 4
